Patterns and genomic correlates of PD-L1 expression in patients with biliary tract cancers

Introduction

Biliary tract cancer (BTC) is a malignancy derived from the epithelial cells lining the biliary tree (1). In the United States, BTC accounts for 2% of all new cancer diagnoses and the incidence continues to rise (2-5). In the last four decades, the incidence rates in US of intrahepatic BTC have increased by 165% (2-6). Unfortunately, BTC is a lethal malignancy and often presents in advanced stages. Treatment options are limited and gemcitabine/cisplatin remains the standard therapy with improved median overall survival (mOS) (11.7 vs. 8.1 months) and median progression-free survival (mPFS) (8.0 vs. 5.0 months) compared to gemcitabine alone (7). Given these outcomes, there is a dire need for novel, more effective and personalized treatment strategies.

BTCs can be split into 4 subtypes based on their location, classified as intrahepatic, extrahepatic (hilar and distal) cholangiocarcinoma, and gallbladder cancer (GBC). These subtypes now have been further characterized by molecular/genomic profiling demonstrating significant differences among these subtypes (8-11). These molecular aberrations include alterations in IDH1/2, FGFR2, PIK3CA, ERRB2, KRAS, and BRAF genes. Clinical trials investigating novel agents targeting a variety of such alterations are showing promise (12-15).

Furthermore, chronic inflammation plays an important role in the carcinogenesis of BTC, highlighting the immune system’s role in this disease and in the potential for immunotherapy as a therapeutic option for patients with BTC. However, limited information is available regarding the immune microenvironment and the role immunotherapy plays in patients with BTC.

Programmed death ligand-1 (PD-L1) and programmed death-1 (PD-1) expression has been shown to be associated with a response to immunotherapy in a number of malignancies. This relationship is not definitive in predicting response to therapeutic PD-1 or PD-L1 blockade, but provides a rationale to study this further in patients with cholangiocarcinoma. A limited cohort of studies have documented high expression of PD-1 and PD-L1 in BTC cell lines and mouse models of BTC, suggesting that these immune checkpoint proteins may play a role in tumor progression (16).

Thus far studies targeting the PD-1/PD-L1 immune checkpoints have shown modest results in BTC. The KEYNOTE-028 and KEYNOTE-158 trials are the biggest cohorts to date utilizing immunotherapy, more specifically the PD-1 antibody, pembrolizumab (17). Both trials studied single agent pembrolizumab in patients with advanced BTC which progressed on standard line therapies. KEYNOTE-028 included 24 patients, all PD-L1 positive (defined as membranous PD-L1 expression in ≥1% of tumor and associated inflammatory cells or positive staining stroma) and showed an overall response rate (ORR) of 13%, mPFS 1.8 months, and mOS 6.2 months. KEYNOTE-158 evaluated 104 BTC patients, 58.6% were positive for PD-L1. The ORR was 5.8% (one of the responses was in a PD-L1 negative tumor) while mPFS and mOS was 2 and 7.4 months, respectively. Additionally a phase II study utilizing another PD-1 antibody, nivolumab, was studied in 54 patients with advanced BTC after progression on standard line therapy (18). The ORR was 22% with associated mPFS and mOS of 3.9 and 14.2 months, respectively. PD-L1 status will be reported at a later date.

Kelley and colleagues reported on a trial of pembrolizumab plus granulocyte macrophage colony stimulating factor (GM-CSF) in patients with advanced BTC (19). A total of 27 patients with heavily pre-treated intrahepatic/extra-hepatic BTC (74%/26%) were enrolled. The vast majority of patients (70%) had mismatch repair stable (MSS) disease; 41% of patients had low tumor mutation burden (TMB) and 41% had unknown TMB status. Confirmed partial response rate was 19% [1 microsatellite instability high (MSI-H), 4 MSS], with 33% of patients having maintained a partial response or stable disease for more than 6 months. Median OS had not yet been reached at the time of data presentation. PD-L1 positive disease (defined as PD-L1 staining in ≥1% of cells in tumor nests) was found in 30% of patients’ pre-treatment, but was not associated with improved overall response or progression-free survival.

Ongoing studies in BTC are investigating different strategies to augment the immune system by a number of mechanisms, including CTLA-4 and PD-1 blockade (NCT02834013), PD-L1 and MEK inhibition (NCT03201458), tyrosine kinase inhibitors with PD-1 blockade (NCT03797326), histone deacetylase inhibitors with PD-L1 blockade (NCT03257761). Our work may be relevant to these new combinatorial strategies as information regarding the association of molecular alterations with PD-1/PD-L1 expression may predict for benefit from immune stimulation.

The aims of this study were the following: (I) to evaluate the expression of PD-1 and PD-L1 in a large cohort of samples of BTCs collected from multiple locations, and (II) to assess for associations between PD-1/PD-L1 expression status and any particular genomic alterations. The latter could serve as a basis for further work on potential combinatorial, personalized therapies.

Methods

Patients and multiplatform molecular profiling

This study includes data from patients with BTC assayed by at least 1 platform [immunohistochemistry (IHC), in situ hybridization (ISH), and next-generation sequencing (NGS)] by Caris Life Sciences. All patients had to have reported PD-L1 expression by IHC for inclusion into the study. Formalin-fixed paraffin-embedded (FFPE) tumor samples were sent by treating physicians for analysis. All tumor samples were verified by board-certified pathologists for sufficient tumor content, specimen quality, and confirmation of diagnosis. The testing performed for each patient have varied based on the physician’s request, tissue availability, and technical requirements for data to be reported.

Validation and institutional review board

All methods utilized in this study were clinically validated to at least Clinical Laboratory Improvement Amendments, College of American Pathologists, and International Organization for Standardization (ISO) 15189. This retrospective analysis utilized previously collected de-identified data created under the Caris honest broker policy and followed consultation with the Western Institutional Review Board (IRB), which is the IRB of record for Caris Life Sciences. The project was deemed exempt from IRB oversight and consent requirements were waived.

NGS

Specimens were profiled using massively parallel NGS sequencing using the SureSelect XT enrichment kit of biotinylated RNA probes to capture DNA fragments from the exons of 592 genes (Agilent, Santa Clara, CA). Enriched libraries were the sequenced on the Illumina NextSeq instrument (Illumina, San Diego, CA). All variants reported are detected with >99% confidence (based on mutation frequency and amplicon coverage) with an average sequencing depth of >1,000 X. Copy number alterations (CNA) were also explored on samples by NGS for 442 genes. CNAs were calculated by comparing the depth of sequencing of genomic loci to a diploid control as well as the known performance of these genomic loci. Gains ≥6 copies were considered amplified.

Tumor mutational burden (TMB) was calculated by counting nonsynonymous missense mutations and excluding common germline variants. TMB was considered high if ≥17 mutations (mut)/megabase (Mb) were detected. The threshold for determining high TMB (defined as ≥17 mut/Mb) was established by comparing TMB with microsatellite instability (MSI) by fragment analysis in colorectal cancer cases; based on reports of TMB having high concordance with MSI in colorectal cancer (20). MSI was calculated from the NGS data by direct analysis of short tandem repeat tracts in the target regions of sequenced genes. The count only included alterations that resulted in increases or decreases in the number of repeats; MSI-H was defined as ≥46 altered microsatellite loci (the threshold was established by comparing NGS to the PCR-based microsatellite fragments analysis results from ~2,100 cases) (20).

IHC

IHC analysis of 24 proteins was performed on FFPE tumor samples using commercially available detection kits and automated staining techniques (Benchmark XT; Ventana Medical Systems, Tucson, AZ; and Autostainer-Link 48; Dako, Carpinteria, CA). Antibody clones used are provided in Supplementary Methods. Appropriate positive and negative controls were used for all proteins tested. IHCs were scored manually by board-certified pathologists using predefined thresholds consisting of intensity of staining (0, 1+, 2+, and 3+) and percentage of tumor cells that stained positive. Thresholds are derived from peer-reviewed clinical literature, which associates response to treatment to biomarker status (21,22). Tests are interpreted as positive or negative, and the expression data are represented as a distribution (percentage) of positive or negative results observed in the cohort tested. PD-1 [NAT105 antibody; ≥1+ staining of tumor infiltrating lymphocytes (TILs) considered positive] and PD-L1 (SP142 antibody; ≥2+ and ≥5% staining in tumor cells considered positive) status was tested in all samples.

ISH

Gene CNAs of cMET, EGFR, HER2, PIK3CA, and TOP2A were analyzed in a subset of patients by DNA ISH using fluorescence ISH and/or chromogenic ISH probes as part of the automated staining techniques (Benchmark XT; Ventana Medical Systems) and automated imaging systems (BioView, Billerica, MA). Cutoffs are provided in the Table S1. The ratio of gene to peri-centromeric regions of chromosome 7 (EGFR, cMET), 17 (HER2, TOP2A), and 3 (PIK3CA) were used to determine increases in gene copy number. Ratios higher than the defined cutoff were considered positive and ratios less than defined cutoff were considered negative.

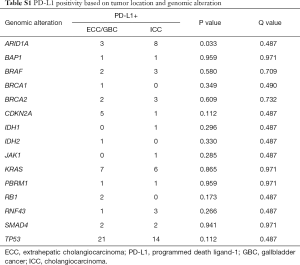

Table S1 PD-L1 positivity based on tumor location and genomic alteration
Full table

Statistical methods

Demographic and genomic predictors were compared across BTC subtypes and between PD-L1 positive and negative groups. Numeric predictors were assessed using t-tests. Categorical predictors were assessed using Chi-squared test or Fisher’s exact test where appropriate. Adjusted P-values were calculated using the Benjamini and Hochberg method. All statistical tests were two-sided with alpha level set at 0.05 for statistical significance. To predict the TMB threshold that would discriminate PD-L1 positive from PD-L1 negative cases, ROC curve analysis was generated using the pROC package in Rusing the Youden’s J statistic (23).

Results

Patient demographics

Samples from a total of 652 patients with BTC were included in this study, including 77 extrahepatic cholangiocarcinoma (ECC), 203 GBC, and 372 intrahepatic cholangiocarcinoma (ICC). Demographics are seen in Table 1. Females represented 38%, 68%, and 52% of the populations, respectively. Median age of patients was 67 years old (range, 34–88 years old), 65 years old (range, 33–85 years old), and 64.5 years old (range, 28–88 years old), respectively. While increasing age and female gender appear more associated with ECC as compared to ICC, the differences did not reach statistical significance (P=0.078 and P=0.067, respectively).

Table 1 Demographics characteristics for participants included in the study
Full table

PD-L1 and PD-1 positivity

PD-L1 results, detailed in Table 2, were evaluable for 77 ECC, 203 GBC, and 372 ICC. PD-L1 expression (on tumor cells) was 5%, 12%, and 7%, respectively. This led to an overall PD-L1 positive rate of 8.6% (56/652). PD-1 expression (on TILs) was present in 43%, 55%, and 53%, respectively. This led to an overall PD-1 positive rate of 49% (36/73). There was no correlation between PD-L1 status and primary tumor location (P=0.203) or gender (P=0.780), however the average age of PD-L1 negative patients was statistically older than PD-L1 positives (mean 64.2 vs. 60.7 years; P=0.046).

Table 2 Rates of PD-1 and PD-L1 positivity in BTCs
Full table

Gene mutations

The prevalence of genomic mutations is described in Table 3. Mutations with the highest prevalence among the group of BTCs as a whole included: TP53 (n=255, 41.8%), ARID1A (n=106, 37.3%), KRAS (n=109, 17.6%), CDKN2A (n=50, 8.6%), IDH1 (n=50, 8.1%), SMAD4 (n=46, 7.4%), BAP1 (n=42, 6.8%), and PIK3CA (n=35, 5.7%). A total of nine FGFR2 fusions, with various binding partners, were identified but none were detected in a PD-L1 positive tumor. Fusions were also detected involving FGFR3 and BRAF.

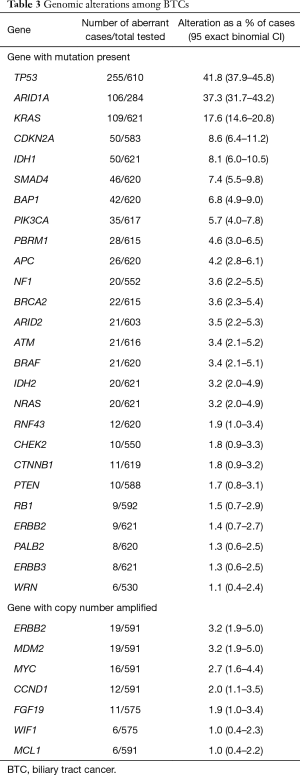

Table 3 Genomic alterations among BTCs
Full table

TMB

Overall the mean TMB for the entire cohort was 7.2 mutations (mut)/megabase (Mb). Mean TMB in the PD-L1 positive group was statistically significantly higher (10 vs. 6.9 mut/Mb in the PD-L1 negative group (P=0.002). This pattern held true across ICC and ECC/GBC location types. In the ICC group, PD-L1 positive samples had a TMB mean of 10.7 mut/Mb as compared to mean of 6.5 mut/Mb (P=0.12) in PD-L1 negative tumors. In extrahepatic and gallbladder subtypes together, TMB mean was 9.4 mut/Mb in PD-L1 positive tumors as compared to a mean of 7.4 mut/Mb (P=0.06) in PD-L1 negative tumors. A ROC curve was generated using TMB as a predictor for PD-L1 status (Figure S1). The best TMB threshold to differentiate PD-L1 positive from negative cases was 6.5 mut/Mb. Using this threshold generated an area under the curve (AUC) of 0.639, which corresponded to 58.5% sensitivity and 62.5% specificity.

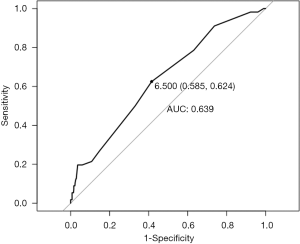

Figure S1 ROC curve analysis for TMB and PD-L1 expression. Evaluation of the threshold at which TMB can be used to predict PD-L1 status is calculated using Youden’s J statistic. In this study, the best threshold to differentiate PD-L1 status corresponded to a TMB value of 6.5, which gave a specificity of 58.5%, and a sensitivity of 62.4%. PD-L1, programmed death ligand-1; TMB, tumor mutational burden.

PD-L1 and gene mutation associations

The rate of clinically relevant and/or potentially targetable mutations in the samples with PD-L1 positivity (details based on location noted in Table S1) were: ARID1A (11/22, 50%), ATM (2/54, 3.7%), BAP1 (2/56, 3.6%), BRAF [5/56 (4 V600E, 1 D594N), 8.9%], BRCA1 (1/54, 1.9%), BRCA2 (5/55, 9.1%), CDKN2A (6/51, 11.8%), ERBB2 (1/56, 1.8%), IDH1 (1/56, 1.8%), IDH2 (1/56, 1.8%), JAK1 (1/53, 1.9%), KRAS (13/56, 23.2%), MAP2K (2/56, 3.6%), MSH2 (1/53, 1.9%), NF1 (4/51, 7.8%), NRAS (3/56, 5.4%), PALB2 (1/55, 1.8%), PIK3CA (2/53, 3.8%), RB1 (2/53, 3.8%), and TP53 (35/56, 62.5%). Note that the denominator represents PD-L1 positive samples. Also note that 4 of the mutations that statistically correlated with PD-L1 expression, detailed in Table 4, were: TP53 (P=0.001), BRCA2 (P=0.02), BRAF (P=0.01), GNAS (P=0.004), SMARCB1 (P<0.001), and RNF43 (P=0.003). Additionally, both the genes that encode for the PDL1 and PDL2 proteins, CD274 and PDCD1LG2, were both amplified exclusively in PD-L1 expressing cohort (P<0.001 for both). Among additional biomarkers tested, TOP2A expression (IHC) (P=0.02), TMB high (≥17 mut/Mb) [10.7% (6/56); P=0.001), and MSI-H status [7.1% (4/56); P=0.001] were all shown to be statistically correlated with PD-L1 positivity.

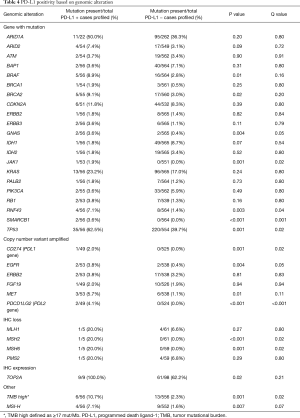

Table 4 PD-L1 positivity based on genomic alteration
Full table

Discussion

Immunotherapy in the form of checkpoint inhibitors (i.e., anti-PD-1/PD-L1 antibodies) alone and in combination with chemotherapy, other immunotherapies, as well as targeted therapies are currently being employed in a variety of malignancies. An observation and rationale for why immunotherapy may be effective in BTC is based on the observation that tumor infiltration by the cellular mediators of the adaptive immune response such as CD8+ and CD4+ cells is generally correlated with improved outcomes in BTC (24,25). This improved prognosis suggests that CD4+ and CD8+ T cells infiltrating cholangiocarcinoma may be functioning to delay tumor progression, thus harnessing and augmenting this T-cell response may provide clinical benefit. Conversely, there is data that PD-1 expression on TILs contributes to an immunosuppressive environment (26). In our analysis we found that of the samples tested 49% (36/73) had TILs considered PD-1 positive. Checkpoint inhibition, namely PD-1 blockade, in cholangiocarcinoma has been largely disappointing. Data from the KEYNOTE-158, KEYNOTE-028, and nivolumab studies represents the largest cohort of patients with BTC treated with PD-1 antibodies and the results were modest at best (see Introduction).

It remains unclear how the adaptive immune resistance pathway plays a role in BTC and whether these novel immunotherapies might eventually be effective in patients with BTC. Several immunotherapeutic strategies targeting BTC have been or are currently being investigated such as peptide and dendritic cell vaccines targeting overexpressed tumor antigens, cytokine therapies, adoptive T-cell therapy, and checkpoint inhibitors (27). In general, there have been hints of clinical activity in a small number of patients

Further, there are limited data evaluating PD-1 and PD-L1 expression in small cohorts of patients’ BTC tumor samples, and these studies report high positivity rates. A study of 31 resected intrahepatic BTCs in China showed that 100% of cases demonstrated PD-L1 positivity (28). This study evaluated PD-L1 staining of tumor cells and intensity of overall staining over 5 high-powered magnification fields at the “hot spot in a cancer area”. Staining intensity was graded as: negative staining, light (<25% cells stained), moderate (25–50% cells stained), or intense (>50% stained cells). PD-L1 sensitivity, defined as at least mild staining on plasma membrane or cytoplasm of tumor cells, was noted in all 31 ICC cases.

Another study looking at 70 specimens of extrahepatic BTCs revealed a PD-L1 positivity of 43% (29). This study showed that PD-L1 positivity (defined as IHC ≥3+ staining) was associated with a worse prognosis on multivariate analysis. Fontugne et al. looked at PD-L1 expression on tumor cells in perihilar and intrahepatic BTC, with positivity defined as ≥5% staining (30). They noted a PDL-L1 positivity rate of only 9%, although this number increased to 46% when including PD-L1 positive surrounding inflammatory cells. Further, Gani et al. examined PD-L1 (monoclonal antibody 5H1; ≥5% staining considered positive) specifically on the neoplastic cells of intrahepatic BTC from 54 patients undergoing surgery at a single center, revealing a 72% PD-L1positivity rate (31). Our study shows strikingly different results in the largest cohort thus far reported in the literature evaluating PD-L1 staining, with PD-L1 positivity in 12% of GBC, 7% of ICC, and 5% of ECC.

In recent years, genomic profiling of BTCs has revealed it to be a diverse and heterogeneous disease (8,9,11). The identification of molecular subtypes of this disease has led to some measures of success with particular targeted therapies in patients, particularly those with FGFR2 fusions, mutations in IDH1, BRAF, and amplifications of HER2 (12-15). As it relates to the study reported herein, we sought to explore whether certain genomic alterations were associated with increased PD-L1 positivity rates. This line of inquiry is novel in this disease and particularly relevant with genes involved in the DNA damage response (DDR). As such if a cell has a defect in its ability to repair DNA then mutations accumulate. This accumulation of mutations can be measured and referred to as the TMB, or tumor mutational load (TML), which is defined as the number of genetic variants per megabase of DNA. As more mutations are acquired, more neoantigens are expressed and a tumor that was previously undetectable by the immune system can now be potentially recognized and targeted immunologically. To help facilitate this anti-neoplastic immune activity, immune checkpoint inhibitors can be employed. The use poly (ADP) ribose polymerase (PARP) inhibitors combined with immunotherapy highlights the approach of exploiting DNA repair inhibition to augment the immune system. There are currently over 200 clinical trials of DDR targeting agents and immunotherapy across a multitude of malignancies (32). One such trial is a phase II study of the PARP inhibitor, rucaparib, in combination with nivolumab in patients with advanced BTCs (NCT03639935).

Of potential clinical significance, as related to the intersection of genomic alterations, specifically in DDR, and immunotherapy is our finding of a statistically significant increased frequency of BRCA2 mutations among PD-L1 positive BTCs. Along those lines there is recent data to suggest increased PD-L1 expression in gastroesophageal cancers with DDR mutations (33). There are ongoing clinical trials studying immunotherapy (i.e., checkpoint inhibitors) and PARP inhibition in patients with DDR deficiency (such as BRCA mutation) (NCT02657889, NCT02953457, NCT02571725).

We also reveal an increased frequency of PD-L1 expression (23%) in KRAS mutated BTC. This is one of the more frequent mutations present in BTC (34). Though KRAS is not directly targetable, MEK inhibition has emerged as a logical target given that KRAS mutation causes downstream dysregulation and activation of the Raf-MEK-ERK pathway. Additionally, there is evidence that MEK activity can lead to an immunosuppressive tumor microenvironment, in part, by suppressing transcription of MHC-1 components (35). MEK inhibition also upregulates tumor major histocompatibility complex-I expression and promotes intratumoral T-cell accumulation. Based on these principles, there is a clinical trial investigating the use of atezolizumab (PD-L1 antibody) +/− cobimetinib (MEK inhibitor) in BTC (NCT03201458) which has recently completed accrual.

Our data also reveal a statistically significant association between BRAF mutations and PD-L1 positivity. In a preclinical syngeneic mouse model using BRAF^V600E mutated melanoma cells, both dual and individual inhibition of BRAF and MEK resulted in increased T cell recruitment around the tumor. Additionally, BRAF inhibition was found to result in PD-L1 expression suggesting an adaptive immune resistance mechanism by effector T-cells. The combination of adoptive cell transfer (i.e., immunotherapy) along with BRAF/MEK inhibition in this same model resulted in superior antitumor activity (36). This set the stage for KEYNOTE-022 which confirmed the safety of pembrolizumab, dabrafenib, and trametinib for metastatic BRAF-mutated melanoma. This led to a phase II trial of the same name (NCT02130466) and two randomized placebo-controlled phase III trials testing BRAF/MEK inhibition +/− immunotherapy (NCT02908672, NCT02967692) studying this approach.

TMB is evolving as another surrogate marker for response to immunotherapy, outside of the traditional biomarkers for response to immunotherapy [e.g., microsatellite instability high (MSI-H), PD-L1 positivity]. The CheckMate-586 trial studied non-small cell lung cancer patients being treated with first-line nivolumab and ipilimumab. The study evaluated overall survival stratified by TMB as a secondary endpoint (37). The results revealed that patients with a TMB of ≥10 mut/Mb (assessed by Foundation One CDx) had an objective response rate of 44% as compared to 9–15% for TMB <10 mut/Mb. Additionally, the progression-free survival (PFS) was 7.1 months with TMB ≥10 mut/Mb as compared to 2.6 months with TMB <10 mut/Mb (38). Jain et al. reported on TMB in BTCs and found that 15% (n=9) of tumors were TMB high (defined as ≥20 mut/Mb) and 85% (n=51) were defined as TMB intermediate (defined as 6–19 mut/Mb) (39). Our analysis revealed an association of increased TMB with PD-L1 positivity, with a mean TMB of 10 mut/Mb in the PD-L1 positive group versus 6.9 mut/Mb in the PDL-1 negative group (P=0.002). Taking as a whole our findings suggest a correlation of PD-L1 and TMB which could have implications for treatment with checkpoint inhibitors (i.e., PD-1/PD-L1 inhibitors) in this subset of patients.

Limitations of our study include the retrospective nature of the analysis along with the lack of clinical data to correlate with molecular findings. Further, the clinical heterogeneity of the data is a limitation, such that some of the tissue samples were from primary tumor or others from metastatic lesions. Lastly, not all of the samples were able to be processed for mutational status, copy number variation, and/or IHC expression. For example, only 22 of the 56 PD-L1 positive cases were able to be analyzed for ARID1A mutations. This was secondary to the amount of tissue available.

Conclusions

In summary, we report on the largest cohort of BTCs to date an analysis of PD-L1 status, the association between PD-L1 positivity and particular genetic aberrations, and TMB status in BTC. Such associations have not previously been reported upon. PD-L1 expression on tumor cells was highest in patients with GBC followed by intrahepatic and ECC. Of the PD-L1 positive tumors (n=56) the most frequent genomic alterations include: TP53 (P=0.001), KRAS, ARID1A, CDK2NA, BRCA2 (P=0.02), BRAF (P=0.016), and RNF43 (P=0.04). Further, the presence of TMB high (defined as ≥17 mut/Mb) (P=0.001), MSI-H (P=0.007), and TOP2A IHC (P=0.02) expression showed a statistically significant increase in PD-L1 expression. Our hope is that these findings could help generate hypotheses to understand which subsets of cholangiocarcinoma could preferentially respond to immunotherapy, and to develop studies of regimens combining particular targeted therapies with immunotherapies.

Supplementary

IHC

IHC was performed on full FFPE sections of glass slides using commercially available detection kits and automated staining techniques optimized and validated per Clinical Laboratory Improvement Amendments (CLIA), College of American Pathologists (CAP), and International Organization for Standardization (ISO) requirements. Staining was scored for intensity (0: no staining; 1+: weak staining; 2+: moderate staining; 3+: strong staining) and staining percentage (0–100%). Results were categorized as positive or negative by defined thresholds specific to each marker based on published clinical literature that associates biomarker status with patient responses to therapeutic agents. A board-certified pathologist evaluated all IHC results independently. The following antibodies were evaluated: Androgen receptor (AR27), estrogen receptor (ER-SP1), human epidermal growth factor receptor 2 (Her2-4B5), DNA excision repair protein (ERCC1-8F1), O(6)-methylguanine-methyltransferase (MGMT-MT23.3), P-glycoprotein (PGP-C494), progesterone receptor (PR-1E2/100), phosphatase and tensin homolog (PTEN-6H2.1), ribonucleotide reductase M1 (RRM1-polyclonal), serum protein acidic and rich in cysteine (SPARC monoclonal-12251), serum protein acidic and rich in cysteine (SPARC polyclonal), topoisomerases 1 (TOPO1-1D6), topoisomerases 1 and 2α (TOPO2α-3 F6), thymidylate synthase (TS106/4H4B1), MET proto-oncogene, receptor tyrosine kinase (cMET-SP44), tubulin beta-3 chain (TUBB3-polyclonal), transducin-like enhancer of split 3 (TLE3-polyclonal), programmed cell death protein 1 (NAT105 antibody; ≥1+ staining of TILs considered positive), and programmed death-ligand 1 (PD-L1-SP142 on tumor cells). Expression data are represented as a distribution (percentage) of positive or negative results observed in the cohort tested.

Acknowledgments

The testing and molecular profiling was done by Caris Life Sciences.

Funding: The study was supported by National Cancer Institute (NCI) of the National Institutes of Health (NIH) award # NCI/NIH P50 CA210964 (to K Mody).

Footnote

Conflicts of Interest: K Mody—Research Support: Agios, Senwha Biosciences, Taiho, ArQule, AstraZeneca, Genentech, Incyte, Tracon Pharmaceuticals, Medimmune, Puma Biotechnology. Consulting: Astra Zeneca, Bayer, Celgene, Eisai, Exelixis, Ipsen, Merrimack, Vicus. M Saul and K Poorman—Employment: Caris Life Sciences. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The project was deemed exempt from IRB oversight and consent requirements were waived.
