Modified endoscopic full-thickness resection of gastric stromal tumor originating from the muscularis propria layer

Introduction

Gastric gastrointestinal stromal tumors (GISTs) are potentially malignant and are indicated for resection (1). With the development of several novel endoscopic closure methods and tools, endoscopic full-thickness resection (EFTR) is emerging as an option to resect GISTs originating from the muscularis propria layer (MP-GISTs) (2). However, EFTR is performed difficultly due to three challenges (3): (I) leakage of CO₂ limits luminal insufflation and endoscopic visualization, (II) insufficient operating space limits the ability to avoid and control serosal bleeding, and (III) inadequate exposure of cutting line increases the risk of abdominal organ injuries. Therefore, we developed a novel method of clip- and snare-assisted EFTR (also named as m-EFTR or chen-EFTR) to resect gastric MP-GISTs (Video 1).

Operative techniques

A 63-year-old woman underwent gastroscope and was determined to have a submucosal tumor (SMT) at the dorsal area of the junction of gastric fundus and body (Figure 1A). Endoscopic ultrasound revealed that the tumor originated from the muscularis propria layer and without lymph node metastasis (Figure 1B). Given the relatively advanced age of the patient, the potential adverse events of a surgical procedure, and the small size of tumor without lymph node metastasis, endoscopic submucosal dissection (ESD) with CO₂ insufflation was decided after discussed fully with patient and family members (1).

Figure 1 Endoscopic examination and resection of gastric stromal tumor originating from the forth layer. (A) Upper endoscopy showed a submucosal tumor at junction of gastric fundus and body; (B) the tumor originating from the muscularis propria layer, as shown by endoscopic ultrasound (EUS); (C) an occurred micro-perforation during dissection; (D) the defect after removing tumor completely; (E) the submucosal tumor was removed en bloc with a diameter of 1.0 cm; (F) the defect was closed completely with several clips and endoloop.

Expansion of submucosal layer was achieved initially by injecting a mixture of epinephrine and methylene blue mixed with hydroxyethyl starch solution (Injector Force Max; Olympus; Japan). The location of the tumor was marked using the retracted tip of the Dual-Knife (Olympus; Pennsylvania, USA). And then, the initial mucosal incision and sequent dissections were done with Dual-Knife (Olympus; Kuroishi-shi, Japan). As dissection continued, however, a micro-perforation was caused (Figure 1C). So, we changed to perform EFTR method, but the endoscopic visualization, exposure of cutting line, and operating space were extremely limited. Consequently, we developed a clip- and snare-assisted EFTR (also named as m-EFTR or chen-EFTR) (Video 1).

We firstly placed a clip (Resolution^TM clip; Boston Scientific; USA) to marginal mucosa of tumor. Secondly, we withdraw the gastroscope from stomach, and then tied a snare (Snare Master; Olympus; Japan) to the distal of the gastroscope. The snare was well positioned to be near the transparent-cap. After that, the gastroscope with the tied snare was reinserted smoothly into stomach. Finally, we freed the snare and then anchored it to the clip. We adequately exposed the cutting line and obtained sufficient operating space through repositioned the snare. Dissections were easily and safely performed (Figure 1D), and the tumor was completely detached from the gastric wall (Figure 1E). After extracted the tumor with the snare, the defect was closed completely with several clips and an endoloop (Figure 1F). We designed Figure 2 to delineate the key-steps of chen-EFTR technique. The key process of placing clip, anchoring snare, and dissecting tumor were displayed in Figure 2A,B,C,D. The key-steps of closure for defect were delineated in Figure 2E,F,G,H. Repeated abdomen radiography revealed no change of free intraperitoneal air. It is also noted that no postoperative pain or signs of local peritonitis was detected after patient returned to ward. Pathological examination of a H&E slide found that the tumor was composed of spindle cell (Figure 3A). Immunohistochemically, it was positive for hematopoietic progenitor cell antigen (CD34) (Figure 3B), c-KIT (CD117) (Figure 3C), and DOG1 (Figure 3D). The tumor was eventually confirmed as a gastric GIST. Pathological examination of H&E slides also showed a clearly complete resection margins following m-EFTR (also named as chen-EFTR) (Figure 4).

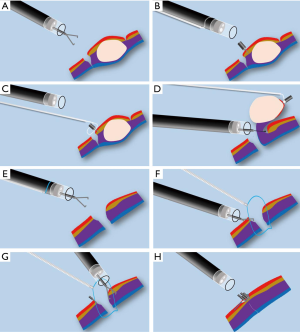

Figure 2 Schematic illustrations of m-EFTR (chen-EFTR). (A) A clip was inserted to stomach through working channel and was placed in marginal mucosa; (B) a snare which was tied in scope was inserted to stomach; (C) the snare was tied on the clip; (D) distinct endoscopic visualization, adequate exposure of cutting line and sufficient operating space was reached through repositioning snare; (E) a clip and a endoloop which was tied on scope was inserted into stomach together; (F) the endoloop was anchored on the normal mucosa with a clip; (G) clips were applied circumferentially; (H) the defect was closed completely after tied completely the endoloop.

Figure 3 Evidences of confirming the tumor as the GIST. Pathological examination of a H&E slide shows the spindle cell (A). Hematopoietic progenitor cell antigen (CD34) (B), c-KIT (CD117) (C), and DOG1 (D) were all indicated immunohistochemically to be positive. Magnification, ×50. GIST, gastrointestinal stromal tumor.

Figure 4 Pathological examination of H&E slides confirming a clearly complete resection margins following m-EFTR (×200). EFTR, endoscopic full-thickness resection.

A prescription of fasting and gastrointestinal decompression was made for three days. Usage of antibiotics and proton pump inhibitor (PPI) was prescribed for three days. Moreover, patient also received fluid replacement and nutritional support during hospitalization. The patient was instructed to try to drink after three days, and was discharged on postoperative day four. Repeated gastroscope examination was suggested to the patient after six months on discharge.

Comments

GISTs are one of the most common mesenchymal tumors of the alimentary tract. Evidence suggested that all GISTs have malignant potential regardless of size (4,5). Surgery with negative surgical margins is presently regarded as the standard resection for gastric GISTs (6). However, gastric GISTs with small size do not require lymphadenectomy or a generous resection margin due to rare lymph node metastasis and infiltrative growth patterns (7). Therefore, endoscopic complete resection with a microscopically negative margin should be considered preferably (8). Endoscopic removal has several advantages, such as an intact stomach after GISTs removal, avoidance of gastric dysmotility, a relatively short hospital stay, decreased sedation and analgesic requirement, relatively low cost, and fewer human resources required compared with surgery (2).

Some researchers and practitioners recommended submucosal tunneling endoscopic resection (STER) to resect the gastric MP-GISTs because the potential of STER in resecting esophageal SMTs or SMTs in the cardia (9). However, there are also some researchers and practitioners do not think that STER is unsuitable for gastric GISTs because a straight tunnel toward the tumor is sometimes difficultly created. Moreover, it also indicated a difficult to dissect the distal pole of the SMT with STER (1). Certainly, efforts to develop methods of resecting gastric GISTs were never ceased. With the development of various devices and methods to close the wall defect, EFTR is emerging as an alternative method for GISTs (10-12). However, some issues limited the widespread implementation of EFTR in gastric GISTs.

Firstly, poor endoscopic visualization will be encountered when a full-thickness incision was created, which makes difficult to exposure the cutting line. We therefore developed a clip-and-snare traction method to achieve sufficient operational space and inadequately exposure the cutting line inspired by the clip-and-thread traction method (13). It must be noted that more options of traction will be achieved due to great support property of snare. Moreover, the clip-and-snare traction can keep cutting line farther away from abdominal viscera and thus reduce the risk of accidental injury. More importantly, the clip with snare successfully prevented the tumor getting lost into the peritoneal cavity, and facilitated tumor retrieval from the stomach (13).

Secondly, risk of bleeding in the conventional EFTR procedures is high (14) especially if practitioners are encountering limited endoscopic visualization because vessel distribution in greater curvature is rich. It is important to note that vessels can be clearly and safely addressed with electrocoagulation beforehand when clip-and-snare traction method was used to achieve adequate exposure of cutting line. In fact, severe bleeding has not occurred in our case because the tumor was small (13).

Thirdly, complete closure of the defect after performing EFTR is also important. In our case, we used clip with endoloop to close defect because a relatively small defect was created. In fact, several methods have been developed to close defect after EFTR such as clip with endoloop (also termed as purse-string suturing) (15,16) and over-the-scope clip (OTSC) system (17). The purse-string suture is an effective and inexpensive method, and thus is widely used to close defect made by endoscopic surgeries. The OTSC is a relatively novel method to close defect. The potential of OTSC in closing defect has been established, however expensive cost and multiple bites for large defects limit the implementation (13). Beyond that, line-assisted complete closure (LACC) was also developed to close large mucosal defect (18). However, LACC is therefore recommended as an adjunct to repair a remnant hole after purse-string suture or OTSC closure because it is somewhat complicated and insecure for closure of a full-thickness gastric wall defect (1).

As has been said, we believe that this clip- and snare-assisted EFTR method (also named as m-EFTR or chen-EFTR) provide a new approach for resection of gastric MP-GISTs because it can achieve distinct endoscopic visualization, adequate exposure of cutting line and sufficient operating space.
