Prognostic value of splenic volume in hepatocellular carcinoma patients receiving transarterial chemoembolization

Introduction

Transarterial chemoembolization (TACE) is a recommended treatment with proven therapeutic efficacy and survival benefit for patients with unresectable hepatocellular carcinoma (HCC) (1). As most HCC lesions are developed on a background of cirrhosis of diverse etiologies, liver function status is a key determinant of patient survival in addition to tumor burden (2). In fact, liver dysfunction is the most common cause of post-TACE death (3). Unfortunately, injury of adjacent non-tumor liver is almost inevitable during TACE procedures, which further exacerbates the underlying compensatory capacity that may result in acute or chronic liver failure, and ultimately deteriorates the prognosis (3,4). Furthermore, repeated TACE procedures are frequently required to attain a maximal possible tumor control, particularly for huge lesions. Consequently, to develop an optimal management plan, it is vital to establish robust indicators for predicting liver dysfunction and patient survival following TACE treatment. Currently, liver function is mainly determined by the Child-Pugh classification (CP) or the albumin-bilirubin (ALBI) grade, both of which have certain shortcomings. For instance, CP classification is less consistent and reproducible due to the subjective parameters employed, while ALBI grade suffers from significant intragroup heterogeneity (5,6). Therefore, there is still an urgent need in developing better methods for assessing liver function, and more importantly the prognosis.

The damage of adjacent liver parenchyma results in inflammation, tissue hyperplasia, and fibrogenesis, leading to cirrhosis, elevated portal venous pressure (PVP), and eventually portal hypertension (PH), all of which are proven risk factors of liver dysfunction after TACE treatment (7-9). The spleen is a susceptible organ to these complex pathophysiological alterations and responds quickly and significantly in the form of splenomegaly (10,11). It has been demonstrated that the splenic volume (SV) is closely associated with the severity of cirrhosis and PH (12,13). In addition, the presence and the magnitude of splenomegaly has been shown to be a reliable predictor for liver failure and overall survival in HCC patients who undergo hepatectomy (11). Therefore, it is reasonable to hypothesize that SV may serve as an efficient biomarker to monitor liver function reserves and predict patient survival during consecutive TACE treatments.

This retrospective study investigated the feasibility and prognostic value of SV in evaluating the liver compensatory capacity and survival in HCC patients undergoing TACE. Patients were routinely followed up, and clinical data as well as survival information were collected and analyzed. The changes in SV during TACE procedures and its clinical value were evaluated. We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/jgo-21-226).

Methods

Patients

This retrospective study was reviewed and approved by the Ethics Committee of the First Affiliated Hospital, Sun Yat-sen University. Data of all HCC patients who received consecutive TACE in the Department of Interventional Radiology of the First Affiliated Hospital of Sun Yat-sen University between April 2015 and August 2017 were reviewed. Patients were excluded from this study if they (I) received other non-curative therapies prior to TACE treatment; (II) had incomplete data due to any cause; (III) presented with a history of splenic arterial/venous embolism or splenectomy; or (IV) presented with other types of malignancies concurrently (Figure 1). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived.

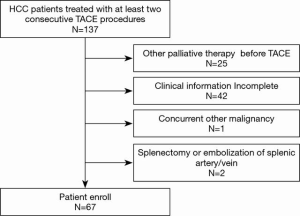

Figure 1 Flowchart of patient enrollment, 67 patients had been enrolled finally. TACE, transarterial chemoembolization; HCC, hepatocellular carcinoma.

Treatment and follow-up

The “on-demand” TACE strategy was adopted according to the overall evaluation, and all TACE treatments were performed with identical procedures and protocols. Briefly, a transfemoral access was established, and a catheter was advanced and placed super-selectively to the tumor-feeding artery under fluoroscopy guidance (Allura Xper FD20, Philips Medical Systems, Eindhoven, Netherlands). Subsequently, embolic agents loaded with chemotherapeutic agents were delivered into tumor masses. Patients were followed up every 3–6 weeks for routine physical examination and evaluation of treatment responses, liver function, and other parameters .

Assessments

The tumors were staged according to the Barcelona Clinic Liver Cancer (BCLC) standard (14). Liver function was analyzed using the CP classification and the ALBI grade (15,16). Image evaluations were implemented before the initial TACE treatment and during each follow-up period. Plain scanning and dynamic contrast-enhanced computed tomography (CT) examinations were carried out on a CT scanner (Aquilion 64, Toshiba Medical System, Tokyo, Japan) using the scanning protocol as follows: tube voltage, 120 kV; tube current, 250 mAs; rotation time, 0.358 s; field of view, 400 mm; reconstruction interval, 1.0 mm; and slice thickness, 0.8 mm. Image analyses were processed using AnalyzePro 1.0 software (AnalyzeDirect, Overland Park, KS, USA) (17). To determine the SV, radiologist blind to clinical data delineated the spleen manually slide by slide on cross section portal venous phase (PVP) images, and large vessels in spleen were excluded (Figure 2). The volume of the spleen was calculated as the summation of the production of areal and layer thickness automatically using the following formula:

SV=∑Sn×Tn[1]

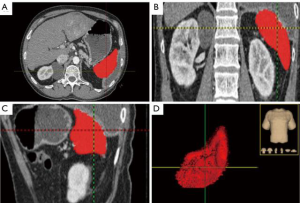

Figure 2 Process of splenic volume measurement. (A) Field of spleen was delineated slide by slide on cross sections. Field of coronal section (B) and sagittal section (C) were accumulated automatically. (D) Tridimensional measurement of splenic volume.

where SV is the splenic volume, S is the splenic area of each slice, T is the slice thickness, and n is number of slices. Liver function was assessed within 1 week prior to each TACE procedure by the CP classification and ALBI grade (15), and additional tests was carried out when necessary.

In this study, only the data before and after two consecutive TACE treatments were analyzed. This strategy guaranteed better comparability and consistency of the data analysis. The initial TACE treatment aims to achieve a maximal response, and the efficacy and survival benefits of TACE decreases sharply with each subsequent treatment attempt (18). If two repeated TACE treatments failed to obtain the expected outcomes, other treatment options were considered, such as tyrosine kinase inhibitors (TKIs) and ablation. To evaluate the prognostic value, the SV at baseline, after the first TACE, and after the second TACE were analyzed. The optimal cutoff value of SV for pre- or post- TACE treatment was calculated using X-tile software (Yale School of Medicine, CT, USA) (19).

Statistical analysis

Statistical analysis was performed using SPSS 22.0 statistical package (SPSS Inc., Chicago, IL, USA). Continuous data were presented as mean ± standard deviation (SD) and range. SV before and after TACE was compared using paired t-test. Univariate analyses and multivariate analyses were performed to distinguish risk factors. Kaplan-Meier curves and Cox regression models were employed for survival analysis. Categorical variables were compared by Wilcoxon rank sum tests, and the correlation of categorical and consecutive variables were analyzed using the Spearman test. Independent t-tests and Chi-square tests were used to evaluate intergroup differences. P<0.05 was considered statistically significant. The optimal cutoff SV value was determined using X-tile software (Yale School of Medicine, CT, USA) (19).

Results

Patient characteristics

A total of 67 patients (63 males, 94%, and 4 females, 6%) with an average age of 48.76±11.07 years (range, 27–71 years) were enrolled in this study. The characteristics of the patients are summarized in Table 1. The etiology of the enrolled patients was chronic hepatitis B virus (HBV) infection. No other etiological factors such as hepatitis C virus (HCV) infections were identified. There were 6 (8.96%), 24 (35.82%), and 37 (55.22%) patients with stage A, B, and C tumor, respectively, according to the BCLC staging system. There were 58 (86.57%) and 9 (13.43%) patients with class A and class B CP score, respectively. There were 17 (25.37%), 49 (73.13%), and 1 (1.5%) patient with ALBI grade 1, 2, and 3, respectively.

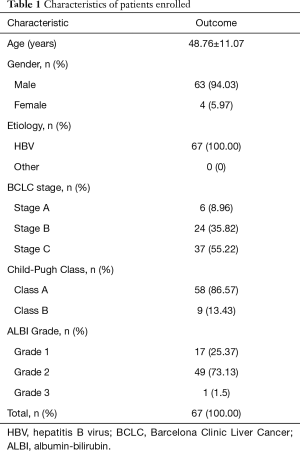

Table 1 Characteristics of patients enrolled
Full table

SV and liver function after repeated TACE

TACE was successfully implemented in all patients, and no severe or fatal treatment-related complications occurred. The average follow-up duration was 497.12±417.33 days. The baseline SV was 299.74±143.63 cm³. Univariable correlation analysis revealed a moderate and statistically significant correlation between SV and CP classification (R=0.31, P=0.011, Figure 3A). There was also a significant difference in SV between patients of CP class A and class B (Figure 3B). No correlation was found between SV and age, gender, tumor stage, nor ALBI grade at baseline (Figure 3). Furthermore, there was no significant difference in the SV of patients with different ALBI grade and tumor stage (Figure 3C,D).

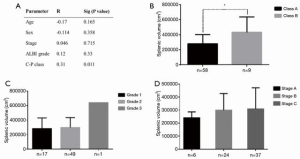

Figure 3 Risk analysis of splenic volume. (A) In univariable analysis, only C-P class showed moderate and significant correlations with basic splenic volume (P<0.05). (B) Splenic volume was 278.78±122.10 cm³ and 434.84±200.66 cm³ in patients of C-P class A and class B, respectively (P<0.05). (C) Splenic volume was 283.93±146.30, 298.28±136.84 and 640.39 cm³ in patients with ALBI grade 1, 2 and 3, respectively (P>0.05). (D) Splenic volume was 240.43±45.84, 299.47±127.9 and 309.54±162.47 cm³, in patients with tumor stage A, B and C, respectively (P>0.05). C-P, Child-Pugh; ALBI, albumin-bilirubin; *, significant difference.

The SV increased remarkably after the first TACE procedure (330.16±155.38 cm³, P<0.01), and it increased significantly again after the second TACE treatment (355.63±164.26 cm³, P<0.01, Figure 4A). Subgroup analysis indicated that the SV increased significantly in patients with BCLC stage B and stage C, but not stage A patients (Figure 4B). However, univariate analyses showed no significant correlations between the change in SV (either absolute increased volume or relative change ratio) and age, gender, tumor stage, baseline SV, CP classification, ALBI grade, nor type of embolic agent used (lipiodol or microsphere) (Figure 4C,D).

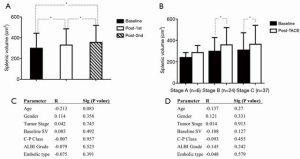

Figure 4 Analysis of splenic volume shift. (A) Splenic volume was 299.74±143.63 cm³ at baseline, 330.16±155.38 cm³ after 1st TACE and 355.63±164.26 cm³ after 2nd TACE. Splenic volume enlarged significantly along with each TACE procedure (*, P<0.01). (B) Splenic volume enlargement was significantly in patients of stage B (absolute value: 59.06 cm³, 95% CI: 28.92–89.20, *, P<0.01) and C (absolute value: 55.45 cm³, 95% CI: 26.98–83.91, *, P<0.01), but the enlargement was not obvious in patient of stage A (absolute value: 45.86 cm³, 95% CI: −40.97 to 132.7, P=0.23). Univariable analysis of the absolute enlargement value (C) and relative change rate (D) of splenic volume. TACE, transarterial chemoembolization; SV, splenic volume; C-P, Child-Pugh; ALBI, albumin-bilirubin.

Examination of post-TACE liver function revealed that CP classification in 13 patients and ALBI grade in 15 patients deteriorated after repeated TACE. Wilcoxon rank sum tests demonstrated that only ALBI grade showed significant deterioration after two TACE procedures (Table 2).

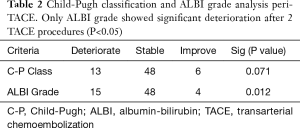

Table 2 Child-Pugh classification and ALBI grade analysis peri-TACE. Only ALBI grade showed significant deterioration after 2 TACE procedures (P<0.05)
Full table

Survival analysis

Kaplan-Meier analysis was performed to assess and compare the prognostic values of SV, CP classification, and ALBI grade (Figure 5). The median overall survival (mOS) in the whole cohort was 424.0 days [95% confidence interval (CI): 297.9 to 550.1]. The optimal cutoff of SV values was determined as 373 cm³ for both pre- and post- TACE treatment (19). The patients were then divided into the small SV group (SV <373 cm³) and the large SV group (SV ≥373 cm³) accordingly. There were 51, 47, and 42 patients in small SV group at baseline, post the first TACE, and post the second TACE, respectively. In the large SV group, there were 16, 20, and 25 patients at baseline, post the first TACE, and post the second TACE, respectively.

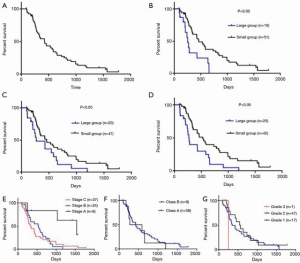

Figure 5 Kaplan-Meier curves of whole cohort (A), in SV groups at baseline (B), post 1st TACE (C) and post 2nd TACE (D), in different tumor stage (E), in different Child-Pugh class (F) and in different ALBI grade (G). SV, splenic volume; TACE, transarterial chemoembolization; ALBI, albumin-bilirubin.

The prognostic value of both pre- and post- TACE SV were analyzed. Based on the pre-TACE SV, the mOS was 458 days (95% CI: 306.40 to 609.60) in patients in the small SV group, which was significantly better than the mOS of 249 days observed with patients in the large SV group (95% CI: 197.72 to 300.28; P<0.05; Figure 5B). Similarly, according to the SV after the first TACE treatment, mOS in the small SV group and the large SV group were 454 days (95% CI: 238.23 to 669.70) and 266 days (95% CI: 19.94 to 512.06), respectively (P<0.05, Figure 5C). Furthermore, for patients who received two TACE procedures, the mOS was 526 days (95% CI: 359.76 to 692.24) in the small SV group compared to 266 days (95% CI: 226.06 to 305.94) in the large SV group (P<0.05, Figure 5D).

Tumor stage was also presented certain predictive value. There were significant differences in survival for stage A vs. stage B patients, and stage A vs. stage C patients, but not stage B vs. stage C patients (Figure 5E). On the contrary, neither CP classification nor ALBI grade showed predictive values for patient survival (Figure 5F,G). Likewise, age and gender had no predictive value (Table 3). Subsequent multivariable Cox regression analyses revealed that SV group [hazard ratio (HR) 3.07, 95% CI: 1.42 to 6.67, P=0.004] and tumor stage (stage B vs. stage A, HR 4.32, 95% CI: 1.21 to 15.41, P=0.024; stage C vs. stage A, HR 4.43, 95% CI: 1.30 to 15.11, P=0.017) were predictors for survival (Table 4). However, no predictive values were identified for CP classification and ALBI grade.

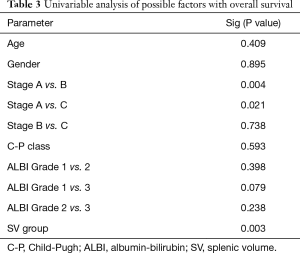

Table 3 Univariable analysis of possible factors with overall survival
Full table

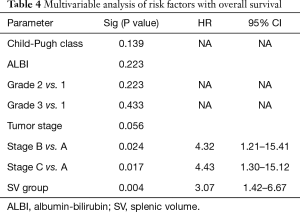

Table 4 Multivariable analysis of risk factors with overall survival
Full table

Comparison of baseline characteristics between the small and large SV groups

The baseline characteristics between the small and large SV groups were compared. There were 47 CP class A (92.16%) and 4 CP class B (7.84%) patients in the small SV group, and 11 CP class A (68.75%) and 5 CP class B (31.25%) patients in the large SV group, respectively (P<0.05, Figure 6A). However, there were no significant differences between groups with respect to the other characteristics including ALBI grade (grade 1, n=13, 25.49%; grade 2, n=38, 74.51%; and grade 3, n=0, 0% in the small SV group vs. grade 1, n=4, 25%; grade 2, n=11, 68.75%; and grade 3, n=1, 6.25% in the large SV group; P=0.31; Figure 6B), age (48.92±11.37 in the small SV group and 48.52±10.36 in large SV group; P=0.83; Figure 6C), and tumor stage distribution (stage A, n=6, 11.76%; stage B, n=17, 33.33%; and stage C, n=28, 54.9% in the small SV group vs. stage A, n=0, 0%; stage B, n=7, 43.75%; and stage C, n=9, 26.25% in the large SV group; P=0.39; Figure 6D).

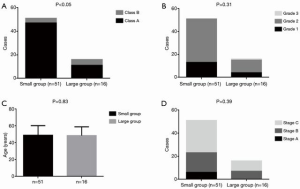

Figure 6 Comparison of characteristics of patients in SV groups. (A) Child-Pugh class: in small group, there were 47 (92.16%) patients with C-P class A, 4 (7.84%) patients with C-P class B, while 11 (68.75%) and 5 (31.25%) in large group, respectively (P<0.05). (B) ALBI grade in groups: in small group, there were 13 (25.49%), 38 (74.51%), 0 (0%) patients with ALBI grade 1, 2and 3, while 4 (25%), 11 (68.75%), 1 (6.25%) in large groups, respectively (P=0.31). (C) Age of patients in small and large groups showed no difference (48.92±11.37 vs. 48.52±10.36, P=0.83). (D) Tumor stage distribution: In small group, there were 6 (11.76%), 17 (33.33%), 28 (54.9%) patients with tumor burden of stage A, B and C, while 0 (0%), 7 (43.75%), 9 (56.25%) in large group, respectively (P=0.39). SV, splenic volume; C-P, Child-Pugh; ALBI, albumin-bilirubin.

Discussion

Balancing the therapeutic benefits and adverse effects of a candidate treatment option and predicting survival are vitally important for the development of an optimal management plan. This is particularly true in patients who undergo TACE as most of the HCC lesions arise in the background of established cirrhosis with impaired liver compensatory capacity (1,5,16). When treating tumors, TACE simultaneously causes a series of complex and detrimental pathophysiological changes such as fibrosis, cirrhosis, PH, varices, and even liver failure, which ultimately lead to dismal prognosis (4,7,9,20). Therefore, a robust indicator for evaluating liver function reserve and patient survival is essential to accurately determine whether a patient is suitable for TACE treatment.

In this study, the comprehensive clinical data of 67 consecutive HCC patients who were subjected to repeated TACE procedures were collected to analyze the prognostic value of SV. Clinically used methods, including CP classification and ALBI grade, were adopted for liver function evaluation. Of them, 6 patients in BCLC stage A received TACE mainly due to contradictions of radical treatments. The remaining patients were in BCLC stage B (n=24) or C (n=37) with CP class A or B. Noteworthy, one patient in CP class B (8 points) with obstructive jaundice secondary to tumor compression of the bile duct was categorized as ALBI grade 3 and underwent TACE in order to reduce tumor burden and to relieve the oppression as soon as possible. Super-selective chemoembolization with low-dose chemotherapeutic agent was applied. The tumor regressed and the obstructive jaundice palliated after treatment, and the CP classification and ALBI grade were downgraded from class B and grade 3 to class A and grade 2, respectively.

The baseline and the changes in SV following TACE treatment were explored. The threshold for dividing patients into the small and large SV groups was determined as 373 cm³. The baseline SV showed moderate and statistically significant correlation with CP classification, and there was a significant difference between groups in terms of CP classification, but not other characteristics including age, gender, tumor stages, and ALBI grade. CP classification utilizes clinical symptoms and serum variables to evaluate liver function reserve. It involves not only hepatic metabolic and synthetic function, but also the status of liver fibrosis, cirrhosis, and PH. Similarly, SV is one of the most significant indicators of portal pressure, and it increases in the case of PH. Severe liver fibrosis/cirrhosis and PH tend to manifest as splenomegaly and higher CP scores. This is in line with the findings of this study.

The study also demonstrated that SV increased significantly after each TACE procedure, and the increment was an independent process that was not correlated with baseline liver function status, gender, nor tumor stage. Concurrent liver injury is the most common complication of TACE, regardless of the type of embolic agent used (3,21). The mechanisms and consequences of TACE-induced liver injury are complex. In addition to the toxicity of chemotherapeutic agents, TACE also elicits a series of environmental and cytokine signals alterations such as hypoxia induced factor-1α (HIF-1α) and vascular endothelial growth factor (VEGF), which promote fibrosis, cirrhosis, PH, and subsequent splenomegaly (9,20,22). In the survival analysis, both pre- and post-TACE SV exhibited strong predictive power for patient survival, whereas CP score and ALBI grade failed to show prognostic value. CP score is a long-established approach for assessing liver function, and it presents prognostic value in certain clinical scenarios such as surgical resection (15). However, CP scores bear some limitations which may impair its predictive effect. It comprises subjective indicators, such as the presence and degree of ascites and encephalopathy, which may lead to inconsistent and inaccurate scoring. For example, the severity of ascites is not only determined by liver function. It may also be affected by metastases to the abdominal cavity, vascular occlusion due to tumor invasion and compression, infections, and inflammation, or the combination thereof. Furthermore, evident heterogeneity within the same classification is also an important issue (15). On the other hand, the ALBI grade was developed to improve the effectiveness and accuracy of liver function assessment. It does have a better discriminatory ability than CP scores, and has been shown to have prognostic value in many studies (5,15,23). However, several drawbacks, such as great heterogeneity, still hamper the wide-spread application of this approach. For instance, patients of ALBI grade 2 may present with a wide range of liver status according to the CP classification, scoring from 5 to 8 or even greater (24). Moreover, serum bilirubin and serum albumin are susceptible to many factors such as hemolysis, inflammation, nutritional condition, or circulation state aside from liver function, and are relatively less specific and sensitive (25).

In contrast, SV has numerous advantages as a predictive factor. The spleen contains highly elaborate tissue structures and is anatomically linked to the liver via the portal vein system. Clinically, splenomegaly is one of the most important manifestations of liver cirrhosis and PH (26). More importantly, splenomegaly not only responds to, but also participates in the processes of liver fibrosis and hyperplasia (27). Previous studies have revealed that splenomegaly may in turn promote the progression of liver fibrosis to cirrhosis and exacerbate disease prognosis through multiple pathways (28). The size of the spleen has been used to determine the stage of liver fibrosis/cirrhosis and PH (13,29), and has been identified as an independent predictor of overall survival in patients subjected to adjuvant TACE after surgery (30). Besides, SV is an objective parameter which can be obtained with more accuracy and consistency, and is a consecutive data rather than a discontinuous grade index. The changes in SV, even a slight increment, is easy to identify, which endows SV with dynamic and sensitive predictive power. This is especially easy to be identified in patients receiving TACE as the SV increases significantly after each procedure . However, traditionally, splenomegaly is evaluated by unidimensional proxy long-axis. This method has been demonstrated to be of low sensitivity and specificity, mainly due to the complexity of the shape and orientation of the spleen, and body habitus of diverse populations (31). In this study, the prognostic power was substantially enhanced using three-dimensional volumetric measurements and this method was shown to be more precise and reproducible.

There are some limitations in this study. Due to the retrospective study design, numerous patients were excluded for certain reasons, and the final sample size was relatively small. In this proof-of-concept study, the SV was calculated based on the manually drawn splenic area layer-by-layer which is somewhat burdensome and time-consuming. Automated or semi-automated methods should be explored in future studies. In addition, future prospective large-scale investigations are warranted to further validate the findings in this study.

Conclusions

SV exhibited a robust predictive power for HCC patients undergoing TACE treatment and this may be useful in assessing survival benefits versus adverse effects in patients with HCC so as to develop optimal treatment regimens.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/jgo-21-226

Data Sharing Statement: Available at https://dx.doi.org/10.21037/jgo-21-226

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/jgo-21-226). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was reviewed and approved by the Ethics Committee of the First Affiliated Hospital, Sun Yat-sen University. Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
