Conformal external beam radiation or selective internal radiation therapy—a comparison of treatment outcomes for hepatocellular carcinoma

Introduction

Hepatocellular carcinoma (HCC) accounts for the majority of primary liver malignant tumors and is responsible for more than half a million deaths annually worldwide (1). Chronic liver disease due to hepatitis B and C remains a leading risk factor for HCC globally and at least some degree of cirrhosis is seen in the majority of patients (2). Despite preventive measures with hepatitis B vaccine, HCC remains the third leading cause of cancer related mortality worldwide and is the fastest rising cause of cancer related death in the United States over the past two decades (3,4).

Advances in surgical, medical and ablative therapies have improved long term survival rate and prognosis of HCC (5). Underlying liver dysfunction and pathological stage contribute to the survival rates and often preclude patients from curative options of either surgical resection or transplantation. Patients with non-resectable tumors can benefit from local tumor control through non-surgical therapies such as external beam radiation therapy, radiofrequency ablation, or transarterial embolization. The delicate balance between curative radiation doses and occurrence of radiation-induced liver disease can limit the curative outcomes expected (6).

Historically, the use of external beam radiation to treat liver malignancies was limited due to low tolerance of whole liver irradiation (7). However, the advancements of stereotactic body radiation therapy has allowed for a highly focused targeted radiation to the tumor by delivering high dose of radiation precisely in single or few fractions while limiting toxicity to functional liver parenchyma (8). With improved techniques to account for the effects of respiratory motion on target volume (9-11) and advances in image guidance, stereotactic body radiotherapy (SBRT) is a noninvasive approach to definitive treatment of primary hepatic malignancies.

Selective internal radiotherapy (SIRT), also known as transarterial radioembolization (TARE) is an alternative locoregional strategy of delivering radioactive isotopes such as yttrium-90 to the tumor. The commercially available microspheres products are glass (TheraSpheres; MDS Nordion Ottawa, Ontario, Canada) and resin (Sir-Spheres; Sirtex Medical, Woburn, MA, USA). Retrospective review of ytrrium-90 infusions has shown that the efficacy of TARE depends on preserved target area blood flow in order to achieve high-energy beta-decay-induced free radical cell death (12).

To date, randomized comparison of SBRT to SIRT is lacking yet needed to define the role of radiation in treatment guidelines for HCC. Here we study a large population of patients solely with HCC. Using data from the Surveillance, Epidemiology, and End Results (SEER) registry of the National Cancer Institute from 2004 to 2011, we compare survival in HCC cancer patients who received highly conformal radiation with SBRT with those who received SIRT with SIR-Spheres. The purpose of this study is to determine whether SBRT or SIRT is associated with better outcomes in the treatment of HCC.

Methods

The SEER registry compiles cancer incidence, treatment, and survival data from 18 population-based cancer registries, covering more than 25% of the population of the United States. The SEER database was accessed to identify all patients diagnosed with HCC from 2004 (two years after FDA approval of SIR-spheres) until 2011 (most recent available data in the database). The variables obtained for each case include patient demographics (sex, race, age at presentation, year of diagnosis), tumor characteristics (size, histologic grade, surgical stage, extent of disease, nodal status of the disease, presence of distant metastases), AFP level, vital status, and treatment modalities (radiation sequence relative to surgery, type of surgery performed, external beam radiation, radioisotopes, and sequence of radiation with surgery).

Patients

The initial SEER query resulted in 50,386 cases of histologically diagnosed HCC between the years of 2001 and 2011. Cases with unknown stage [8,171], unknown grade [31,834], more than one primary tumor [6,136], metastatic disease [5,884], no radiation administered [46,861], or unknown radiation modality [1,379] were excluded. This generated a final cohort of 233 cases. Most of the cases with unknown stage were cases diagnosed prior to 2004, when a different coding scheme was used by the SEER database to describe the extent of disease. This coding scheme lacked the necessary information to fit patients into an AJCC stage group. Between 2002 and 2003, only 3 cases of SIR-sphere use were reported and 71 cases of beam radiation treatment, however, the AFP level associated with those 3 cases was not reported. Any patients with surgery described as “Total hepatectomy and transplant” and “Hepatectomy NOS” were excluded. Patients with “preoperative radiation” were excluded. Thus the final cohort of 189 was included in this study from 2004 to 2011. There were 67 patients alive and 122 were expired at the time of analysis. Of the expired cases, liver specific disease caused 114 deaths, 8 deaths were attributed to other causes.

Statistical analysis

Chi-square test with exact P values based on Monte Carlo simulation and Wilcoxon’s rank sum test were used to compare categorical variables, respectively. Overall survival (OS) is defined as the time (months) from the surgery to the last follow-up or death whichever occurs first (67 censored). The disease specific survival (DSS) is defined as the time (months) from the surgery to last follow-up or death whichever occurs first with death because of other reason treated as censored (75 censored). OS and DSS were compared between two radiation modalities using log-rank test. The comparisons were further studied using multivariable Cox proportional hazard models to adjust for confounding factors which included age at diagnosis, sex, race, grade combined, stage combined, AFP level, type of surgery, tumor size. These factors were put into the regression model based on forward selection because of the small number of death events. Estimated hazard ratios (HRs) for each category versus the reference level and their 95% confidence intervals (CIs) were reported. For categorical variable, a HR >1 means that category has more death risk or disease specific death risk than the reference category. For a continuous variable, a HR >1 means for every unit of increase in the variable, the death risk or the disease specific death risk also increases. Statistical analysis was performed using SAS 9.3 (SAS Institute, Inc., Cary, NC, USA) and statistical significance was set at 0.05.

Results

Table 1 shows the descriptive statistics for categorical variables and continuous variables classified by radiation type. The table suggests that year of diagnosis, vital status and cause specific death were significantly associated with radiation type, reflecting the technological progress of these treatment modalities.

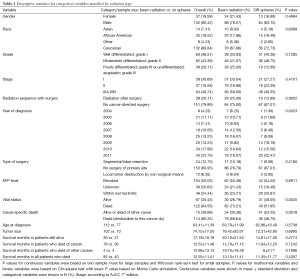

Table 1 Descriptive statistics for categorical variables stratified by radiation type
Full table

Figure 1 shows the Kaplan-Meier curves for OS and DSS, stratified by radiation type. The median OS time for patients treated with SBRT was 14 months (95% CI: 10–18) compared to SIRT was 12 months (95% CI: 9–17). The median DSS time for patients with SBRT was 14 months (95% CI: 12–20) compared to SIRT was 14 months (95% CI: 10–22).

Figure 1 Kaplan-Meier curves for patients with hepatocellular carcinoma. (A) Overall survival of patients treated with SBRT versus SIRT; (B) disease-specific survival of patients treated with SBRT versus SIRT. SBRT, stereotactic body radiotherapy; SIRT, selective internal radiotherapy.

Multivariable analysis showed that tumor size had a significant correlation with stage (P<0.0001). Further Cox PH models with forward selection were fit for variables radiation type, AFP level, radiation group with surgery, age at diagnosis, sex, race, grade and stage. The results are shown in Figures 2 and 3. After adjusting for other risk factors above, radiation type was not significantly associated with OS or disease-specific survival (P=0.1077 for OS and P=0.0880 for DSS). After adjusting for other risk factor, AFP level was significantly associated with OS and disease-specific survival (P=0.0459 for OS and P=0.0233 for DSS). Patients with elevated AFP level were associated with higher death risk and disease-specific death risk than AFP level within normal limits, regardless of the treatment modalities.

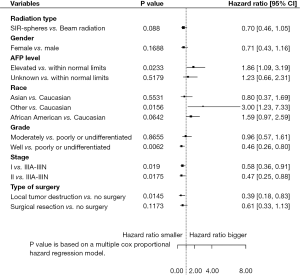

Figure 2 Forest plot for overall survival.

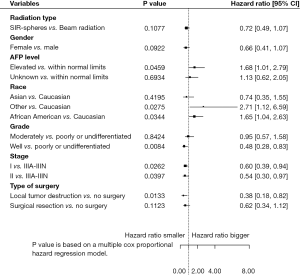

Figure 3 Forest plot for disease-specific survival.

Discussion

In the present study, we aimed to compare the outcomes of treating unresectable cases of HCC with SBRT versus SIRT. The utilization of external beam radiation therapy for treatment of HCC has dramatically increased with the advent of stereotactic technique (SBRT). While SEER lacks detailed information on radiotherapeutic techniques, the recent conformal external beam radiation cases in SEER database are most likely in the form of SBRT. The retrospective clinical experience of Karolinska Hospital marked the first reported use of SBRT in treating patients with HCC (13). Since its publication in 1995, other retrospective studies have reported promising data suggesting that SBRT can serve as an alternative to surgery and bridge to liver transplantation (14,15). Of note, the most recent and largest retrospective study by Sanuki et al. involving 185 patients with Child Pugh class A and B reported 1-year OS rate and local control of 95% and 99% respectively and 13% grade >3 toxicity (16). In addition, SBRT has a role in treatment of patients with tumor vascular thrombosis and advanced stage of HCC. The median survival for such patients is 2–4 months without intervention (17). In contrast, with SBRT, a study of 56 HCC patients with tumor vascular thrombosis reported a median survival of 10.6 months and 1 year OS of 44% (18).

SBRT is currently indicated for patients with early stage disease and poor performance status precluding them from surgical resection or transplant, and those with portal vein invasion causing limited access for radioisotopes (19). Those on transplant waiting lists can also benefit from SBRT as bridge therapy. Likewise, SIRT is indicated in patients with preserved liver function (serum total bilirubin <2 mg/dL), without ascites or hepatic encephalopathy and unresectable patients with portal vein thrombosis or poor-TACE-candidates (20). Patients with portal vein tumor thrombosis in the setting of HCC have been shown to benefit from TARE (21). The largest prospective study involving 291 patients with intermediate or advanced disease reported an overall time to progression of 7.9 months, difference in survival time between patients with Child-Pugh A or B disease (17.2 and 7.7 months respectively) and response rates between 42% and 57% based on WHO and EASL assessment criteria respectively (22).

Better quality of life in patients with unresectable HCC treated with SIRT compared to another form of TACE has been reported. SIRT has been shown to have fewer complications, decreased time to tumor progression and faster tumor response time compared to TACE (23,24). Thus as a form of brachytherapy, SIRT has a favorable outcome over other transarterial approaches to HCC treatment. While studies exist comparing TACE to TARE, randomized controlled trial comparing TARE to SBRT is lacking. In our study, after adjusting for risk factors, type of radiation was not significantly associated with OS or DSS. However, the AFP level was significantly associated with OS and disease-specific survival especially for those with elevated AFP level compared to normal limits.

The mean 5-year survival rate of patients with HCC is known to depend on the presence or absence of elevated AFP, tumor size, resectability and symptoms. AFP positive tumors have a poorer prognosis as non-resectable cases have a mean survival of 5 months compared to AFP negative tumors with a mean survival of 10.5 months (25). Our findings of a higher death risk and disease-specific death risk for those with elevated AFP levels support this notion. In our study, the median DSS time was 14 months both for patients treated with SBRT (95% CI: 12–20) and those treated with SIRT (95% CI: 10–22). When comparing solely radiation type, SBRT had a slightly longer survival time of 14 months (95% CI: 10–18) compared to SIRT with 12 months (95% CI: 9–17). The SEER database did not report the Child-Pugh Liver Cirrhosis score (i.e., A, B or C), which could have impacted response rates and outcomes of liver directed radiation therapy. The database lacks information on patients pretreated with systemic chemotherapy, transcatheter arterial chemoembolization, radiofrequency ablation or percutaneous ethanol injection. Thus the effect of potential pretreatment with other non-invasive therapy is not accounted for in this retrospective study. SEER also lacks data on performance status, margin status, radiation dose and fields. However, published studies suggest a radiation dose-response relationship for local control and OS with SBRT (26).

Conclusions

In summary, this is the first retrospective review of large population-based data registry to show a similar overall and disease-specific survival benefit to treating cases of HCC with SBRT or SIRT. Our results, albeit retrospective, suggest similar outcomes for the two modalities in a large cohort of patients, validating the use of each but also indicating the need for further research to better define when one should be used over the other.

Acknowledgements

This work was supported by Stony Brook University Hospital.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
