Zebrafish xenograft model for studying the function of lncRNA SNHG4 in the proliferation and migration of colorectal cancer

Jian Wang1,2, Xiao-Yu Zhang2, Dong-Yan Xu3

1Department of General Surgery, Nanjing Drum Tower Hospital Clinical College of Nanjing University of Chinese Medicine, Nanjing, China; 2Department of General Surgery, The Affiliated Huai’an Hospital of Xuzhou Medical University, Xuzhou, China; 3Department of Gastroenterology, The Affiliated Huai’an Hospital of Xuzhou Medical University, Xuzhou, China

Contributions: (I) Conception and design: J Wang; (II) Administrative support: XY Zhang; (III) Provision of study materials or patients: J Wang; (IV) Collection and assembly of data: DY Xu; (V) Data analysis and interpretation: J Wang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Jian Wang. Department of General Surgery, Nanjing Drum Tower Hospital Clinical College of Nanjing University of Chinese Medicine, Nanjing, China; Department of General Surgery, The Affiliated Huai’an Hospital of Xuzhou Medical University, Xuzhou, China. Email: 20195162@njucm.edu.cn.

Background: The zebrafish xenograft model has become a reliable in vivo model for human cancer research. Compared to a mouse model, the zebrafish xenograft has many advantages, including optical transparency, intuitive in vivo observation, and speed. Long noncoding RNAs (lncRNAs) have been identified as crucial regulatory factors in the progression of colorectal cancer (CRC). The biological function of lncRNA small nucleolar RNA host gene 4 (SNHG4) in CRC is still unclear.

Methods: We analyzed the expression of SNHG4 in CRC patient samples by the Gene Expression Profiling Interactive Analysis (GEPIA) software. The quantitative real time-polymerase chain reaction (qRT-PCR) was used to verify in CRC cell lines. The colony formation assay was used to study the cell proliferation, and we used the transwell assay to detect the migration ability. Then the zebrafish xenograft models were used to confirm these roles of SNHG4 in vivo. Moreover, we detected epithelial mesenchymal transition (EMT) related genes by qRT-PCR.

Results: We found the expression of SNHG4 was upregulated in CRC patient samples by analyzing GEPIA software, which was also verified in CRC cell lines. We also found that silencing SNHG4 inhibited the proliferation and migration of CRC cells, and its roles were verified in zebrafish xenografts in vivo. Further, we found that the expression of E-cadherin was significantly upregulated and N-cadherin was downregulated when knocking-down SNHG4 in CRC cells.

Conclusions: Our findings demonstrated that SNHG4 played oncogenic roles in CRC, which could be a potential target for treatment of CRC patients, and the results strongly revealed that zebrafish xenograft could be used for functional research of lncRNAs in human cancer.

Keywords: Zebrafish xenograft; colorectal cancer (CRC); lncRNA SNHG4; cell proliferation; cell migration


Submitted Nov 02, 2021. Accepted for publication Jan 30, 2022.

doi: 10.21037/jgo-21-832


Introduction

Zebrafish xenografts have developed into a promising experimental model for human cancer research (1-3). Many human cancer cell line-derived xenografts (CDX) have been successfully established in zebrafish, including breast cancer, lung cancer, melanoma, colorectal cancer (CRC), and gastric cancer (4-9). Additionally, a zebrafish patient-derived xenograft (zPDX) was recently developed, reflecting the tumor biology characteristics of patients (5,8). Compared to a mouse xenograft model, zebrafish xenografts have many unique advantages for cancer research, including the optical transparency of zebrafish larvae, which allows for easy in vivo observation, the proliferation and migration could be assessed simultaneously at 96 hours (10-12). Several studies have shown that the zebrafish xenograft model is a reliable tool for studying tumor growth and metastasis (11,13,14). Thus, the zebrafish xenograft model is a powerful and effective model for human cancer research.

CRC is one of the most commonly diagnosed cancers, causing a high number of cancer-related deaths worldwide (15). Although there have been advancements in early diagnosis and treatment for CRC patients, the prognosis is poor and the survival rate remains low (16-18). Therefore, there is an urgent need to better understand the fundamental mechanisms of CRC proliferation and migration in order to improve early diagnosis, treatment, and prognosis of CRC.

Long noncoding RNAs (lncRNAs) are a class of transcripts longer than 200 nucleotides with noncoding protein coding potential (19,20). Numerous studies have revealed that lncRNAs are involved in the progression of CRC, including proliferation, migration, invasion, and apoptosis (21-25). Thus far, zebrafish models have been used to investigate the oncogenic role of lncRNA THOR and LINC00152 in the progression of melanoma and lung cancer, respectively (26,27). Additionally, previous studies have reported the successful transplantation of human CRC cell lines into zebrafish to simultaneously evaluate proliferation and migration potential (5). These results suggested that zebrafish xenografts could be used to study the role of lncRNAs in CRC.

Small nucleolar RNA host genes (SNHGs) have been shown to play a role in the progression of multiple cancers, including CRC (28,29). For example, SNHG1 facilitated the CRC cell proliferation and migration (30), SNHG3 promoted growth of CRC cell (31). SNHG4, located on chromosome 5q31.2, is a proven oncogenic lncRNA in several types of cancers, including lung cancer and prostate cancer (27,32-35). Recently, a few of studies reported that SNHG4 was high expressed in CRC tissues and regulated the proliferation and migration of CRC cells in vitro, and it also could regulate the proliferation of CRC in mouse model (36,37). However, its roles of SNHG4 in CRC metastasis effect and underlying mechanisms of SNHG4 in CRC, a simple and fast in vivo model is required.. As zebrafish xenografts have been successfully used to investigate the function of lncRNAs in human cancers, especially metastasis, we chose zebrafish CRC xenograft model to verify the function of SNHG4 in CRC.

In this study, we used Gene Expression Profiling Interactive Analysis (GEPIA) software and found that SNHG4 was upregulated in CRC. Meanwhile, we detected the expression level of SNHG4 in CRC cell lines. We then investigated the effect on proliferation and migration of SNHG4 knockdown in vitro and in zebrafish xenografts in vivo, respectively. In addition, we detected epithelial mesenchymal transition (EMT)-related genes after knockdown of SNHG4 in CRC cells. We present the following article in accordance with the MDAR reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-21-832/rc).


Methods

Zebrafish husbandry

Adult zebrafish were maintained in an automated fish culture system (Haisheng, China) at 28 °C and a 14-hour light/10-hour dark cycle. Embryos were cultured in 10% Hank’s solution consisting of (in mM) 140 NaCl, 5.4 KCl, 0.25 Na2HPO4, 0.44 KH2PO4, 1.3 CaCl2, 1.0 MgSO4, and 4.2 NaHCO3 (pH 7.2). In our study, 48-hour post-fertilization (hpf) wild-type AB or Tg(fli1a:EGFP) zebrafish were used in all experiments (38). After injection, the zebrafish were cultured at 34 °C. Experiments were performed under a project license (No. HEYLL201935) granted by Affiliated Huai’an Hospital of Xuzhou Medical University, in compliance with the Affiliated Huai’an Hospital of Xuzhou Medical University institutional guidelines for the care and use of animals.

Gene expression analysis and cell culture

The expression level of lncRNA SNHG4 in normal tissue samples compared to tumor samples was analyzed using the GEPIA database (https://gepia.cancer-pku.cn/), which contains 275 colon adenocarcinoma tissue samples and 41 normal tissue samples, and 92 rectum adenocarcinoma tissue samples and 10 normal tissue samples. Human CRC cell lines were obtained from the Institute of Biochemistry and Cell Biology of Chinese Academy of Sciences (Shanghai, China) and included SW480, HCT116, HT29, LoVo, and normal colon epithelial cells [fetal human colon (FHC)]. HCT116 and FHC cells were cultured in 1640 medium, HT29 cells were grown in McCoy’s 5a medium, and LoVo cells were cultured in F-12k medium. All media were supplemented with 10% FBS (fetal bovine serum), 100 U/mL penicillin, and 100 µg/mL streptomycin. Cells were placed in a humidified atmosphere with 5% CO2 at 37 °C. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

RNA extraction and quantitative reverse transcription polymerase chain reaction (qRT-PCR)

Total RNA was extracted from cultured cells using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). Total RNA was reverse transcribed to complementary DNA (cDNA) using random primers according to the instructions of the 1st Strand cDNA Synthesis SuperMix for qPCR kit (Takara, Dalian, China). Quantitative real-time PCR analysis was performed to detect the expression level of SNHG4 in the different CRC cell lines and normal colon epithelial cells using SYBR Green Master Mix kit (Takara) following the manufacturer’s protocol. Data were collected and analyzed based on the 2-∆∆CT method and normalized by glyceraldehyde 3-phosphate dehydrogenase (GAPDH). The specific primer sequences of SNHG4 were as follows: forward 5'-gcagatgcaactgcaggatgac-3' and reverse 5'-tgtcattcaggtgaaggcatctg-3'. The primer sequences for GAPDH were as follows: forward 5'-GGGAGCCAAAAGGGTCAT-3' and reverse 5'-GAGTCCTTCCACGATACCAA-3'.

RNA interference

Small interfering RNA (siRNA) targeting SNHG4 and negative control were purchased from General Biosystems (Beijing, China). The cells were seeded in 6-well plates and after 24 hours, the siRNAs were transfected into the cells using Lipofectamine 2000 reagents (Invitrogen) according to the manufacturer’s protocol and the concentration of siRNA was 100 nM. Silencing efficiency of the siRNAs was analyzed by qRT-PCR 24 hours after transfection with siRNAs. The SNHG4 siRNA (si-SNHG4) and negative control siRNA (NC) sequences were 5'-gtgacaccaagataagtaa-3' and 5'-TTCTCCGAACGTGTCACGT-3', respectively.

Cell Counting Kit-8 (CCK-8) assay

CCK-8 assay were performed to analyze the cell proliferation using CCK-8 (DOJINDO, Japan). A total of 2×103 cells transfected with si-SNHG4 negative control siRNA and untransfected cells (normal control) were seed in 96-well plates. 10 μL of the CCK-8 reagent was added to each well at the same time, which containing 100 μL culture medium. After 2 h, the product was measured the optical density (OD) at 450 nm by monitoring on a microplate reader (BioTek Elx800, USA) according to the manufacturer’s instructions. Every 24 h was detected from 0 to 96 h.

Colony formation assay

Cell proliferation was measured using the colony formation assay. Cells were seeded in 6-well plates and transfected with siRNAs. After 24 hours, a total of 50 cells transfected with siRNAs were seeded per well in 6-well plates and cultured in a medium containing 10% FBS, 100 U/mL penicillin, and 100 µg/mL streptomycin. The medium was replaced every 3 days. After 14 days, the colonies were fixed with methanol for 30 minutes and stained with 0.1% crystal violet for 30 minutes. The visible colonies were photographed by digital camera and counted.

Transwell assay

The transfected cells were seeded in 24-well plates with 8-mm-pore size chamber inserts. Cells (10×104) diluted with 200 μL serum-free culture medium were plated into the upper chambers of the 24-well plates, and 800 μL medium with 10% FBS was placed in the lower chambers. After 36 hours, the cells that had moved from the upper membrane to the bottom surface of the membrane were treated with methanol for 30 minutes and stained with 0.1% crystal violet for 30 minutes. The images were acquired under a microscope (10×).

Zebrafish xenograft injection and imaging in vivo and quantitative analysis

The cells were plated into the six-plates, after cultured 24 hours, NC or si-SNHG4 were transfected. After transfection 24 hours later, the cells were collected and labeled with CM-DiI (Invitrogen) before injection. The cultured cells were treated as previously described (39). We then injected approximately 300 CM-DiI labeled cells into the perivitelline space (PVS) of the 48-hpf zebrafish larvae, which were fixed with 1.2% low-melting gel (Promega Corp., Madison, WI, USA) under a Picospritzer III microinjector (Parker-Hannifin Corp., Cleveland, OH, USA). After injection, the zebrafish larvae were cultured at 34 °C. After 24 hours post-injection (hpi), similar sizes of transplanted cells were selected for further research and the zebrafish were maintained at 34 °C until the experiment’s end.

At 4 days post-injection (dpi), images of the zebrafish larvae, which were fixed with 1.2% low-melting gel, were acquired via stereo microscopy (MVX10, Olympus, Tokyo, Japan) or confocal microscopy using a 20× water-immersion objective (Fluoview 1000, Olympus). The image resolution was 1,600×1,200 (MVX10) or 1,024×1,024 (Fluoview 1000) pixels.

Detection of related genes after silencing SNHG4

A previous study found that SNHG4 knockdown inhibited migration by participating in the EMT process in lung cancer (32). After silencing SNHG4 by transfecting cells with si-SNHG4, we used qPCR to detect N-cadherin, E-cadherin, Vimentin, matrix metalloproteinase-2 (MMP2), MMP9, and mitogen-activated protein kinase 1 (MAPK1) messenger RNA (mRNA) levels. The sequences of specific primers are listed in Table 1.

Table 1

Primer sequences for real-time PCR

Gene Forward primer (5'-3') Reverse primer (5'-3')
N-cadherin GCCCCTCAAGTGTTACCTCAA AGCCGAGTGATGGTCCAATTT
E-cadherin ACAATGCCGCCATCGCTTA TGAACCACCAGGGTATACGTAGG
Vimentin AAGTTTGCTGACCTCTCTGAGGCT CTTCCATTTCACGCATCTGGCGTT
MMP2 ATGCCGTCGTGGACCTGC TGCTTCCAAACTTCACGCTCTT
MMP9 GCCTTCGCACTGTGGAGC GGATACCCGTCTCCGTGCTC
MAPK1 GACCTCAAGCCTTCCAACCTG TGGAGCCCTGTACCAACGTG

PCR, polymerase chain reaction.

Statistical analysis

All statistical data were analyzed using unpaired Student’s t-tests. A value of P<0.05 was considered statistically significant. All results are represented as the mean ± standard error of mean (SEM).


Results

LncRNA SNHG4 is upregulated in CRC

We used GEPIA software to analyze the database and found that the expression of lncRNA SNHG4 was relatively high in CRC tissues (Figure 1A). We then detected SNHG4 expression levels in 4 human CRC cell lines (SW480, HCT116, HT29, and LoVo) and normal colon epithelial cells (FHC). We found that SNHG4 expression was higher in the SW480, HCT116, HT29, and LoVo cell lines (fold values were 5.66, 2.79, 2.95, and 3.26, respectively) than normal colon epithelial cells (Figure 1B), which was consistent with the results of GEPIA database analysis.

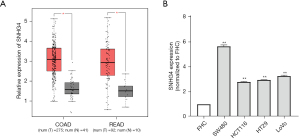

Figure 1 Expression level of lncRNA SNHG4 in CRC tissues and cell lines. (A) LncRNA SNHG4 expression was analyzed by GEPIA software in CRC tissues and normal tissues; (B) the expression of lncRNA SNHG4 was analyzed by qRT-PCR in human CRC cell lines (SW480, HCT116, HT29, and LoVo) and normal colon epithelial cells (FHC). *, P<0.05; **, P<0.01. T, red bar; COAD, colon adenocarcinoma; READ, rectal adenocarcinoma; N, gray bar; lncRNA, long noncoding RNA; CRC, colorectal cancer; qRT-PCR, quantitative reverse transcription polymerase chain reaction; FHC, fetal human colon.

Silencing SNHG4 inhibited the proliferation and migration of CRC cells in vitro

To investigate the function of SNHG4 in CRC cells, we silenced its expression by transfecting cells with siRNA. In accordance with the reported data on siRNA targeting SNHG4 (27), we synthesized the si-SNHG4 and NC and then transfected siRNAs into CRC cell lines. After 24 hours, silencing efficiency was detected by qRT-PCR. The results showed that compared with NC, silencing efficiency in the HCT116 cell line of SNHG4 was 65.8%, which was higher than the SW480 (42.7%) and LoVo (24.7%) cell lines (Figure 2A), and thus we chose to use HCT116 cells for further investigations. The CCK-8 assay indicated that the proliferation was inhibited (Figure 2B) and colony formation assay showed that colony formation ability was significantly reduced after knocking down SNHG4 (Figure 2C). And we found the untransfected group had no difference with the transfecting NC siRNA group, also. So the normal control group was not added in subsequent experiments in vitro. We then performed the transwell assay to detect the effect of SNHG4 on HCT116 cell migration. The results showed that compared with the NC group, cell migration was obviously repressed in HCT116 cells after silencing SNHG4 (Figure 2D).

Figure 2 Silencing SNHG4 inhibits the proliferation and migration of HCT116 cells in vitro. (A) Silencing efficiency of SNHG4 in HCT116 cells after transfection with SNHG4 siRNA was detected by qRT-PCR; (B) CCK-8 was performed to detect cell viability of HCT116 cells after silencing SNHG4 compared to NC; (C) colony formation assay was performed to detect proliferation of HCT116 cells after silencing SNHG4 compared to NC; (D) Transwell assay was performed to detect migration of HCT116 cells after silencing SNHG4 compared to NC (magnification 10×). The violet spots (C,D) were the cells stained by crystal violet. **, P<0.01; ***, P<0.001. qRT-PCR, quantitative reverse transcription polymerase chain reaction; NC, negative control.

These results demonstrated that SNHG4 played an oncogenic role in CRC cells, which prompted us to perform further verification of the functional phenotype in vivo in a zebrafish xenograft model via siRNA-mediated knockdown.

Silencing SNHG4 inhibited the proliferation and migration of CRC cells in the zebrafish xenograft model based on stereo microscopy and confocal microscopy

We performed in vivo tests in the zebrafish xenograft model to verify whether silencing SNHG4 by siRNA affected the function of CRC by transplanting HCT116 cells transfected with si-SNHG4 into zebrafish embryos. Cells transfected with si-SNHG4 or NC were labeled with fluorescent dye (CM-DiI), and approximately 300 cells were then injected into the PVS of 48-hpf zebrafish larvae. At 1 dpi, we collected similar-sized fluorescent areas from the transplanted zebrafish larvae via fluorescence stereo microscopy. At 4 dpi, the images were acquired, which included the yolk and trunk of the zebrafish. The CM-DiI positive signals of the zebrafish yolk and trunk were quantified, with the tumor area of the yolk and trunk representing the proliferation and migration of cells, respectively (5,39). The bright field image of zebrafish at 4 dpi was photographed through stereo microscopy (Figure 3A). The results showed that the CM-DiI positive area of the silenced-SNHG4 yolk and trunk was obviously smaller than the NC group (Figure 3B,3C), demonstrating that proliferation and migration were decreased after silencing SNHG4 in HCT116 cells (Figure 3D,3E). The results of the zebrafish xenograft model were consistent with the data from the in vitro experiments, verifying the oncogenic role of SNHG4 in CRC.

Figure 3 Stereo and confocal microscopy show silencing SNHG4 inhibits the proliferation and migration of HCT116 cells in zebrafish xenografts. (A) The bright field image of zebrafish larvae at 4 dpi; (B,C) the CM-DiI-positive signals in the yolk and trunk of zebrafish were imaged via stereo microscopy and the areas were quantified for proliferation and migration of HCT116 cells after silencing SNHG4, scale: 500 µm; (D) statistical analysis of proliferation after silencing SNHG4 compared to NC; (E) statistical analysis of migration after silencing SNHG4 compared to NC; (F,G) the CM-DiI-positive signals in the yolk and trunk of zebrafish were imaged via confocal microscopy, scale: 100 µm. **, P<0.01. The red spots indicated the cells were labeled by CM-DiI. The green area is the blood vessels which express the EGFP; NC, negative control; EGFP, enhanced green fluorescent protein.

In addition, we used confocal microscopy to exclude the few nonspecific signals and acquire high-resolution images. In this test, we injected the CM-DiI labeled cells into Tg(fli1a:EGFP) zebrafish larvae, which contain enhanced green fluorescent protein (EGFP)-labeled vascular endothelial cells, and we simultaneously observed angiogenesis. At 4 dpi, we imaged the xenografts using multilayer scanning (Figure 3F,3G). By analyzing the confocal images, we found cell proliferation and migration significantly decreased after silencing SNHG4, although a few noncell spots existed in CM-DiI-positive signals in the yolk and trunk compared with the stereo microscopy images.

These results verified the functional phenotype after silencing SNHG4 in vivo in a zebrafish xenograft model, demonstrating that this model could be used to research the function of SNHG4 in CRC.

Detection of EMT-related genes after silencing SNHG4

After silencing SNHG4 in HCT116 cells, we detected mRNA levels of EMT-related genes by qPCR. These genes contained N-cadherin, E-cadherin, Vimentin, MMP2, MMP9, MAPK1. Compared to the NC group, the mRNA level of E-cadherin was significantly upregulated and N-cadherin was obviously downregulated in the SNHG4-silenced group, while there was no significant difference in the mRNA levels of Vimentin, MMP2, MMP9, and MAPK1 (Figure 4). These results indicated that SNHG4 participated in migration in HCT116 cells by regulating EMT-related genes.

Figure 4 The relative mRNA expressions of EMT-related genes after SNHG4 silencing were detected by qRT-PCR in HCT116 cells. *, P<0.05; **, P<0.01. EMT, epithelial mesenchymal transition; qRT-PCR, quantitative reverse transcription polymerase chain reaction.

Discussion

In this study, we found SNHG4 was upregulated in CRC tissues and cell lines. Moreover, cell proliferation and migration were suppressed after silencing SNHG4 in vitro. Meanwhile, the functional phenotype was verified in zebrafish xenografts using stereo and confocal microscopy and was consistent with the in vitro results. These data showed that SNHG4 played an oncogenic role in CRC and strongly suggested that zebrafish xenograft was a reliable model for functional research of lncRNAs in human cancer. In addition, we detected EMT-related genes after silencing SNHG4, which upregulated E-cadherin and downregulated N-cadherin in HCT116 cells. These results demonstrated that SNHG4 knockdown inhibited EMT, which contributed to our understanding of the underlying mechanism of SNHG4 in CRC.

Numerous recent studies have indicated that lncRNAs play a crucial role in the development and progression of human cancer. In CRC, the biological functions of several lncRNAs have been reported, including GAS5, LINRIS, GLCC1, and NEAT1 (40-43). The role of SNHG4 has been investigated in many types of cancers, such as osteosarcoma, lung cancer, prostate cancer, glioblastoma, and cervical cancer, and SNHG4 has been reported to be involved in human cancer progression, including proliferation, migration, invasion, and apoptosis (27,32-34,44). In lung cancer and neuroblastoma, silencing SNHG4 suppressed EMT to inhibit tumor metastasis (32,35). EMT is a complicated cellular process, which the epithelial cells acquired a mesenchymal phenotype and plays an important role in the development of tumor metastasis. Some lncRNAs have been shown to regulate EMT-related genes involved in the progression of CRC (45). In our study, we similarly detected EMT-related genes after silencing SNHG4 in CRC, suggesting that SNHG4 might be involved in the progression of CRC by EMT. These results further contributed to our understanding of the underlying mechanisms of SNHG4 in CRC.

In our study, we used zebrafish xenografts as an in vivo tool to investigate the role of SNHG4 in the proliferation and migration of CRC cells. Compared with mouse models, zebrafish xenografts have unique advantages. First, a zebrafish xenograft offers speed in tumor biology studies. The proliferation and migration of tumor cells can be evaluated 4 days after transplantation, while mouse xenografts require 2–4 weeks and must be transfected with short hairpin RNA (shRNA). Second, after transplantation of tumor cells, growth and migration can be visualized simultaneously in vivo in zebrafish larvae (46). Further, the development of tumor cells at early stages can also be monitored in vivo, which is not possible in mouse models. Third, due to the transparent nature of zebrafish larvae, tumor cell behavior can be detected at the single-cell level in zebrafish xenografts in vivo. With the rapid development of imaging technology, including high-resolution, timely, and 3-dimensional (3D) imaging, the interaction of different cells in the tumor microenvironment or the interaction between tumor cells and other cells can be observed and imaged in vivo (6). Lastly, the operating procedures of using a zebrafish model is relatively simple compared to a mouse model. Cells are injected into the PVS of zebrafish larvae, while tail vein injection, which is a more difficult procedure, is performed in a mouse model (47).

On the basis of these advantages, zebrafish xenografts have been used for drug screening in vivo, including cetuximab and regorafenib for CRC therapy. Cetuximab was found to induce apoptosis of xenografts after Hke3 and HCT116 cells were transplanted into zebrafish, and regorafenib induced apoptosis and antiangiogenic activity after transplantation of HT29 cells (5). The effects of cetuximab and regorafenib could be observed in zebrafish in vivo in a short time, suggesting that the zebrafish xenograft model is an effective and fast in vivo model for drug testing in human cancer.

In addition, human CRC cells have been successfully transplanted into zebrafish, with blood vessels observed at 4 dpi (5). In our study, we used Tg(fli1a:EGFP) zebrafish larvae to evaluate vascular change in zebrafish xenografts after transplanting CRC cells. Due to insufficient accurate data, we did not observe obvious blood vessel changes. However, these data suggested that a zebrafish model could be used to research the interactions between the tumor cells and the microenvironment. These findings strongly indicated that the zebrafish xenograft is a reliable and promising model for human cancer research.


Acknowledgments

Funding: None.


Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://jgo.amegroups.com/article/view/10.21037/jgo-21-832/rc

Data Sharing Statement: Available at https://jgo.amegroups.com/article/view/10.21037/jgo-21-832/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jgo.amegroups.com/article/view/10.21037/jgo-21-832/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Experiments were performed under a project license (No. HEYLL201935) granted by Affiliated Huai’an Hospital of Xuzhou Medical University, in compliance with the Affiliated Huai’an Hospital of Xuzhou Medical University institutional guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
