CBX3 is associated with metastasis and glutathione/glycosphingolipid metabolism in colon adenocarcinoma
Introduction
Metastasis is a major cause of death for patients with colon adenocarcinoma (COAD) (1). Current standard treatments, including surgery and chemotherapy, have prolonged overall survival time of COAD patients, but more than 50% still experience metastasis after treatment (2). The identification of potential targets for inhibiting tumor metastasis and improving prognosis is urgently needed. Previous studies mainly focused on using whole genome/exome sequencing and found that COAD progression is an accumulation of mutations in pivotal genes regulating tumor-associated pathways. For instance, the APC mutation, which is found in more than 70% of colon cancer patients, is thought to be an initiating event for carcinogenesis in COAD (3). The TP53 and KRAS mutations may promote COAD progression to resistance to chemotherapy (4) and cetuximab treatment (5), respectively. However, recent research pointed out that the epigenetics and downstream change of gene expression, which endows tumors with plasticity and fitness to microenvironment stress (6), act as a major role in promoting COAD progression, metastasis, and recurrence. Increasingly, studies are concluding that tumor development is similar to embryonic development (7,8). Key development signaling pathways, such as the Wnt pathway, have been found to participate in tumor initiation, progression, and metastasis (9). Therefore, dissecting the dysregulation of key genes associating with COAD may provide a new strategy for the discovery of potential treatment targets (10).
Chromobox protein homolog 3 (CBX3) is a member of the heterochromatin protein 1 (HP1) family and is involved in cell differentiation, growth, and transcriptional regulation (11). Previous studies have demonstrated that CBX3 is highly overexpressed in many cancer types and is associated with tumorigenesis and treatment resistance (12-14). Recently, several studies have demonstrated that CBX family is a potential prognostic biomarker for colon tumor (15,16). For instance, Ma et al. (17) conducted an in vitro assay to reveal that CBX3 could regulate tumor cell proliferation. Knocking down CBX3 led to an increase in apoptosis and cell cycle arrest in osteosarcoma cells. A similar result was also observed by Lin et al. in gastric cancer (13), where knocking down CBX3 significantly inhibited the malignant phenotype and migration. Collectively, these findings suggested that CBX3 was associated with tumor progression. However, the function of CBX3 in COAD, especially its potential influence on tumor progression and metastasis, has not been verified. We designed this study to elucidate the association between CBX3 and metastasis in COAD. We present the following article in accordance with the REMARK reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-97/rc).
Methods
Data collection
The Cancer Genome Atlas (TCGA) COAD datasets were available from University of California Santa Cruz (UCSC) Xena (
Single-cell RNA-seq data analysis
Single-cell RNA-seq (scRNA-seq) data analysis was performed by the Seurat package in R (version 3.2.3) (21). All cells were first subjected to clustering through the K-means algorithm with parameter resolution =0.2. Malignant-like cell clusters were then identified by tumor markers, including epithelial cell adhesion molecule (EpCAM) and keratin 8 (KRT8). Only the clusters whose proportion of cells expressing EpCAM and KRT8 was greater than 50% were labeled as malignant-like tumor cell clusters.
ChIP-seq data analysis
Chromatin immunoprecipitation sequencing (ChIP-seq) data were available from ChIP-Atlas (
Statistical analysis
We used the Wilcoxon rank-sum test and Student’s t-test (for continuous quantitative variables) or Fisher’s exact test (for categorical variables) to compare differences between groups. Survival analysis methods, including Kaplan-Meier plots and Cox proportional hazards models, were used to estimate the effect of CBX3 on clinical outcome. Analyses were carried out using statistical software R. All figures were plotted by ggplot2 package.
Results

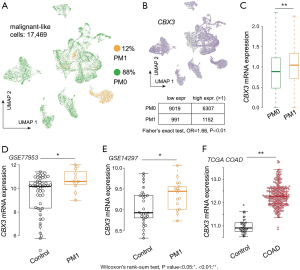

CBX3 is overexpressed in primary metastatic COAD
To explore the differential expression of CBX3 in primary COAD with metastasis (PM1) and without metastasis (PM0), we first collected an scRNA-seq profile consisting of 47,285 cells derived from 23 COAD samples (GSE132465), including 2 diagnosed with PM1. We clustered these cells using K-means algorithm and filtered out tumor cells through EpCAM and KRT8 (18), resulting in 17,469 malignant-like cells (Figure 1A). PM1 cells comprised 12% of these malignant-like cells. The proportion of PM1 cells with high expression of CBX3 was 53.8%, which was significantly higher than that of PM0 cells (41.2%) [Fisher’s exact test, odds ratio (OR) =1.66, P<0.01] (Figure 1B). The average mRNA expression of CBX3 in PM1 cells was also significantly higher than that in PM0 cells (Student’s t-test, P<0.01) (Figure 1C). This finding was further confirmed by 2 independent data sets derived from Qu et al. (19) and Stange et al. (20), in which CBX3 mRNA level in PM1 was also higher than that of the control group (Student’s t-test, P<0.05) (Figure 1D,1E). Finally, we analyzed the expression of CBX3 in the mRNA profile from the TCGA COAD dataset and found that the CBX3 was significantly expressed in tumor tissues compared with adjacent normal tissues or peripheral blood (P<0.01) (Figure 1F). Collectively, these findings suggested that CBX3 was associated with COAD metastasis.

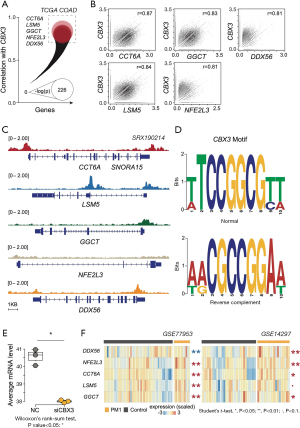

CBX3 is associated with regulating CCT6A, LSM5, and GGCT
Next, we considered how CBX3 performed its role in COAD. A coexpression profile for CBX3 and genes based on the TCGA COAD dataset was generated through Pearson’s correlation test in total online: https://cdn.amegroups.cn/static/public/jgo-22-97-1.pdf. We focused on analyzing the top 5 genes with the highest correlation coefficients, including chaperonin-containing TCP1 subunit 6A (CCT6A), Like Sm 5 (LSM5), gamma-glutamylcyclotransferase (GGCT), nuclear factor (erythroid 2)-like factor 3 (NFE2L3), and DEAD-Box Helicase 56 (DDX56) (Figure 2A). Interestingly, CCT6A is a member of the chaperonin-containing TCP1 complex. In a study conducted by Ying et al. (22), CCT6A was found to act as an inhibitor to suppress SMAD family member 2 (SMAD2) and switch transforming growth factor beta (TGF-β) signaling to promote metastasis. GGCT is involved in glutathione homeostasis, and it has been reported (23) that knocking down GGCT could efficiently reduce colony formation and proliferation of tumor cells.
We further analyzed the 5 genes in the scRNA-seq dataset and confirmed that all showed a significant correlation with CBX3 expression (r>0.8, P<0.01) across malignant-like cells (Figure 2B). Encouraged by these findings, we then considered whether CBX3 could regulate these genes. We performed ChIP-seq analysis based on a colon cancer cell line (SRX190214) derived from ChIP-Atlas (24). Notably, with the exception of NFE2L3, the genes were detected with CBX3 binding sites upstream of the promoter (<1 KB) (Figure 2C). The binding pattern predicted by Multiple EM for Motif Elicitation (MEME) (25) is shown in Figure 2D. We also collected an mRNA profile derived from a set of cell lines treated with CBX3 small interfering RNA (siRNA) or control siRNA (GSE173858). As expected, we found that the average of 5 genes showed a significant decrease in the siCBX3 group (Wilcoxon’s rank-sum test, P<0.05) (Figure 2E), suggesting that CBX3 could regulate the mRNA level of these genes. Further, by exploring the expression of these genes in 2 independent data sets derived from Qu et al. (19) and Stange et al. (20), we found that except for DDX56, the genes showed a higher mRNA level in the PM1 group (Figure 2F). Taken together, these findings implied that CBX3 regulated CCT6A, LSM5, and GGCT expression in COAD.

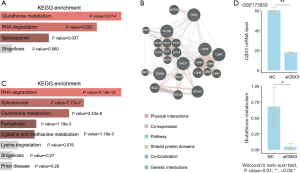

CBX3 is involved in glutathione metabolism
Since we had identified a series of genes potentially regulated by CBX3, we further characterized the function of these genes. Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis [via Enrichr (26)] demonstrated that glutathione metabolism, which is an important antioxidant involved in regulating carcinogenesis and progression (27), was significantly associated with the gene set (P=0.011) (Figure 3A). Moreover, we constructed a gene-gene interaction network based on these genes and CBX3 through the GeneMANIA tool (28) (Figure 3B). The interaction network showed 2 distinct modules, including the TCP1 complex (CCT), and the LSM family (Figure 3B). CCT is involved in intracellular protein folding. Recent studies have revealed that CCT could regulate several signaling pathways to promote cancer metastasis, such as the Wnt7b/β-catenin pathway and the protein kinase B (AKT)/glycogen synthase kinase 3 beta (GSK3β)/β-catenin pathway (29,30). The LSM family participates in splicing and cytoplasmic mRNA degradation. It has been reported that the LSM family could promote epithelial-mesenchymal-transition (EMT) and drive tumor metastasis (31). By integrating all of the genes on the network into KEGG pathway enrichment analysis, we found that glutathione metabolism was presented with high significance (P=6.04e-7) (Figure 3C), suggesting that CBX3 may drive glutathione metabolism. To validate the impact of CBX3 on glutathione metabolism, we applied the analysis to the mRNA profile derived from a set of cell lines treated with CBX3 small interfering RNA (siRNA) or control siRNA (GSE173858). As expected, we found that the glutathione metabolism signature score, which was predicted by single-sample Gene Set Enrichment Analysis (ssGSEA) algorithm (32), showed a remarkable decrease in the CBX3 siRNA group (Figure 3D).

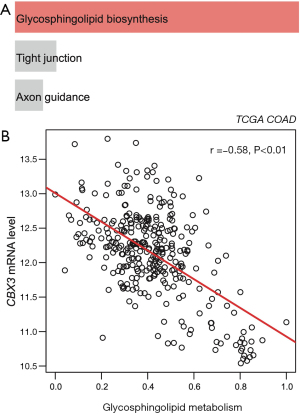

CBX3 is involved in glycosphingolipid metabolism
It is well known that HP1 is involved in controlling DNA methylation and regulating the impact of DNA methylation on alternative splicing. Hence, we explored the specific DNA methylations associated with CBX3. We divided the samples from TCGA COAD into 2 groups according to the mRNA level of CBX3. By performing Wilcoxon’s rank-sum test analysis, we identified 12 hypermethylation probes relating to 10 genes (Table 1). Interestingly, these genes were significantly enriched on glycosphingolipid biosynthesis (P=0.0223) (Figure 4A). Glycosphingolipids play an important role as receptors in cell invasion. Several studies have demonstrated that cells conduct epithelial-to-mesenchymal transition by dynamically decreasing glycosphingolipid biosynthesis. Furthermore, analysis based on TCGA COAD showed that CBX3 mRNA level was negatively correlated with glycosphingolipid metabolism (r=−0.58, P<0.01) (Figure 4B), suggesting that CBX3 may be associated with the suppression of glycosphingolipid metabolism.
Table 1
Chromosome | Position | Strand | Name | Relation to island | Gene name |
---|---|---|---|---|---|
14 | 91580429 | − | cg26288577 | OpenSea | C14orf159 |
3 | 134083080 | + | cg05304177 | Island | AMOTL2 |
11 | 64108322 | − | cg12043314 | N_Shore | CCDC88B |
2 | 27165781 | + | cg14455516 | OpenSea | DPYSL5 |
14 | 105144033 | + | cg24015081 | N_Shore | – |
1 | 154971922 | + | cg10445911 | Island | – |
6 | 33244976 | − | cg21333861 | Island | B3GALT4 |
19 | 1248287 | + | cg02986494 | Island | MIDN |
19 | 18118079 | + | cg18096253 | Island | ARRDC2 |
11 | 58912236 | + | cg14058754 | S_Shore | FAM111A |
11 | 2292636 | − | cg06347739 | Island | ASCL2 |
16 | 88803885 | − | cg00973732 | Island | FAM38A |
CBX3, chromobox protein homolog 3.

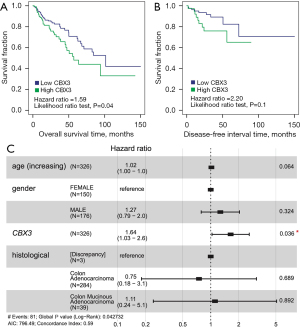

Patients with high CBX3 expression show poor prognosis
Finally, we evaluated the clinical features of CBX3. By dividing cases in the TCGA COAD dataset into 2 groups based on CBX3 level (high group: top 33%; low group: bottom 67%), we found that cases with high CBX3 levels had a nearly 2-fold shorter median survival time than those in the control group [hazard ratio (HR) =1.59; likelihood ratio test, P=0.04] (Figure 5A). Additionally, when we focused solely on disease-free interval time, we found that the cases with high CBX3 still had a shorter time than the control group (HR =2.20, likelihood ratio test, P=0.1) (Figure 5B). Further, multivariate analysis controlling for age, gender, and histological type suggested that CBX3 was an independent prognostic factor [HR =1.64, 95% confidence interval (CI): 1.03–2.6, P=0.036] (Figure 5C).
Discussion
Metastasis is the primary cause of COAD mortality (33), and the identification of potential targets for inhibiting progression is urgently needed. The COAD metastasis may be caused by a series of processes, including angiogenesis, microenvironment remodeling, the epithelial-mesenchymal transition, etc. (1). Especially, the reshaping of the tumor microenvironment is considered to be an essential component during tumor metastasis (34), which may be regulated by TGF- β and other cytokines (35,36). On the one hand, these cytokines function as an immunosuppressive factor to inhibit the activity of immune cells, such as natural killer cells, etc. (1,36). On the other hand, these molecules also accelerate epithelial-mesenchymal transition to promote tumor metastasis (37). Hence, it is essential to identify the potential upstream regulators, which may help deepen our understanding of such a metastasis process.
Our study suggested that CBX3 was associated with COAD metastasis. Patients with high CBX3 had a shorter overall survival time. However, the downstream regulation axis of CBX3-driven metastasis remains to be further explained. One possible clue promoting metastasis may be attributed to CCT6A since it is a component of the chaperonin containing TCP1 complex and has been confirmed to switch TGF-β signaling to promote metastasis. In our study, the results of ChIP-seq analysis coupled with correlation analysis indicated that CBX3 could regulate CCT6A expression, suggesting that the CBX3-CCT6A regulation pathway may be a potential target for inhibiting tumor metastasis.
Increasingly, studies are being drawn to the impact of tumor metabolism on metastasis (38). Our study suggested that glutathione metabolism was associated with a CBX3-driven interaction network. Glutathione is a key antioxidant associated with regulating carcinogenesis and progression. It has been reported that tumor cells require certain metabolic products, such as glutathione, to maintain reactive oxygen species (ROS) levels for supporting survival in circulation (38). Moreover, glycosphingolipid metabolism was negatively correlated with CBX3 expression, which may be associated with CBX3’s role in controlling DNA methylation. Many studies have shown that glycosphingolipid metabolism has low activity during the epithelial-to-mesenchymal transition process.
Since the aim of this study was using bioinformatics analysis to integrate multi-omics data and systematically explore the putative function of CBX3 on promoting COAD progression. One limitation of our study is a lack of in vivo and in vitro experiments to validate the findings above. In the future, we will conduct more experiments to further identify and validate the key molecules found in our study which may participate in COAD metastasis.
In conclusion, our work showed that CBX3 overexpression was associated with COAD metastasis. The CBX3 downstream regulation network involved TCP1 complex, the LSM family, and glutathione metabolism, which may provide a potential target for suppressing tumor metastasis.
