Association between progression-free survival and metal stent patency in patients with advanced pancreatic cancer
Introduction
Pancreatic cancer is the seventh leading cause of cancer mortality worldwide (1). It is one of the most fatal malignancies, with <20% of the patients being eligible for surgery at diagnosis (2). For most patients with unresectable pancreatic cancer, systemic therapy is recommended; for patients with a good performance status, a combination chemotherapy regimen is recommended (3). Although the median overall survival (OS) of patients receiving current chemotherapy regimens such as gemcitabine plus nab-paclitaxel (GnP) and fluorouracil, leucovorin, oxaliplatin, and irinotecan (FOLFIRINOX) is still <1 year (4,5), recent studies have reported that the 5-year survival rate eventually reaches double digits (6,7).
Obstructive jaundice is a common symptom in patients with pancreatic head cancer. Because it could cause cholangitis, delayed systemic treatment, and decreased quality of life (8), biliary drainage is necessary in most cases. In patients with unresectable pancreatic cancer, self-expandable metal stents (SEMSs) have been regarded as superior to plastic stents because of their longer patency (9,10). However, SEMS revision is inevitable in the era of recently introduced chemotherapy regimens such as GnP and FOLFIRINOX because of a longer survival than that noted with previous regimens. Considering the deconditioning of patients with stent dysfunction, predicting stent patency and revision time in patients receiving recent chemotherapy is essential; however, knowledge regarding the clinical factors affecting the duration of stent patency in these patients remains obscure.
This study aimed to assess the clinical factors associated with SEMS patency in patients with advanced pancreatic cancer who received GnP or FOLFIRINOX. We present the following article in accordance with the STROBE reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-218/rc).
Methods
Patients
Between January 2012 and June 2021, the medical records of a total of 843 patients diagnosed with pancreatic cancer at Seoul National University Bundang Hospital and Seoul Metropolitan Government-Seoul National University Boramae Medical Center, were reviewed retrospectively.
The inclusion criteria were as follows: (I) diagnosis of unresectable pancreatic cancer, including locally advanced pancreatic cancer (LAPC) or metastatic pancreatic cancer (MPC); (II) initial chemotherapy with GnP or FOLFIRINOX; and (III) endoscopic or percutaneous SEMS insertion within 1 month before or after initial chemotherapy. The exclusion criteria in this study were as follows: (I) surgery, radiation, or other chemotherapy regimens used as the first-line treatment; (II) other biliary drainage before SEMS insertion; and (III) SEMS insertion 1 month before or after initial chemotherapy.

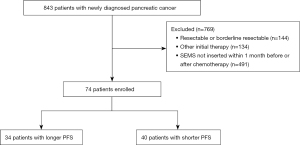

Of the 843 patients with pancreatic cancer, 769 were excluded for the following reasons: 144 had resectable or borderline resectable pancreatic cancer, 134 received initial therapy regimen other than FOLFIRINOX or GnP, and 491 did not undergo SEMS insertion within 1 month before or after chemotherapy. Finally, 74 patients who met the study inclusion criteria were enrolled in this study (Figure 1). This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was reviewed and approved by the Institutional Review Board of Seoul National University Bundang Hospital and Seoul Metropolitan Government-Seoul National University Boramae Medical Center (IRB Nos. B-2104/677-104 and 30-2021-107) and the requirement of informed consent from patients was waived because of the retrospective nature of the study.
Definition
Pancreatic cancer staging was performed according to the National Comprehensive Cancer Network criteria (3). The duration of SEMS patency was defined as the time between SEMS insertion and occlusion or revision. The cases of scheduled stent revision without stent dysfunction were censored. The median progression-free survival (PFS) of patients with MPC receiving FOLFIRINOX or GnP as the first-line chemotherapy ranged from 5.5 to 6.4 months (4,5). The median PFS of patients with LAPC receiving FOLFIRINOX or GnP ranged from 7 to 8 months (11). Compared with the aforementioned previous studies (4,5,11), the median PFS in our study was 6.4 months; longer PFS and shorter PFS were defined as PFS ≥7 months and PFS <7 months, respectively. Disease progression was assessed using the Response Evaluation Criteria in Solid Tumors, version 1.1 (12). The primary endpoint of this study was the duration of SEMS patency based on the clinical parameters. The secondary endpoint was the strength of association between the duration of SEMS patency and clinical parameters.
Statistical analysis
The factors associated with SEMS patency were identified using Cox regression analysis with backward elimination. Data with a P value of <0.05 in univariate analysis were included in the multivariate analysis. The Kaplan-Meier method was used to compare the duration of SEMS patency. Categorical variables were evaluated using Fisher’s exact test. The coefficient of determination (R-squared value) was used to determine the correlation between the duration of stent patency and PFS. R-squared to 1 implies a perfect relationship between the data and the model (13). The R-squared values of <0.3, 0.3–0.5, 0.5–0.7, and >0.7 indicated none or feeble, weak or low, moderate, and strong effect sizes, respectively (14). All statistical analyses were performed using the SPSS software (version 19.0; IBM SPSS Statistics for Windows, IBM Corp., Armonk, NY, USA).
Results
Patient characteristics
This study included a total of 74 patients; the baseline characteristics of these patients are outlined in Table 1. The mean age of the patients was 66.2 [95% confidence interval (CI), 63.7–68.6] years, and 38 patients (51.4%) were male. Of the patients, 28 (37.8%) were diagnosed with LAPC and 46 (62.2%) with MPC. The major cancer type was adenocarcinoma (93.2%). The initial serum levels of total bilirubin and carbohydrate antigen (CA) 19-9 were 7.2 (95% CI, 5.7–8.7) mg/dL and 1,442.8 (95% CI, 586.7–2,299.0) U/mL, respectively.
Table 1
| Characteristics | Results |
|---|---|
| Age (years), mean (95% CI) | 66.2 (63.7–68.6) |
| Age (years), n (%) | |
| <70 | 46 (62.2) |
| ≥70 | 28 (47.8) |
| Sex, n (%) | |
| Male | 38 (51.4) |
| Female | 36 (48.6) |
| Clinical stage, n (%) | |
| LAPC | 28 (37.8) |
| MPC | 46 (62.2) |
| Cell type, n (%) | |
| Adenocarcinoma | 69 (93.2) |
| Poorly differentiated carcinoma | 2 (2.7) |
| Adenosquamous carcinoma | 1 (1.4) |
| Biopsy not proven | 2 (2.7) |
| Total bilirubin (mg/dL), mean (95% CI) | 7.2 (5.7–8.7) |
| CA 19-9 (U/mL), mean (95% CI) | 1,442.8 (586.7–2,299.0) |
| CA 19-9 (U/mL), n (%) | |
| <37 | 16 (21.6) |
| ≥37 | 57 (77.0) |
| First-line chemotherapy, n (%) | |
| GnP | 16 (21.6) |
| FOLFIRINOX | 58 (78.4) |
| Stent insertion method, n (%) | |
| Endoscopic | 61 (82.4) |
| Percutaneous | 13 (17.6) |
| Stent diameter (mm), n (%) | |
| 8 | 9 (12.2) |
| 10 | 65 (87.8) |
| Metal stent type, n (%) | |
| Covered | 9 (12.2) |
| Uncovered | 65 (87.8) |
| Stent revision, n (%) | |
| Yes | 39 (52.7) |
| No | 35 (47.3) |
| Cause of stent revision, n (%) | |
| Tumor ingrowth or overgrowth | 20 (51.3) |
| Sludge formation | 15 (38.5) |
| Stent migration | 1 (2.6) |
| Unknown | 3 (7.7) |
| Stent insertion-chemotherapy period (days), median (range) | 4.0 (−30 to 30) |
| Duration of stent patency (months), median (IQR) | 6.9 (4.5–12.9) |
| PFS (months), median (IQR) | 6.4 (4.2–12.5) |
| PFS (months), n (%) | |
| <7 | 40 (54.1) |
| ≥7 | 34 (45.9) |
| OS (months), median (IQR) | 10.5 (6.7–16.5) |
| Follow-up period (months), median (range) | 14 (1.9–36.7) |
CI, confidence interval; LAPC, locally advanced pancreatic cancer; MPC, metastatic pancreatic cancer; CA, carbohydrate antigen; GnP, gemcitabine plus nab-paclitaxel; FOLFIRINOX, fluorouracil, leucovorin, oxaliplatin, and irinotecan; IQR, interquartile range; PFS, progression-free survival; OS, overall survival.
Regarding the chemotherapy regimen, 16 patients (21.6%) received GnP and 58 (78.4%) received FOLFIRINOX as the initial chemotherapy. Of the patients, 61 (82.4%) underwent endoscopic SEMS insertion; the others underwent percutaneous SEMS insertion. Regarding stent characteristics, a 10-mm-diameter and uncovered SEMS was most commonly used (65, 87.8%), respectively. At the 14.0-month follow-up, 39 patients (52.7%) required stent revision. The most common cause of stent revision was tumor ingrowth or overgrowth (51.3%), followed by sludge formation (38.5%) and stent migration (2.6%). The causes of stent revision did not vary between the LAPC and MPC groups (tumor ingrowth or overgrowth: 63.6% vs. 46.4%, P=0.142; sludge formation: 27.2% vs. 42.9%, P=0.795; stent migration: 0% vs. 3.6%, P>0.99). The median stent patency and PFS were 6.9 [interquartile range (IQR), 4.5–12.9] and 6.4 (IQR, 4.2–12.5) months, respectively. The median OS was 10.5 (IQR, 6.7–16.5) months.
Factors affecting the duration of stent patency
In the univariate analysis of stent patency, age ≥70 years, metastatic cancer, CA 19-9 level ≥37 U/mL, and shorter PFS were noted to be associated with the duration of SEMS patency. In the multivariate analysis, metastatic cancer and shorter PFS were associated with the duration of SEMS patency with hazard ratios of 2.412 (95% CI, 1.159–5.018; P=0.019) and 2.117 (95% CI, 1.020–4.393; P=0.044), respectively (Table 2).
Table 2
| Variables | Univariate analysis | Multivariate analysis | |||
|---|---|---|---|---|---|
| HR (95% CI) | P | HR (95% CI) | P | ||
| Age (years) | |||||
| ≤70 | Ref | Ref | |||
| >70 | 0.467 (0.233–0.935) | 0.032 | 0.540 (0.263–1.106) | 0.092 | |
| Sex | |||||
| Male | Ref | ||||
| Female | 0.980 (0.519–1.850) | 0.951 | |||
| Clinical stage | |||||
| LAPC | Ref | Ref | |||
| MPC | 2.661 (1.289–5.495) | 0.008 | 2.412 (1.159–5.018) | 0.019 | |
| First-line chemotherapy | |||||
| GnP | Ref | ||||
| FOLFIRINOX | 0.794 (0.385–1.638) | 0.532 | |||
| Stent insertion method | |||||
| Endoscopic | Ref | ||||
| Percutaneous | 1.140 (0.500–2.598) | 0.755 | |||
| Stent diameter (mm) | |||||
| 8 | Ref | ||||
| 10 | 1.262 (0.445–3.582) | 0.662 | |||
| CA 19-9 (U/mL) | |||||
| <37.0 | Ref | Ref | |||
| ≥37.0 | 0.443 (0.221–0.889) | 0.022 | 0.511 (0.251–1.040) | 0.064 | |
| PFS (months) | |||||
| ≥7 | Ref | Ref | |||
| <7 | 2.465 (1.198–5.073) | 0.014 | 2.117 (1.020–4.393) | 0.044 | |
| Type of metal stent | |||||
| Covered | Ref | ||||
| Uncovered | 1.067 (0.377–3.016) | 0.903 | |||
LAPC, locally advanced pancreatic cancer; MPC, metastatic pancreatic cancer; GnP, gemcitabine plus nab-paclitaxel; FOLFIRINOX, fluorouracil, leucovorin, oxaliplatin, and irinotecan; CA, carbohydrate antigen; PFS, progression-free survival; HR, hazard ratio; CI, confidence interval.
Association between SEMS patency and chemotherapy response or clinical stage

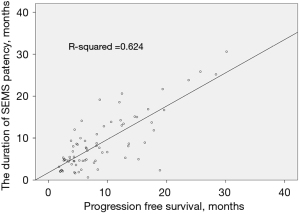

The association between SEMS patency and PFS was evaluated using scatter plots (Figure 2). The coefficient of determination between SEMS patency and PFS was 0.624 (moderate effect size). When SEMS patency was compared between the longer and shorter PFS groups (Figure 3A), the median SEMS patency of the longer PFS group was found to be significantly longer than that of the shorter PFS group (14.3 vs. 7.0 months; P=0.012). When SEMS patency was compared between patients with LAPC and those with MPC (Figure 3B), the median SEMS patency of the LAPC group was significantly longer than that of the MPC group (16.7 vs. 7.0 months; P=0.006).
Discussion
Before the introduction of the current preferred chemotherapy regimens such as GnP and FOLFIRINOX, the median expected survival in patients with pancreatic cancer was approximately 5–6 months (15). Considering the median patency of SEMS, which ranged from 5.5 to 9.6 months, the duration of SEMS patency was consistent with the expected survival at that time (16-19). The median stent patency in this study was 6.9 (IQR, 4.5–12.9) months, which was also consistent with that of previous studies (16-19). However, SEMS revision is necessary in many patients because patient survival has increased with the advent of the two recently introduced chemotherapy regimens. Although there were patients with not only MPC but also LAPC, the median PFS and OS in this study were 6.4 (IQR, 4.2–12.5) and 10.5 (IQR, 6.7–16.5) months, which were consistent with those of the previous studies (PFS, 5.5–6.4 months; OS, 8.5–11.1 months) (4,5). The prediction of stent dysfunction in patients receiving combination chemotherapy is challenging. Limited studies have focused on this topic; we investigated the clinical factors affecting SEMS patency in these patients.
Of the various clinical factors, SEMS patency is reportedly affected by chemotherapy regimen (20). The effective control of tumor burden using a new chemotherapy regimen may affect the SEMS patency. Compared with the previous study (20), the present study showed that SEMS patency is affected by PFS. This is likely a reflection of longer durations of initial chemotherapy resulting in a better response, thereby delaying events such as tumor ingrowth. The finding of the present study was consistent with that of a previous study in that patients’ response to chemotherapy may affect SEMS patency (20). The most common cause of SEMS occlusion is tumor ingrowth, accounting for 60–90% of all cases of SEMS occlusion, which possibly explains the findings of both the present and previous studies (21-26). The common cause of SEMS occlusion in this study was also consistent with those observed in previous studies (21-26). However, the R-squared value determined in this study indicated a moderate association between PFS and SEMS patency, which further suggested that SEMS patency is affected not only by PFS but also other clinical factors.
The metastatic stage was also found to be associated with SEMS patency in this study, which is consistent with the finding of a previous study reporting that stent patency is associated with the cancer stage in patients with unresectable pancreatic cancer (27-30). An advanced stage of pancreatic cancer may influence SEMS patency due to early death or loss to follow-up of the patients. The initial higher tumor burden may influence the shorter SEMS patency. One study hypothesized that extrapancreatic cancer affects SEMS patency; however, further studies are necessary to determine the association between tumor burden or metastasis and SEMS patency (27).
This study has some limitations. First, it was retrospective in nature and included a small number of patients with LAPC or MPC. However, the inclusion and exclusion criteria were somewhat stringent; patients who received two recent chemotherapy regimens as the first-line regimen and simultaneous SEMS insertion were enrolled in this study. Second, the types of SEMS used varied, with stent insertion performed either endoscopically or percutaneously. Moreover, the patients received either one of the two chemotherapy regimens. Finally, our study only identified the association between PFS and stent patency but did not investigate the causal relationship.
In conclusion, SEMS patency may be associated with PFS in patients with advanced pancreatic cancer who received GnP or FOLFIRINOX. Further studies on the causal relationship between PFS and the duration of SEMS patency are warranted in the future.
Acknowledgments
Funding: None.
Footnote
Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-218/rc
Data Sharing Statement: Available at available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-218/dss
Peer Review File: Available at available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-218/prf
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-218/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was reviewed and approved by the Institutional Review Board of Seoul National University Bundang Hospital and Seoul Metropolitan Government-Seoul National University Boramae Medical Center (IRB Nos. B-2104/677-104 and 30-2021-107) and the requirement of informed consent from patients was waived owing to the retrospective nature of the study.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
