Screening of key genes related to ferroptosis and a molecular interaction network analysis in colorectal cancer using machine learning and bioinformatics

Introduction

Colorectal cancer (CRC) is the 3rd most prevalent neoplasm worldwide (1). It is estimated that the global burden of CRC will increase to over 2.2 million new cases and 1.1 million annual deaths by the year 2030 (1). The 5-year survival rate of metastatic colon carcinoma patients is only 14% (2). In China, the incidence of CRC continues to increase, and it is arguably one of the most prevalent malignancies after pulmonary carcinoma in terms of morbidity and mortality (3). As CRC sufferers typically only present with signs and symptoms in the advanced stages, early detection is challenging. Conventional treatment approaches, which include surgery, chemotherapy, and immunotherapy, are all unsatisfactory (4). Thus, it is critical that more efficient biomarkers be identified to allow for the exploitation of additional potential curative targets for CRC.

As an essential trace element, iron maintains the normal metabolic functions of the body (5). It is involved in many redox reactions by regulating the activity of key enzymes and affects both cell proliferation and apoptosis. Excessive amounts of iron in cells can promote the production of lipid peroxides, which can lead to cell death (6). This cell apoptotic process cannot be inhibited by classical apoptosis inhibitors, is closely related to intracellular iron content, and is referred to as ferroptosis. Ferroptosis is a form of cell death in which large amounts of iron accumulate and lipid peroxidation. Ferroptosis is closely related to the pathophysiological processes of many diseases, including tumors, neurological diseases, and iron metabolism diseases (7). Recent study has found that ferroptosis is closely related to tumor cell proliferation (8). Ferroptosis is a novel kind of cell death that differs from autophagy and apoptosis in that it is iron-dependent and reactive oxygen species (ROS)-dependent. It presents as an iron-dependent accumulation of intracellular lipid ROS, ferroptosis can be triggered by various physiological conditions and pathological stresses and plays a key role in tumorigenesis (9). Ferroptosis can lead to a chronic inflammatory state, which is closely related to the development of tumors. To help neighboring tumor cells survive or evade immunity, tumor cells in the blood and tumor-infiltrating immune cells can produce immunosuppressive mediators such as prostaglandin E2 (PGE2), thereby suppressing anti-tumor immunity and ultimately promoting tumor growth (10). As our understanding of ferroptosis has increased, research into its role in digestive system tumors has continued to intensify (11). A recent study showed that ferroptosis is involved in the development of hepatocellular carcinoma (12). RSL3 is a ferroptosis activator that can trigger ferroptosis in CRC cells by inhibiting the expression of GPX4, increasing the expression of transferrin, and promoting the accumulation of intracellular ROS (13). Propofol is a commonly used clinical intravenous anesthetic, which can inhibit the expression of GPX4 in colorectal tumor cells, while increasing the levels of Fe²⁺ and ROS, thereby stimulating ferroptosis and inhibiting the growth and proliferation of tumor cells (14). Another study found that ferroptosis is significantly suppressed in gastric cancer, leading to reduced tumor growth and reduced sensitivity to cisplatin and paclitaxel (15). Further, recent studies have shown that ferroptosis is closely related to colon cancer (13).

Based on these findings, many researchers view the molecular prognostic model of ferroptosis-related genes as a prognostic biomarker for cancer patients. Previous research on tumor ferroptosis has primarily focused on scanning relevant databases using bioinformatics analyses to identify any abnormally expressed ferroptosis-related genes that are closely associated with malignancies (16-18). Machine learning is the primary way to implement human intelligence and aims to develop algorithms that can automatically learn from data (19). It can use complex arithmetic to capture large datasets with multidimensional variables to obtain high-dimensional, non-linear relationships between clinical characteristics and make outcome predictions. In this study, a machine-learning analysis was conducted to identify the important genes and molecular interaction networks associated with ferroptosis in CRC.

Methods

Data download

The Gene Expression Omnibus (GEO) datasets for CRC were downloaded from the National Center for Biotechnology Information (NCBI). Detailed information (https://www.ncbi.nlm.nih.gov/) about the 3 downloaded datasets is presented in Table 1. In total, 291 ferroptosis-related genes were downloaded from FerrDb (http://www.zhounan.org/ferrdb/current/) and Gene Cards (https://www.genecards.org). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Identification of the ferroptosis-related differentially expressed genes (DEGs)

The COADREAD (Colon and Rectal Cancer) dataset comprised 380 CRC samples and 51 normal samples of cancer tissues and para-cancerous tissues, respectively. The gene symbol expression profile data were downloaded from University of California Santa Cruz Xena (https://xenabrowser.net/datapages/) along with the survival information. The dataset was normalized, and differences between the CRC and normal data were then analyzed using the “limma” package (https://bioconductor.org/packages/release/bioc/html/limma.html). The following threshold was set: an adjusted P value <0.05 and a |log fold change (FC)| >1. The 291 ferroptosis-related genes were intersected with the 262 differential genes to obtain the ferroptosis-related differential expressed genes, of which 11 were ferroptosis-related DEGs. The results were then plotted using the “ggplot2” package (https://cran.r-project.org/web/packages/ggplot2/index.html).

The gene identification expression profile data of the 2 datasets (i.e., GSE32323 and GSE113513) were downloaded from the NCBI and annotated into GeneSymbol using the GPL570 annotation file (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE32323; https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE113513). The datasets were then normalized, and grouped as CRC or normal using the “limma” package for the analysis of variance. The following threshold was set: an adjusted P value <0.05 and a |log FC| >1.

Correlation analysis

The expression profiles of the ferroptosis-related DEGs from the COADREAD dataset were extracted, and the correlations between the genes were calculated using the “corr function” in R (20). The Spearman algorithm (https://rpubs.com/aaronsc32/spearman-rank-correlation) was used. The “ggcorrplot” package was then used to create the plots. The expression profiles of the ferroptosis-related DEGs from the COADREAD dataset were calculated and plotted. The Pearson correlation algorithm (http://www.sthda.com/english/wiki/correlation-test-between-two-variables-in-r) was used. The following correlation threshold was set: a correlated value >0.7 and a P value <0.05.

Machine learning

The ferroptosis-related DEG profiles in the COADREAD dataset were extracted, and the samples were divided into the training and test sets using an 8:2 ratio. The least absolute shrinkage and selection operator (LASSO) regression model was also constructed using the “glmnet” package (https://cran.r-project.org/web/packages/glmnet/index.html) to identify the characteristic genes with non-zero coefficients (16). The ferroptosis-related DEG profiles from the COADREAD dataset were extracted, a 5-fold cross-validation was performed using the R language “rfeControl” package (https://search.r-project.org/CRAN/refmans/caret/html/rfeControl.html), and support vector machine (SVM) models were constructed using the “Caret” package(https://cran.r-project.org/web/packages/caret/index.html) (21). The hub genes obtained from both the SVM and LASSO methods were taken to be the intersection of the total hub genes.

Verification of the hub genes

The validation was performed using the deep-learning method previously described by Tian et al. (22). For the hub genes, their gene expression profiles in the COADREAD dataset and the corresponding sample grouping information were extracted. A multi-layer perceptron (MLP) neural network was constructed using the “neuralnet” package (https://cran.r-project.org/web/packages/neuralnet/index.html) of R language. The constructed neural network models were validated in the 2 datasets of GSE32323 and GSE113513, respectively. Receiver operating characteristic (ROC) curves were used to demonstrate the diagnostic capabilities of the models.

Genetic interaction networks

As described previously by Yu et al. (23), the RNAInter database (http://www.rnainter.org/) was used to screen the pairs of the hub genes that interacted with the micro-RNAs (miRNAs). The RNAInter database was then used to screen the pairs of 2 hub genes that were intercrossed with the long non-coding RNAs (lncRNAs). Interaction pairs with scores >0.5 were considered significant (24), and the pairs were merged and plotted with Cytoscape (https://cytoscape.org/), which is an open-source software platform for visualizing complex networks.

Immunocyte infiltration

The CIBERSORT algorithm (25) was used to identify the immune infiltrates, and the LM22 feature matrix files (25) were used to compare the infiltration of the immune cells in the CRC and normal control samples. The correlations between the hub gene expression of the COADREAD dataset and the immune-related gene set were calculated using the “corr.test” function of Spearman’s algorithm (https://rpubs.com/aaronsc32/spearman-rank-correlation), and the correlation heatmap was drawn. The immune checkpoint genes reported by Chen et al. (26) were used to calculate and plot the correlations between these genes and the hub genes in the COADREAD dataset.

Statistical analysis

For the COADREAD samples that contained survival time and survival status data, a survival curve analysis was conducted using the “survfit” function of the “survival” package (https://cran.r-project.org/web/packages/survival/index.html), and the results were plotted using the “ggsurvplot” function of the “survminer” package (https://cran.r-project.org/web/packages/survminer/readme/README.html). The hub genes were grouped as having high and low expression based on the median for all the samples. Overall survival (OS) and disease-specific survival (DSS) curves were plotted for each of the 4 hub genes. The outcome indicator for OS was the time to death. The outcome indicator for DSS was death due to a specific disease.

Results

Ferroptosis-related DEG identification among the 3 datasets

The COADREAD dataset comprised 992 DEGs, of which 389 were upregulated and 603 were downregulated. In the COADREAD dataset, 291 ferroptosis-related genes were obtained from FerrDb and GeneCards and intersected with the differential results of the overall genes, and 11 ferroptosis-related DEGs were identified (Figure 1).

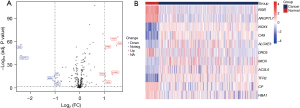

Figure 1 The ferroptosis-related DEGs were found among the three datasets. (A) Volcano map and (B) heap map of the ferroptosis-related DEGs in the COADREAD dataset. ANGPTL7, angiopoietin-related protein 7; NGB, neuroglobin; CP, ceruloplasmin; NOX4, NADPH oxidase 4; CA9, carbonic anhydrase 9; TFR2, transferrin receptor 2; ALOXE3, arachidonate lipoxygenase 3; DEGs, differentially expressed genes; FC, fold change; Notsig, not significant; NA, not analyzed.

The GSE32323 dataset comprised 1,396 DEGs, of which 682 were upregulated and 714 were downregulated. The GSE32323 data comprised 1,076 DEGs, of which 426 were upregulated and 650 were downregulated. The DEGs associated with iron apoptosis in both the datasets are shown in Table S1.

Correlation analysis of the ferroptosis-related DEGs

Figure 2 shows some relationships between 2 of the ferroptosis-related genes. The results of the Pearson’s correlation analysis showed that angiopoietin-related protein 7 (ANGPTL7) gene expression was positively correlated with both the neuroglobin (NGB) (r=0.678, Figure 3A) and ceruloplasmin (CP) (r=0.454, Figure 3B) genes. TFR2 gene expression was positively correlated with the arachidonate lipoxygenase 3 (ALOXE3) (r=0.452, Figure 3C). NGB gene expression was positively correlated with the CP (r=0.431, Figure 3D). Transferrin receptor 2 (TFR2) expression was positively correlated with the carbonic anhydrase 9 (CA9) (r=0.411, Figure 3E) but negatively correlated with ANGPTL7 (r=−0.426, Figure 3F).

Figure 2 The relationships were identified among the ferroptosis-related DEGs. Correlation heat map (A) and correlation network (B) of the 11 ferroptosis-related DEGs in the COADREAD dataset. The colors in the graph range from red to blue, indicating correlation coefficients from –1 to 1. CP, ceruloplasmin; TFR2, transferrin receptor 2; ALOXE3, arachidonate lipoxygenase 3; CA9, carbonic anhydrase 9; NOX4, NADPH oxidase 4; ANGPTL7, angiopoietin-related protein 7; NGB, neuroglobin; Corr, correlation; DEGs, differentially expressed genes.

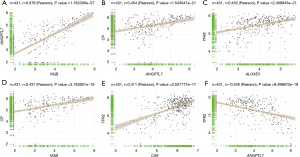

Figure 3 Correlation scatter plots of (A) ANGPTL7 vs. NGB genes; (B) ANGPTL7 vs. CP genes; (C) TFR2 vs. ALOXE3 genes; (D) NGB vs. CP genes; (E) TFR2 vs. CA9 genes; (F) ANGPTL7 vs. TFR2 genes. ANGPTL7, angiopoietin-related protein 7; NGB, neuroglobin; CP, ceruloplasmin; TFR2, transferrin receptor 2; ALOXE3, arachidonate lipoxygenase 3; CA9, carbonic anhydrase 9.

Machine learning

The LASSO regression model identified a total of 6 non-zero coefficient signature genes [i.e., NGB, ANGPTL7, NADPH oxidase 4 (NOX4), CA9, ALOXE3, and TFR2]. Moreover, the SVM model was plotted to compare the accuracy to the number of features, and the number of features corresponding to the point with the highest accuracy was extracted (Figure 4A). As Figure 4B shows, when the optimum number of features was 4, the corresponding 4 optimal signature component genes were NOX4, TFR2, ALOXE3, and CA9 (Figure 4B). As the Venn diagram shows, a total of 4 hub genes were identified; that is, NOX4, TFR2, ALOXE3, and CA9 (Figure 4C).

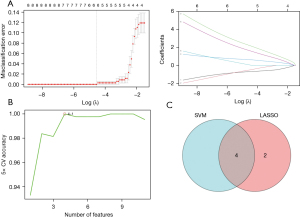

Figure 4 The machine learning was used to obtain the hub genes. (A) LASSO regression model; (B) SVM model showing that the optimum number of features was 4; (C) Venn diagram of the hub genes. CV, coefficient of variation; LASSO, least absolute shrinkage and selection operator; SVM, support vector machine.

Verification of the hub genes

A MLP neural network was constructed with the following network structure: 2 hidden layers (Figure 5A). The predicted area under the curve (AUC) value of the GSE32323 dataset was 0.958 (Figure 5B) and the AUC value of the GSE113513 dataset was 0.949 (Figure 5C), which demonstrated excellent diagnostic ability.

Figure 5 Verification of the hub genes. (A) MLP neural network for verifying the hub genes; (B) ROC curve of the hub genes in GSE32323 dataset; (C) ROC curve of the hub genes in the GSE113513 dataset. NOX4, NADPH oxidase 4; TFR2, transferrin receptor 2; ALOXE3, arachidonate lipoxygenase 3; CA9, carbonic anhydrase 9; AUC, area under the curve; MLP, multi-layer perceptron; ROC, receiver operating characteristic.

Genetic interaction networks

The RNAInter database was used to screen the reciprocal pairs of the hub genes and miRNAs, and a total of 27 miRNAs were identified (22). From the RNAInter database, a total of 193 lncRNAs were screened for interactions with the 2 hub genes (Figure 6).

Figure 6 Genetic interaction networks of the miRNAs, hub genes, and lncRNAs. lncRNAs, long non-coding RNAs

Immunocyte infiltration

The CIBERSORT algorithm revealed a remarkable difference in the immune cell infiltration in the CRC samples than the normal samples (Figure 7). No significant differences were found in the naive B cells, eosinophils, monocytes, and resting natural-killer cells between the CRC and normal samples.

Figure 7 Comparison of the immunocyte infiltration profiles between the CRC and normal samples. NK, natural killer; CRC, colorectal cancer.

The expression of the NOX4 gene was elevated and significantly positively correlated with neutrophil (r=0.543) and M0 macrophage (r=0.422) infiltration. In addition, a positive correlation was found between ALOXE3 and activated natural-killer cells (r=0.356, P<0.001). Conversely, NOX4, TFR, and CA9 were negatively correlated with the resting mast cells and had r values of –0.590, –0.536, and –0.546, respectively. For more details on the relationships between the hub genes and immunocyte infiltrations (Figure 8).

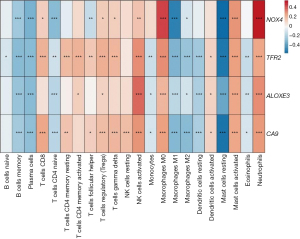

Figure 8 Heat map showing the correlations between the expression of the 4 hub genes and the immune-related gene set. *, P<0.05; **, P<0.01; ***, P<0.001. NK, natural killer; NOX4, NADPH oxidase 4; TFR2, transferrin receptor 2; ALOXE3, arachidonate lipoxygenase 3; CA9, carbonic anhydrase 9.

The results of the immune checkpoint analysis revealed a strong positive correlation between NOX4 and CD160 expression (r=–0.510, P<0.01) and a significant negative correlation between NOX4 and transforming growth factor beta receptor 1 (TGFBR1) expression (r=0.397, P<0.01, Figure 9).

Figure 9 Heat map of the immune checkpoint analysis. *, P<0.05; **, P<0.01. TFR2, transferrin receptor 2; NOX4, NADPH oxidase 4; CA9, carbonic anhydrase 9; ALOXE3, arachidonate lipoxygenase 3.

Statistical analysis

The survival curves for each of the 4 hub genes were plotted separately. Only NOX4 was statistically significant for OS (P=0.014, Figure 10A) and DSS (P=0.016, Figure 10B). These findings suggest that patients had a more favorable prognosis when NOX4 expression levels were relatively low.

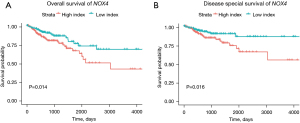

Figure 10 Survival analysis of CRC patients. (A) Overall survival of NOX4; (B) disease-specific survival of NOX4. NOX4, NADPH oxidase 4; CRC, colorectal cancer.

Discussion

Presently, operative resection, chemotherapy, targeted-therapies, and immunotherapies dominate the treatment of CRC (27,28). The selection of therapeutic strategies is determined by each patient’s medical status and the clinical characteristics and phase of the tumor. Sadly, not all these alternatives are optimal for advanced CRC patients. To optimize therapeutic clinical regimens, more effective prognostic markers or curative targets need to be identified. Ferroptosis is a new-found model of cell mortality that has been shown to occur in numerous carcinomas and may be of great use in anti-neoplastic therapies (29,30). Ferritin triggers, whether used as mono-therapeutic drugs or in correlation with other chemo-therapeutic drugs, are capable of inhibiting ferritin generation in oncogenic cells, especially in treatment-resistant carcinoma cells (31,32). Ferroptosis may also be selectively aimed at invasive and aggressive cancer stem cells and thus offer the prospect of boosting the effectiveness of immunotherapy and drug tolerance to immunotherapy (33,34). Thus, ferroptosis-related DEGs and the proteins they express represent potentially appropriate anti-cancer interventions for CRC, particularly for patients in the advanced stages or those with treatment resistance.

We identified 11 ferroptosis-related DEGs in the COADREAD dataset. We found that ANGPTL7 gene expression was positively correlated with both the NGB (r=0.678) and CP (r=0.454) genes but was negatively correlated with TFR2 expression (r=–0.426). In addition, TFR2 gene expression was positively correlated with both the ALOXE3 (r=0.452) and CA9 (r=0.411) genes. A total of 4 hub genes were identified by machine learning; that is, NOX4, TFR2, ALOXE3, and CA9. The expression of the NOX4 gene was significantly and positively correlated with neutrophil (r=0.543) and M0 macrophage (r=0.422) infiltration. In addition, a positive correlation was found between ALOXE3 and activated natural-killer cells (r=0.356). The NOX4, TFRs, and CA9 genes were negatively correlated with resting mast cells. The results of the immune checkpoint analysis revealed a strong positive correlation between NOX4 and CD160 expression (r=0.510) and a significant negative correlation between NOX4 and TGFBR1 expression (r=−0.397). The patients had a more favorable prognosis when the NOX4 expression levels were relatively low.

As a member of the nicotinamide adenine dinucleotide phosphate (NADPH) oxygenase family, NOX4 is inducible by ischemia and hypoxia as cells are exposed to ROS (35). It has been suggested that ROS are engaged in many critical cellular processes, such as proliferation, DNA damage response, and angiogenesis, which are clearly relevant to oncogenesis (36). NOX4 is an essential ROS-generating enzyme, and is thus extremely interesting to investigators. NOX4 has been shown to facilitate cell migrations in mammary and pancreatic carcinomas (37-39). NOX4 has also been shown to mediate the cell cycle and facilitate carcinogenesis in melanomas (40). Previous research has also confirmed that NOX4, a ferroptosis-related gene, is a valid biological marker for gastric carcinogenesis (41). NOX4 has been found to be strongly expressed in colon cancer and correlated to an unfavorable outcome (42). Consistent with our results, a previous study showed that NOX4 was significantly enriched in oncogenic-related pathways and clearly correlated with the immune cellular subtypes (43).

We also found a strong negative correlation between NOX4 and CD160 expression, and a positive correlation between TGFBR1 and NOX4 expression. CD160 is a 27-kDa glycoprotein that is strongly correlated with natural-killer cells and CD8⁺ T lymphocytes with effector cytolytic activities in the peripheral blood (44). The transmission of transforming growth factor beta 1 (TGFB1) signaling from the subcellular surface to the plasma modulates an enormous number of pathological and physiological events (45). The above relationships need to be further explored in the near future. These mentioned relationships can further confirm and enhance the genetic map associated with ferroptosis and may lead to novel medical applications that might be advantageous for immunotherapy and the survival of CRC patients in the long term.

Conclusions

This study identified the ferroptosis-related DEGs of NOX4, TFR2, ALOXE3 and CA9 in CRC and further validated their relationship with immune cell infiltration and associated immune checkpoints. Our findings confirm the influence of the immune microenvironment on CRC. Low NOX4 levels were found to be more favorable to patient outcomes. Our findings may facilitate future clinical diagnoses and outcome assessments of CRC.
