Disulfidptosis-related genes of prognostic signature and immune infiltration features in hepatocellular carcinoma supported by bulk and single-cell RNA sequencing data

Introduction

Hepatocellular carcinoma (HCC) is the 6th most common cancer and the 3rd leading cause of cancer-related death worldwide (1). Despite the availability of a variety of treatment options, including surgery, targeted therapy, and immunotherapy, the 5-year overall survival (OS) of HCC patients remains poor, due to continued high rates of cancer recurrence and metastasis (2,3). The immune microenvironment is closely involved in the occurrence and progression of HCC, and different immune characteristics based on etiology have been identified (4,5). Immunotherapy has significant efficacy in treating HCC patients; however, biomarkers need to be identified to determine which patients will gain the greatest benefit. Rapid advances in bioinformatics have resulted in the development of significant techniques and platforms for screening cancer patients’ prognostic biomarkers.

Disulfidptosis is a rapid form of cell death due to disulfide stress induced by an excessive ac of cystine in glucose-deprived cells (6). The upregulation of solute carrier family 7 member 11 (SLC7A11) in kidney cancer cells enhances nicotinamide adenine dinucleotide phosphate (NADPH) depletion in the cytoplasm during glucose deprivation. This results in the accumulation of unreducible disulfides, which leads to disulfide stress and the subsequent development of disulfidptosis (6,7). Consequently, disulfide bond formation occurs between actin cytoskeleton proteins, causing the collapse of the actin filament network and ultimately resulting in disulfide ptosis. Independent of the existing cell death modes, such as apoptosis, ferroptosis, necroptosis, and cuproptosis, disulfidptosis is a novel therapeutic target in metabolic cancer and closely related to cancer. Disulfidptosis is of vital importance in the regulation of tumor development, treatment sensitivity and survival in bladder cancer (8). In addition, the metabolism of disulfides in cancer cells has been linked to a number of different biological phenomena, including drug resistance, the spread of cancer, and the ability of cancer to evade the immune system (9). Programmed cell death is closely related to immunity (10). Nevertheless, the function of disulfidptosis in tumor immune response, immune infiltration, and immunotherapy is not yet known. Activating disulfidptosis pathways could overcome patients’ resistance to current chemotherapeutics and pave the way for new cancer treatments. The interrelationship between disulfidptosis-associated genes and the clinical outcomes of HCC patients must be thoroughly investigated. Thus, we conducted this study to examine the effects of disulfidptosis on HCC prognosis and immunization.

We analyzed the functions of genes associated with disulfidptosis using RNA-sequencing (RNA-seq) and single cell RNA sequencing (scRNA-seq) data from The Cancer Genome Atlas–Liver Hepatocellular Carcinoma (TCGA-LIHC), GSE76427, and GSE98638 data sets. Four gene regulators associated with disulfidptosis were selected to evaluate HCC. Based on these findings, a risk model and nomogram were developed that could provide significant clinical benefits for HCC patients. Additionally, two risk categories were identified, and significant associations were observed between these categories, immune cell infiltration, and prospective medication selection. In conclusion, a deeper understanding of disulfidptosis processes will facilitate the evolution of new molecular therapies and inform the future immunotherapy strategies for HCC. We present this article in accordance with the TRIPOD reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-23-949/rc).

Methods

Data acquisition

The RNA-seq and clinical and mutation data of HCC patients were extracted from TCGA database (https://portal.gdc.cancer.gov/). We used a data set comprising 374 HCC and 50 normal liver samples for the differential analysis, excluding samples without clinical data or with an OS less than 30 days. As an external validation data set, 115 HCC samples were obtained from GSE76427 from the Gene Expression Omnibus (GEO) database (https://www.ncbi.nlm.nih.gov/geo). To investigate the expression of disulfidptosis-related genes (DRGs) in the tumor microenvironment (TME) at the single-cell level, we employed the Tumor Immune Single Cell Center (TISCH) (11). Previous studies have identified 24 DRGs (6,12,13). The flow chart for the data processing is shown in Figure 1. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

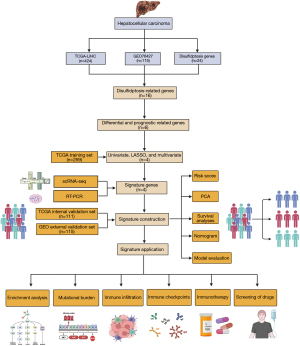

Figure 1 Flow chart. The flow chart was adapted from BioRender.com [2023] and permission for publication has been obtained. TCGA-LIHC, The Cancer Genome Atlas–Liver Hepatocellular Carcinoma; GEO, Gene Expression Omnibus; LASSO, least absolute shrinkage and selection operator; PCA, principal component analysis; scRNA-seq, small conditional-sequencing; RT-qPCR, real-time quantitative polymerase chain reaction; MET, Methionine; PHE, Phenylalanine; GLY, Glycine.

Construction and analysis of DRGs signature

TCGA database was used to filter the differentially expressed genes (DEGs) associated with disulfidptosis between the tumor and normal samples using the “DESeq2” package (Michael, 2014) utility [threshold: false discovery rate (FDR) >0.05, |log2(fold change)| >1]. The tumor samples were randomly divided into training and testing cohorts at a 7:3 ratio using the “caret” package (Kuhn, 2008). A univariate analysis, least absolute shrinkage and selection operator (LASSO) analysis, and multivariate logistic regression analysis were performed using the “glmnet” (Friedman, 2010) and “survival” packages (Therneau, 2022) in R. A P value <0.5 was set as the significance threshold for genes in the univariate logistic regression. Using the following formula, we calculated a risk score for each LIHC sample based on these gene expression levels: Risk score = β1 × gene1 + β2 × gene2 + β3×gene3 + ... + βn × geneN. Based on the median risk score, the patients in the training set were divided into high- and low-risk groups. Kaplan-Meier survival curves were generated using the “survival” package (Therneau, 2022) to calculate the OS of each cohort. Using time-dependent receiver operating characteristic (ROC) curve profiles at 1, 3, and 5 years, the model’s accuracy was evaluated. Comparisons were made between the two risk groups in relation to the distribution of risk score, patient survival, and gene expression. Further, the model was validated using the testing cohort, total cohort, and an external validation set. A nomogram was established that incorporated the risk score, age, gender, and pathological stage as prognostic factors. Calibration and ROC curves were generated to appraise the accuracy of the nomogram. A stratified analysis was conducted to assess the prognostic significance of the risk score. The validation set was treated the same as the test set in terms of its settings, inclusion criteria, outcomes, and predictors.

Analysis of biological characteristics between the distinct risk groups

Gene Ontology (GO) is commonly used to interpret gene lists in enrichment analyses (14). The Kyoto Encyclopedia of Genes and Genomes (KEGG) is a comprehensive pathway-oriented knowledge base that includes 15 databases covering 3,982 organisms (15). We used the “clusterProfiler” package (T, 2021) in R to analyze GO and KEGG to gain a better understanding of the potential mechanisms of the DEGs in HCC. A filtering criterion of an FDR <0.05 was established. A gene set enrichment analysis (GSEA) was conducted to identify the significantly different biological processes between the clusters. A GSEA is commonly used to evaluate the statistical significance of differences between two biological processes. The GSEA was performed using “c2.cp.kegg.v7.4.symbols.gmt” and “c5.go.v7.2.symbols.gmt” obtained from the Molecular Signature Database (MSigDB).

Somatic mutation analysis

R’s “maftools” package (Mayakonda, 2018) was used to visualize the mutation data from LIHC. Fisher’s exact test was employed to evaluate the co-mutation of genes. The tumor mutation burden (TMB) was estimated by considering non-synonymous and code-shifting indels, with a detection limit below 5%. The TMB represents the count of somatic, coding, base substitution, and insert-deletion variants per megabase of the genome.

Immune landscapes related to the DRGs

Using the “ESTIMATE” package (Yoshihara, 2016), stromal scores and immune scores were calculated for each TCGA-LIHC sample to estimate tumor purity. Based on the absolute abundance of immune cells and stromal cells, a “CIBERSORT” package (Aaron, 2015) analysis was conducted to estimate the percentages of 22 human immune cell categories. A Spearman analysis was performed to determine the correlation coefficient between the infiltrating immune cells and the risk score, and the results were visualized on a scatter diagram. The expression of genes involved in the immune checkpoints were correlated with the response to immune checkpoint inhibitors (ICIs), and immune checkpoint gene expression was compared between the two risk groups. Additionally, the Spearman correlation analysis identified the DRGs that were most strongly associated with the immune checkpoints. The IMvigor210 cohort was chosen to validate the immune checkpoint blockade treatment.

Drug sensitivity analysis

The “oncoPredict” package (Maeser, 2021) was used to identify targeted medications and assess whether they were significantly correlated with the risk score to investigate potential therapeutic strategies. Semi-inhibitory concentrations [e.g., a half-maximal inhibitory concentration (IC₅₀)] were determined and compared using the Wilcoxon signed-rank test.

Real-time quantitative PCR (RT-qPCR)

The total RNA from the experimental and control groups was extracted using the RNA rapid purification reagent (ES Science) following the manufacturer’s instructions. RNA concentration and purity were detected using the Nano-Drop One instrument (Thermo Fisher Scientific, Waltham, MA, USA). The reverse transcription of complementary DNA was carried out using s1000 (Bio-Rad Laboratories, Hercules, CA, USA). qRT-PCR was conducted with SYBR Green (Yeasen Biotech Co, Shanghai, China). The sequences of the RT-qPCR primers are set out in Table 1. Gene expression was determined using the 2^−ΔΔCt method. β-actin messenger RNA served as the internal normal reference.

Statistical analysis

The statistical analyses were conducted using R (version 4.2.2, ucrt). Each in vitro experiment was conducted a minimum of three times. GraphPad Prism (version 8.0, San Diego, CA, USA) was used to conduct the statistical analyses. Student’s t-tests were used for the continuous variables with a normal distribution and Wilcoxon rank-sum tests were used for those with a non-normal distribution. The Chi-square or Fisher’s exact test was used for the categorical variables as applicable. A Pearson analysis was carried out to assess the correlations. Two-tailed P values were calculated, and statistical significance was defined as a P value <0.05.

Results

Identification of differentially expressed DRG signature

Both the training cohort and the internal validation cohort comprised tumor samples from the TCGA-LIHC data set. For external validation, the GSE76427 data set from the GEO database, which comprised 115 tumor samples, was used. Previous research identified 24 DRGs (6,12,13). A volcano plot shows the expression changes of all the DRGs in the HCC samples (Figure 2A). By cross-referencing the three data sets, we identified 16 differentially expressed DRGs that were highly expressed in the tumor tissues (Figure 2B). The prognostic analysis showed that five genes were associated with a favorable prognosis, while one gene was associated with a poor prognosis (Figure 2C). The results of a network interaction analysis (Figure 2D) shows the risk factors in purple and favorable prognostic factors in green. To better understand the role of the DRGs in HCC, the TCGA-LIHC data set was divided into a training and validation set at a ratio of 7:3. Six prognostic genes were identified through the univariate Cox regression analysis. A LASSO regression analysis was then conducted to confirm that the genes were significantly correlated with OS in HCC (Figure 2E). The selected genes underwent model cross-validation (Figure 2F). The prognostic DRGs were then identified using a multivariate Cox regression analysis. Among the DRGs in the training set, RPN1, SLC2A1, SLC2A4, and SLC7A11 were found to be prognostic genes associated with OS. These genes were used to identify predictive characteristics for patients in the LIHC training set.

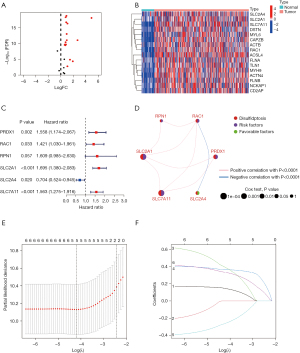

Figure 2 DRGs in HCC. (A) The volcano plot illustrates the expression of all the genes induced by disulfidptosis in HCC. Black dots indicate genes with meaningless changes and red dots indicate genes with meaningful changes. (B) The heatmap shows the differential expression of 16 DRGs in HCC patients. Blue indicates normal tissue, while red indicates tumor tissue. The Wilcoxon test was used to compare variations in gene expression. (C) Forest plot of the 6 DRGs associated with OS. (D) The network diagram illustrates the interactions among the six genes. (E) Coefficient distribution charts were generated for the logarithmic sequence of lambda values to determine the optimal parameter. (F) LASSO coefficient profiles of the 6 DRGs associated with OS. DRGs, disulfidptosis-related genes; HCC, hepatocellular carcinoma; FDR, false discovery rate; FC, fold change; OS, overall survival.

Establishment of a prognostic model

The HCC patients in the training, testing, entire, and external validation set were stratified into high- and low-risk groups according to the median value of the predictive risk score. The principal component analysis results showed that the four DRGs could effectively differentiate between the high- and low-risk categories across multiple data sets (Figure 3A). Figure 3B illustrates the distribution of the prognostic signature, while Figure 3C shows the survival outcomes of patients in different categories. Figure 3D illustrates the expression profiles of the four DRGs. Figure 3E shows that compared with the high-risk group, the survival of HCC patients in the low-risk group was significantly longer (P<0.05). To determine the predictive ability of the model, we depicted the ROC curve to validate the Kaplan-Meier results, and a higher area under the curve (AUC) indicated better performance. These genes exhibited excellent performance in our predictive model (Figure 3F). These findings indicate that prognostic features can be used to differentiate between high- and low-risk groups.

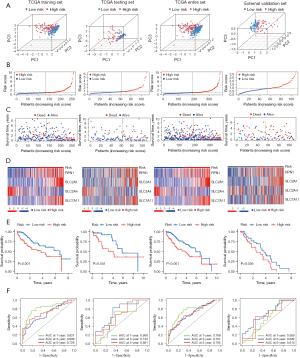

Figure 3 Construction and validation of a risk score model related to the effectiveness of the DRGs. (A) A PCA was used to analyze TCGA training set, TCGA testing set, entire TCGA set, and external validation set; (B) distribution of risk scores within the cohort; (C) distribution of patients’ survival time in the different data sets; (D) heatmap displaying the expression of RPN1, SLC2A1, SLC2A4, and SLC7A11 between the high- and low-risk groups; (E) Kaplan-Meier curves for OS in HCC patients stratified by risk score were generated for the training, testing, entire, and validation cohort; (F) a time-dependent ROC analysis was performed to predict OS at 1, 3, and 5 years in the different data sets. DRGs, disulfidptosis-related genes; PCA, principal component analysis; OS, overall survival; HCC, hepatocellular carcinoma.

Establishment and evaluation of a clinical nomogram

The multivariate Cox regression analysis showed that risk score and tumor stage were independent risk factors in HCC (Figure 4A). Additionally, we constructed a nomogram to calculate the individual survival probabilities of patients at 1, 3, and 5 years (Figure 4B). A calibration plot of the nomogram was used to assess the accuracy and sensitivity of the prediction results, and a good correlation was found between the actual and predicted survival rates at 1, 3, and 5 years (Figure 4C). The ROC curve indicated that the nomogram achieved a 1-year AUC of 0.794, surpassing other clinical parameters (risk, AUC =0.782; age, AUC =0.634; gender, AUC =0.500; stage, AUC =0.500; Figure 4D-4F). Based on the results, the nomogram effectively predicted the OS of HCC patients.

Figure 4 Clinical factors used for validating the prognostic model. (A) A multivariate analysis was used to calculate P values for the analysis of the HCC risk score and clinicopathologic characteristics; (B) a nomogram was established to predict the OS of HCC patients at 1, 3, and 5 years; (C) a calibration plot was generated to assess the concordance between the predicted and observed outcomes of the nomogram. The plot’s deviation from the dashed line, which represents perfect prediction, indicates the performance of the nomogram. (D-F) ROC curves and corresponding AUC values were generated using the nomogram in TCGA data set to predict the 1-, 3-, and 5-year OS. *, P<0.05; ***, P<0.001. HCC, hepatocellular carcinoma; OS, overall survival; ROC, receiver operating characteristic; AUC, area under the curve.

Functional enrichment analysis

Given the favorable prognostic performance of the DRGs signature in the HCC patients, we then sought to investigate the underlying mechanism. Initially, a differential expression analysis between the two risk groups was performed (|log2 fold change| ≥0.5, adjusted P value <0.05). The DEGs were subsequently analyzed using GO and KEGG methods. The analysis of the biological processes revealed an overrepresentation of DEGs in the cellular cycle, DNA replication, and metabolic pathways (Figure 5A,5B). Additionally, a GSEA was used to investigate the substantially enriched functional terms between patients at high risk and those at low risk. DNA repair, cell division, and cancer pathways were significantly enriched in the high-risk group (Figure 5C,5D). The above findings suggest that metabolic activity and drug metabolism may be the underlying mechanisms behind the predictive ability of our DRGs-based signature for HCC patient prognosis.

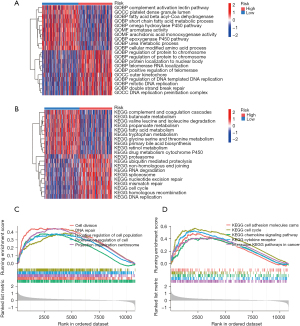

Figure 5 A gene function enrichment analysis was conducted in the HCC subtypes using the GSEA and GSVA methods. (A) The heatmap illustrates the activation state of the GO pathways in different risk groups after GSVA processing. (B) The heatmap displays the activation state of the KEGG pathways in the risk groups after GSVA processing. Red nodes indicate upregulation, while blue nodes indicate downregulation (P<0.05). (C) The GSEA predicted the enriched GO pathways associated with the DEGs in the risk groups. (D) The GSEA predicted the enriched KEGG pathways associated with the DEGs in the risk categories (P<0.05). HCC, hepatocellular carcinoma; GSEA, gene set enrichment analysis; GSVA, gene set variation analysis; GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; DEGs, differentially expressed genes.

DRGs association with TMB

The high-risk group had significantly higher frequencies of somatic mutations than the low-risk group, particularly in TP53 (41% vs. 17%), CSMD3 (13% vs. 4%), and ZNF831 (6% vs. 1%) (Figure 6A,6B). The high-risk patients had higher TMB levels than the low-risk patients (Figure 6C). Following the integration of the TMB scores, the HCC patients from TCGA were categorized into four groups. The survival analysis demonstrated that patients with a low TMB and a low risk had a significant survival advantage, followed by patients with a high TMB and a low risk, while patients with a high TMB and a high risk had the worst survival prospects. The group with a low TMB and a low risk had a significant survival disadvantage (Figure 6D). The disparity in the TMB between the two groups could provide insights for future treatment strategies.

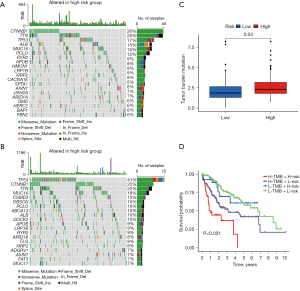

Figure 6 Tumor mutation characteristics were analyzed in different subgroups based on the DRGs. (A,B) The top 20 mutated genes were identified in the different risk groups based on the DRGs; (C) the differences in the TMB between the low- and high-risk groups; (D) the effects of combining the DRGs risk groups with the TMB on OS was assessed. DRGs, disulfidptosis-related genes; TMB, tumor mutational burden; OS, overall survival.

Assessment of TME and forecasting immunotherapy

Tumor growth, response to therapy, and clinical outcomes are all significantly affected by stromal cells and immune cells inside the TME (16,17). The violin plot depicts the stromal score and immune activity of each sample. We observed a relatively higher abundance of stromal cells in the high-risk group of DRGs (Figure 7A). Additionally, the immune scores of the high-risk group of DRGs were higher than those of the low-risk group (Figure 7A). To conduct a comprehensive analysis of the immune microenvironment, we calculated the infiltration levels of 22 immune cell types using “CIBERSORT” package (Aaron, 2015). Figure 7B illustrates the immune landscape of the TCGA-LIHC samples. Follicular helper T cells, regulatory T (Treg) cells, M0 macrophages, M2 macrophages, and quiescent mast cells exhibited significant increases in the high-risk DRG group, as evidenced by the comparison of immune cell profiles. Conversely, memory cluster of differentiation CD4 T cells, and mast cells were more abundant in the low-risk group (Figure 7B). We also investigated the relationship between immunocytography and DRGs scores. We found that the DRGs score was positively correlated with activated M0 macrophages, memory CD4 T cells, and other immune cells (Figure 7C). In TCGA cohort, the expression levels of multiple immune checkpoints were significantly elevated in the high-risk group (Figure 8A), implying that high-risk patients might benefit more from ICI therapy. The heatmap showed that the DRGs were closely related to immune checkpoints (Figure 8B). Lastly, IMvigor210 was used to validate the prognostic and immunotherapeutic efficacy of the risk score (Figure 8C). The effectiveness of immunotherapy was enhanced in individuals with low-risk scores.

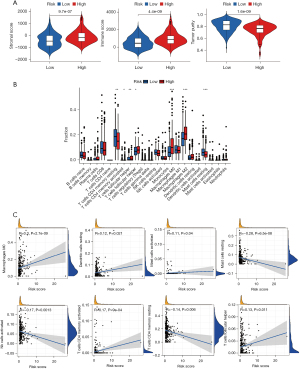

Figure 7 The immune status was compared between different groups. (A) The stromal scores, immune scores, and tumor purity were compared between the high- and low-risk groups; (B) a comparative analysis of immune cell infiltration was conducted between the two risk categories; (C) the relationship between the risk score and the number of immune cells. *, P<0.05; **, P<0.01; ***, P<0.001.

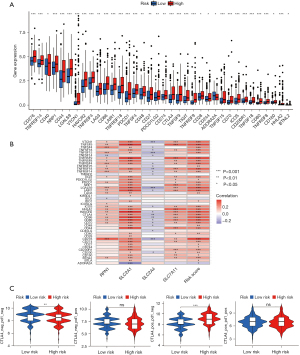

Figure 8 Analysis of immune checkpoints and prediction of immunotherapy. (A) The expression of the immune checkpoints was compared between the high- and low-risk groups; (B) the relationship between DRGs and immune checkpoints was analyzed; (C) the performance of the risk score in predicting prognosis and immunotherapy efficacy was displayed using a violin diagram in the context of IMvigor210. *, P<0.05; **, P<0.01; ***, P<0.001. DRGs, disulfidptosis-related genes; ns, no significance.

Potential drug screening

The “Oncopredict” package (Maeser, 2021) was used to assess the IC₅₀ values of commonly used pharmaceuticals. The high-risk group exhibited decreased IC₅₀ values for sorafenib, zoledronate, vorinostat, nilotinib, carmustine, ruxolitinib, and cyclophosphamide (Figure 9A-9C). We further investigated the association between DRGs and IC₅₀ using scatterplots (Figure 9B-9D). A lower IC₅₀ value indicated greater drug sensitivity and therapeutic efficacy.

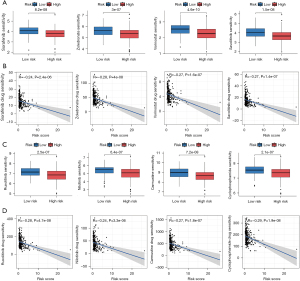

Figure 9 A drug sensitivity analysis in the high- and low-risk groups was conducted. (A,C) Drug sensitivity was compared between the high- and low-risk categories; (B,D) the relationship between risk scores and the responsiveness to drugs was examined.

ScRNA-Seq analysis

TISCH was employed to evaluate the expression levels of DRGs in the tumor immune cells and to investigate the role of DRGs in these cells. Figure 10A displays the cells divided into 16 clusters, while Figure 10B provides annotations for the immune cell types. Both the pie chart and bar chart showed that CD4 T conventional cells had the highest proportion, followed by CD8 T cells (Figure 10C,10D). CD4 T conventional cells , CD8 T cells, CD8 T exhaustion cell, T proliferation cell , and Treg cells exhibited high expression levels of RPN1 and SLC2A1. Moreover, SLC2A1 was specifically expressed in Treg cells, while CD8 T exhaustion cell, T proliferation cell, and Treg cells showed characteristic expression of SLC7A11 (Figure 10E,10F).

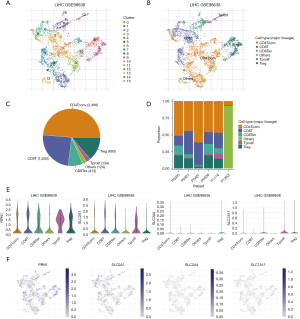

Figure 10 Single-cell RNA sequencing data analysis. Cells of 16 cell clusters (A) and subtypes of cells (B) in HCC samples. Pie (C) and bar (D) charts show the proportion of different immune cells in the HCC samples. Violin plot (E) and UMAP (F) show the expression of different DRGs in different immune cells. HCC, hepatocellular carcinoma; UMAP, uniform manifold approximation and projection; DRGs, disulfidptosis-related genes.

Validation of the four DRGs

To experimentally validate our findings, we performed a RT-qPCR analysis and observed the differential expression of four DRGs between the normal liver cell line (MIHA) and HCC cell lines (Hep3B, Huh7, MHCC97H, and SNU387). The expression levels of RPN1, SLC2A1, SLC2A4, and SLC7A11 were significantly upregulated in the HCC cells compared to MIHA cells (Figure 11A-11D).

Figure 11 The expression of the four DRGs between the normal liver cell line and HCC cell lines was compared. The expression of RPN1, SLC2A1, and SLC7A11 was significantly higher in the HCC cells. The expression of the hub genes was normalized to the expression of β-actin, which served as a reference. t-test: *, P<0.05; ***, P<0.001; ****, P<0.0001. ns, no significance; DRGs, disulfidptosis-related genes; HCC, hepatocellular carcinoma.

Discussion

Despite encouraging progress being achieved in the detection, treatment, and prevention of HCC, it remains a prevalent and malignant disease with a high mortality rate and a poor prognosis, resulting in over 500,000 deaths annually (18,19). HCC represents 90% of all kind of liver cancers, and its 5-year survival rate is only 18% (1,20). Typically, patients diagnosed with early-stage HCC receive standard treatments, including surgical resection, radiofrequency ablation, and transarterial chemoembolization (21). Chemotherapy resistance is widely acknowledged as a leading cause of mortality in cancer patients (22,23). Recent diagnostic and therapeutic improvements have not improved the prognosis of patients with HCC. Thus, innovative medicines and reliable biomarkers need to be quickly identified to address this issue.

Due to the drug-resistance of tumor cells, researchers have focused on programmed cell death mechanisms. Disulfidptosis, a novel form of cell death that occurs when disulfide are increased in cancer cells, and thus may offer a potential therapeutic strategy for cancer (24). Nevertheless, the use of immunotherapy as a primary treatment approach has challenged the position of sorafenib (25). We investigated the influence of disulfidptosis on the immune response in HCC. We identified the prognostic features of DRGs using TCGA-LIHC data set. Subsequently, we corroborated discrepancies in tumor-infiltrating immune cells and immune checkpoints using a newly developed prognostic signature.

In the study, we confirmed the significance of DRGs in HCC through a bioinformatics analysis of RNA-seq and scRNA-seq. For the investigation of prognostic indicators related to disulfidptosis, we extracted six DRGs from TCGA data set. TCGA data set validated the predictive value of six DRGs, and four of these genes were used to build prognostic signatures to predict the OS of HCC patients. Among the six genes, four were identified (i.e., RPN1, SLC2A1, SLC2A4, and SLC7A11).

A study has shown that the knockdown of RPN1 in vitro inhibits breast cancer cells proliferation, as well as induces cell apoptosis via endoplasmic reticulum stress (26). SLC2A1 promotes glycolysis, proliferation and migration of colorectal cancer (27). The SLC2A4 level is significantly correlated with to the prognosis of breast cancer patients (28). SOCS2 acts as a bridge, facilitating the transfer of ubiquitin to SLC7A11, thereby promoting K48-linked polyubiquitination and the subsequent degradation of SLC7A11, and this process triggers the onset of ferroptosis and enhances radiosensitivity in HCC (29). Nevertheless, there is a lack of published studies investigating the correlation between these four DRGs and HCC. Our research may provide valuable insights for future experimental investigations.

The four selected genes were used to develop a prognostic signature. Patients were allocated to high- and low-risk groups based on the median score. The high-risk group exhibited worse clinical outcomes than the low-risk group. The DRGs prognostic signature was identified as an independent risk factor for HCC prognosis in the multivariate Cox regression analysis. The ROC analysis indicated that the signature surpassed conventional clinical characteristics in predicting HCC patient survival. Further, a nomogram was developed to examine the optimal consistency of the 1-, 3-, and 5-year prediction rates. The DRGs signature is reliable, accurate, and capable of identifying novel biomarkers for future research.

We identified DEGs between the high- and low-risk groups to investigate the aberrant changes in the downstream pathway. The GO and KEGG enrichment analysis results showed that the identified DEGs were mainly associated with cell cycle, DNA replication, and metabolic processes. Further, the GSEA demonstrated the significant enrichment of the DEGs in DNA repair, cell division, and cancer-related pathways. All of the aforementioned enriched pathways were strongly associated with the development of malignancies.

There is increasing evidence that immune cell infiltration is crucial to the initiation and progression of cancer, leading to adverse effects on clinical prognosis and treatment efficacy (30,31). This study found a strong correlation between disulfidptosis and the extent of immune cell infiltration in HCC, which adds to the importance of our findings. The expression of DRGs was found to be significantly correlated with the abundance of follicular helper T cells, Treg cells, M0 macrophages, M2 macrophages, and resting mast cells.

T helper (Th) cells play a crucial role in immune regulation, and the balance between Th1 and Th2 subsets is tightly controlled under physiological conditions (32). Imbalances in the Th1/Th2 ratio occur when the production of Th2 cytokines is elevated, leading to a shift towards a Th2-dominant state (33). Numerous malignancies, such as HCC, lung cancer, and gastric cancer, exhibit a Th1/Th2 imbalance marked by an abundance of Th2 cells, possibly contributing to tumor immune escape mechanisms (34). Through immune monitoring and immune evasion mechanisms, the human immune system plays a vital role in cancer progression (35,36).

The TME is primarily characterized by the presence of M2-polarized tumor-associated macrophages that secrete immunosuppressive cytokines and facilitate angiogenesis, tumor growth, and metastasis (37,38). Consistent with previous findings, our study discovered a positive correlation between the expression of DRGs and the infiltration of M0 macrophages and Th cells in HCC. Lastly, a single-cell data analysis was carried out to evaluate the expression of DRGs in immune cells. The correlation between disulfidptosis and immune cell infiltration, along with expression patterns and prognostic significance, indicated a potential mechanism involving collaborative interactions between Th cells and macrophages in the development of HCC.

Our study identified distinct immunological characteristics in two risk groups, suggesting the potential for individualized immunotherapy and targeted therapy based on these characteristics. Further, we assessed drug sensitivity based on disulfide-linked genes in HCC patients. Accurate predictions could streamline drug discoveries and development processes (39), while providing a comprehensive understanding of drug mechanisms of action (40). We also conducted in vitro studies to confirm the levels of DRGs expression in HCC cells.

Despite the fact that our study discovered the possible significance and the mechanism of disulfidptosis in HCC progression, it is essential to acknowledge its limitations. First, the functional evaluation of disulfidptosis was performed using a vitro model, which has not been validated in vivo; thus, further research is required. Second, the expression of disulfidptosis should be validated in cells to mitigate potential errors associated with the use of publicly available data sets. Third, beyond disulfidptosis, other cell death mechanisms, including apoptosis, ferroptosis, necroptosis, and cuproptosis, are intricately linked to liver cancer and warrant further investigation. Fourth, the model we have developed is based on some DRGs genes, but the potential of other DRGs in liver cancer research remains to be investigated. This study demonstrated that disulfidptosis has a regulatory effect on the cell cycle and immunological invasion; however, the underlying molecular mechanisms have yet to be explored.

Conclusions

In this study, we examined the expression of DRGs in HCC. A disulfidptosis model was developed to enhance prognostic risk stratification. Further, we conducted a comprehensive analysis of the clinical characteristics, risk score, immune cell infiltration, immune microenvironment, drug sensitivity, and experimental validation of four DRGs to assess their effect on HCC. In conclusion, we investigated the prognostic value of DRGs and their implications for immunotherapy in patients with HCC.
