A microarray expression profile and bioinformatic analysis of circular RNA in human esophageal carcinoma

Sina Cai1#, Yuqin Zhang2#, Xiaona Zhang3#, Liping Wang4, Ziqing Wu5, Weiyi Fang5, Xiaohua Chen5,6

1Department of Oncology, the Third Affiliated Hospital of Southern Medical University, Guangzhou, China; 2Department of Clinical Oncology, The Affiliated Chenzhou Hospital, Hengyang Medical School, University of South China, Chenzhou, China; 3Graceland Medical Center, the Sixth Affiliated Hospital of Sun Yat-sen University, Guangzhou, China; 4Department of Clinical Oncology, South University of Science and Technology Hospital, Shenzhen, China; 5Cancer Center, Integrated Hospital of Traditional Chinese Medicine, Southern Medical University, Guangzhou, China; 6South China Normal University-Panyu Central Hospital Joint Laboratory of Translational Medical Research, Panyu Central Hospital, Guangzhou, China

Contributions: (I) Conception and design: W Fang, X Chen; (II) Administrative support: W Fang; (III) Provision of study materials or patients: Z Wu, L Wang, X Zhang; (IV) Collection and assembly of data: S Cai, X Chen, Y Zhang; (V) Data analysis and interpretation: S Cai, X Chen; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Xiaohua Chen; Weiyi Fang. Cancer Center, Integrated Hospital of Traditional Chinese Medicine, Southern Medical University, No. 13 Shiliugang St., Guangzhou, China. Email: cxh0663@126.com; fangweiyi1975@163.com.

Background: Recent studies indicate that non-coding circular RNAs (circRNAs) are involved in the development of esophageal carcinoma (EC). This study aimed to identify differential expression of circRNAs in EC, which can provide potential biomarkers and therapeutic targets for EC treatment and improve the understanding of tumorigenesis mechanism.

Methods: First, samples (n=5) of EC tissues and adjacent normal tissue were sent for circRNA microarray detection, Second, further bioinformatic analysis was performed, including circRNA-microRNA (miRNA), co-expression network analysis, Spearman correlation test, and cancer-related circRNA-miRNA axis analysis. Finally, the expression of circRNA that our analysis predicted to be hub genes was verified in samples (n=15) of EC tissues and adjacent normal tissue by real-time polymerase chain reaction (RT-PCR).

Results: Microarray identified 102 upregulated and 67 significantly downregulated circRNAs were in EC patients’ tumors relative to adjacent normal tissue. One upregulated circRNA (hsa_circRNA_401955) showed the most connection with MREs, therefore was regarded as the hub gene by the Spearman correlation test. Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses showed that four primary pathways (mRNA surveillance, cytoskeleton actin regulation, spliceosome, and the NOD-like receptor signaling pathway) were predicted in the hub circRNA’s five connected miRNA response elements (MREs). Furthermore, cancer-related circRNA-miRNA axis analyses showed that hsa_circRNA_100375 and its four connected MREs participated in the cancer-related pathway. RT-PCR showed that hsa_circRNA_100375 and hsa_circRNA_401955 were significantly increased in the tumor tissues of EC patients.

Conclusions: Abnormal expression of circRNAs was involved in the tumorigenesis of EC. Key circRNAs, namely hsa_circRNA_401955 and hsa_circRNA_100375, may be as potential biomarkers and therapeutic targets for the treatment of EC.

Keywords: Esophageal carcinoma (EC); circular RNAs (circRNAs); microarray; microRNA sponge; bioinformatic analysis

Submitted Jan 18, 2022. Accepted for publication Mar 08, 2022.

doi: 10.21037/jgo-22-137

Introduction

Esophageal carcinoma (EC) is the eighth-most cause of morbidity and the sixth-most cause of mortality worldwide, and China has the highest incidence of all countries (1). Currently, the overall 5-year survival rate of EC patients remains very low as these patients are almost diagnosed at an advanced stage (2,3). Therefore, it is crucial to identify new biomarkers and therapeutic targets to improve the diagnosis and treatment of EC.

Noncoding RNAs (ncRNAs) are encoded with approximately 98% of the genome and play important roles in gene expression and regulation (4). Noncoding circular RNAs (circRNAs) comprise a group of endogenous RNAs that are generated by exon transcription through a back-splicing mechanism, and include exonic, intronic, and retained-intron circRNAs (5-7). CircRNAs have no 5' to 3' polarity or poly-A tails; therefore, they are widely expressed in a stable manner in mammalian cells. This raises the possibility that circRNAs may serve as biomarkers in disease diagnosis. Recent studies show that circRNAs can provide a novel type of biomarker to identify cancer (8,9), hepatic steatosis (10), and chronic thromboembolic pulmonary hypertension (11). Reportedly, circRNAs play a crucial role in the development of certain diseases, such as heart failure, diabetes, and cancer (12-14). Several studies have found that circRNAs may function as a microRNA (miRNA) sponge and may compete with endogenous RNA networks (15-17). However, little is known about whether circRNAs can be used as biomarkers for the diagnosis and medical treatment of EC.

Although promising findings have been reported regarding circRNAs in some cancers, no studies have profiled circRNA expression in EC. Therefore, we profiled circRNA expression in EC patients and performed bioinformatic analyses to identify potential circRNAs that may be biomarkers and therapeutic targets for the treatment of EC. We present the following article in accordance with the MDAR reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-137/rc).

Methods

Samples collection for microarray analysis

All tumor samples were obtained from the Panyu Central Hospital and the Third Affiliated Hospital of Southern Medical University between February 7 and May 2, 2017. All patients were male with an average age of 63.40±2.97 years and were diagnosed through clinical pathology (3 patients had moderately differentiated squamous EC; 1 patient had a highly differentiated squamous EC; and 1 had a moderately differentiated tubular adenocarcinoma of the esophagus). All samples were stored at −80 ℃ after collection. The 10 samples, including the 5 tumors and 5 normal adjacent tissues to serve as controls, were sent to Kangcheng (Shanghai, China) for Arraystar circRNA microarray analysis. All patients who participated in this study signed an informed consent form, and this study was approved by institutional ethics board of Panyu Central Hospital (No. K20170003). The Third Affiliated Hospital of Southern Medical University is also informed and agreed with the study. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

RNA isolation

Total RNA was extracted from the samples using TRIzol reagent (Invitrogen Corp., USA) according to the manufacturer’s instructions. After purification, RNA concentration and quality were determined using a NanoDrop ND-1000 spectrophotometer (NanoDrop, DE, USA). The OD260/OD28 and OD260/OD230 ratios were measured, and the RNA quality was considered suitable for research. The RNA integrity was confirmed using a denaturing agarose gel electrophoresis.

Validation of RNA sample quality

Total RNA was extracted from all samples, and the RNA quality was assessed by spectrophotometry. The OD260/OD280 ratios of the 10 samples were between 1.77 and 1.98, whereas the OD260/OD230 ratios were between 1.99 and 2.38, indicating suitable RNA quality.

Sample labeling, microarray hybridization, and analysis

The Arraystar human circRNA microarray (Arraystar, Rockville, USA) was used to detect and analyze the 10 samples. Total RNAs were digested with RNase R (Epicentre, Inc.) to exclude linear RNA and enrich circRNAs. The enriched circRNAs were then amplified and transcribed with fluorescent complementary RNA (cRNA) using a random priming method (Arraystar Super RNA Labeling Kit; Arraystar). cRNAs with the label were purified using the RNeasy Mini Kit (Qiagen, Germany). After the labeled cRNAs were fragmented, a blocking agent and the fragmentation buffer mixture was heated to 60 ℃ for 30 minutes, and a hybridization buffer was added to dilute the labeled cRNAs. Then, the hybridization solution was dispensed onto a gasket slide, which was assembled with the circRNA expression microarray slide. The slides were incubated for 17 hours at 65 ℃ in an Agilent hybridization oven. Finally, the hybridized arrays were washed, fixed, and scanned using an Agilent G2505C Scanner. Differentially expressed (DE) circRNAs were identified using the Arraystar platform. The circRNAs were considered to be significantly expressed genes if they had a fold change (FC) values >1.5 and P<0.05. Their cluster pattern, scatterplot, and volcano plot were analyzed (18,19).

Prediction of circRNA-miRNA interactions and construction of the circRNA-miRNA coexpression network

CircRNA has been shown to act as an endogenous miRNA sponge and inhibits miRNA-mediated gene expression through miRNA sequestration. To further analyze our results, the circRNA-microRNA interaction was predicted using Arraystar’s in-house software (miRNA target prediction) based on TargetScan and miRanda (20,21). To identify potential associations between the circRNA and miRNA, we selected 50 significantly DE circRNAs (including 35 upregulated and 15 downregulated circRNAs). These 50 circRNAs were screened using a threshold of FC >2.0 and P<0.05, and a coexpression network was constructed using Cytoscape 3.4.0. The resulting nodes represented the 5 putative miRNAs that were the most connected functionally to each circRNA.

Spearman correlation test of DE circRNAs in EC patients

To further examine whether there was a correlation between the expression of each of the 50 DE circRNAs and the incidence of EC, the Spearman correlation test was performed on the expression levels using Excel 2007 (Microsoft Office). Then, the circRNAs were divided into two groups. The first group had a PCC of between 0.95 and 1, while the second group had a Pearson correlation coefficient (PCC) of between −1 and −0.95. The circRNA with the greatest correlation was selected as the hub gene to construct the coexpression network using Cytoscape. Finally, the hub circRNA and its 5 connected miRNA response elements (MREs) were subjected to further bioinformatic analysis of circRNA-miRNA interactions, miRNA-mRNA interactions, miRNA target gene prediction. Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis was performed using TarBase, which was included in the software of ClueGO from Cytoscape.

Prediction of cancer-related circRNA-miRNA and KEGG pathway

To determine whether the DE of the 50 circRNAs was related to EC tumorigenesis, we used the DIANA-MiRpath v.3 platform to predict cancer pathway miRNAs and cancer-related miRNAs using a KEGG reverse search, in TarBase 7.0, based on a P value threshold of 0.05 (22). The predicted miRNAs were identified from the initial list of 221 MREs obtained from the Arraystar analysis. After the cancer-related circRNA-miRNA axis was identified, the target genes of the miRNAs were predicted using the miTarBase software option included in CluePedia of Cytoscape. Finally, the KEGG pathway of circRNA-miRNA-mRNAs was predicted using ClueGO in Cytoscape. The axis predicting a cancer-related pathway was further analyzed for its protein association using the string software option in ClueGO. A P value of ≤0.05 was set as the threshold.

PCR sample collection

All tissue samples were collected from the Panyu Central Hospital and the Third Affiliated Hospital of Southern Medical University between October 6, 2014, and May 2, 2017. All patients were male with an average age of 63.20±6.20 years and were diagnosed through pathology (14 patients had squamous EC, and 1 patient had adenocarcinoma). The samples were stored at −80 ℃ after collection. Samples (n=5) of EC tissues and adjacent normal tissue were sent for circRNA microarray analysis, The samples (n=15), comprising 15 tumors and 15 normal adjacent tissues used as controls, were analyzed for the gene expressions of hsa_circRNA_401955, and hsa_circRNA_100375, and the top 3 upregulated and the top 5 downregulated circRNAs were identified using real-time polymerase chain reaction (RT-PCR).

RT-PCR detection

Total RNA was extracted from all samples according to the processing instructions. First-strand cDNA was synthesized using 1 µg of total RNA per sample (Gene copoeia, Inc., USA). Subsequently, the cDNA samples were amplified (Gene copoeia, Inc., USA) in a final volume of 20 µL in an ABI Vii7 dx instrument (ABI, USA). Amplifications were performed as follows: 2 minutes at 50 ℃, followed by denaturation for 30 seconds at 95 ℃, and 45 cycles of 95 ℃ for 5 seconds, and 60 ℃ for 34 seconds. The experiments were carried out in triplicate. β-actin was used as an endogenous reference control. The relative gene expression level was calculated using the 2−ΔΔCt method. The primer pairs for circRNAs and β-actin are shown in Table 1.

Table 1

The primers used for the circRNAs and β-actin in the RT-PCR detection

Gene Primer (5'-3')
hsa_circRNA_401955 F: AAATTTCAGTATTTGCTGTCAAAACA; R: CTTCCCTGTTGGGAGAAACA
hsa_circRNA_100375 F: TGTCTCCCATTCCCGTCTTC; R: TAGTCCACCTCATTCTGCCC
hsa_circRNA_102034 F: CAGACAAAGACAGCAGGTTCC; R: TGTTGGAACTCTCTCTGGGG
hsa_circRNA_100191 F: AGGAGGATGAGATGCCAGTT; R: CTGGGAGGGATGGAGAAACG
hsa_circRNA_101009 F: TACTTCTCCAGCAACCCCTG; R: GGAGAGCAACTACAGTATCCTCA
hsa_circRNA_102459 F: AGACGATCTCTCTGAGGCCTA; R: CAGCAGGTGGTAGAACTCCT
hsa_circRNA_037767 F: TCAGCATCCCCAGTTACGAG; R: CGATGGCCTTGACCTCATTG
hsa_circRNA_043621 F: GCTGACCTGGAGATGCAGAT; R: TGTCTCATACTTGGTGCGGA
hsa_circRNA_087961 F: GGGCGTGATCATGAAAGGTG; R: CCGCAGACCTCCTCATTCTA
hsa_circRNA_404474 F: TTCCCGACCTCCAAGTACAC; R: TCCTCTAGCATGGCCTTCTG
β-actin-F F: ACTCTTCCAGCCTTCCTTCC; R: GTACTTGCGCTCAGGAGGAG

RT-PCR, real-time polymerase chain reaction.

Statistical analysis

Agilent Feature Extraction software (version 11.0.1.1) was used to analyze the acquired array images. The R software package limma was used for data quantile normalization and analysis. The significance of the differences between the tumor and normal adjacent tissue was estimated using a t-test. CircRNAs with FC >1.5 and P<0.05 were selected as significantly DE circRNAs for the cluster, scatter, and volcano plot analyses. P<0.05 was considered statically significant. A Spearman correlation test was performed using the correlation coefficient method of data analysis in Excel 2007.

Data access

Microarray data for all the samples have been deposited in the Gene Expression Omnibus (GEO) under the accession number of GSE103104.

Results

Validation of the RNA sample quality

RNA sample quality was assessed by electrophoresis. RNA integrity was shown to be suitable, and no evidence of DNA contamination was observed (Figure 1A).

Figure 1 The distribution of circRNAs and distinguishable circRNAs identified through scatter plot and volcano plot. (A) The distribution of circRNAs shown by box plots in the 10 samples. After normalization, the distributions were nearly the same. (B) Left: a volcano plot of distinguished circRNAs. The dots above the top and the bottom green line revealed that the expression was more than 1.5-fold. Right: a volcano plot of circRNAs. The red point represents for 1.5-fold up and down regulated of circRNAs expression.

CircRNA expression profiling of EC patients

The Arraystar Human circRNA Microarray was used to identify DE circRNAs in the EC tumors and the normal adjacent tissues. A total of 11,926 circRNAs were detected by the microarray. After normalization of the raw data, screening for log2 FC values greater than 1.5 and P values less than 0.05 showed that 102 circRNAs were significantly upregulated and 67 were downregulated in the tumor tissues. However, FC values greater than 2.0 and P values less than 0.05 showed that only 35 circRNAs were significantly upregulated and 15 were downregulated (Table 2). Hsa_circRNA_043621 and hsa_circRNA_102459 were identified as having the most significant upregulated and downregulated fold changes, respectively. Scatterplot and volcano plot visualization were constructed to identify differences in expression of the circRNAs in the tumor and normal adjacent tissues (Figure 1B). Hierarchical clustering analysis at the expression levels of the circRNAs was performed for the samples (Figure 2).

Table 2

Microarray analysis of circRNAs which were upregulated or downregulated in patients with esophageal carcinoma

circRNA P value FDR FC Predicted MREs
MRE1 MRE2 MRE3 MRE4 MRE5
Upregulation
   hsa_circRNA_028826 0.0361 0.5643 2.0161 hsa-miR-93-3p hsa-miR-7843-5p hsa-miR-4530 hsa-miR-4685-5p hsa-miR-92a-2-5p
   hsa_circRNA_053294 0.0091 0.5642 2.0285 hsa-miR-875-3p hsa-miR-584-5p hsa-miR-3074-5p hsa-miR-3622a-3p hsa-miR-4286
   hsa_circRNA_101287 0.0296 0.5643 2.5694 hsa-miR-499a-3p hsa-miR-526b-5p hsa-miR-363-3p hsa-miR-208a-5p hsa-miR-578
   hsa_circRNA_100375 0.0421 0.5668 2.6894 hsa-miR-324-3p hsa-miR-29a-5p hsa-miR-580-3p hsa-miR-485-3p hsa-miR-149-5p
   hsa_circRNA_405813 0.0186 0.5642 2.0341 hsa-miR-665 hsa-miR-6884-5p hsa-miR-4459 hsa-miR-1285-3p hsa-miR-1273g-3p
   hsa_circRNA_401955 0.0275 0.5643 2.1596 hsa-miR-1277-5p hsa-miR-3064-5p hsa-miR-642a-5p hsa-miR-6504-5p hsa-miR-141-5p
   hsa_circRNA_404905 0.0310 0.5643 2.3807 hsa-miR-8060 hsa-miR-185-5p hsa-miR-5008-3p hsa-miR-4793-3p hsa-miR-656-5p
   hsa_circRNA_102339 0.0006 0.5320 2.2427 hsa-miR-875-5p hsa-miR-215-5p hsa-miR-192-5p hsa-let-7a-2-3p hsa-miR-208a-5p
   hsa_circRNA_100045 0.0163 0.5642 2.0009 hsa-miR-764 hsa-miR-149-3p hsa-miR-650 hsa-miR-659-5p hsa-miR-93-3p
   hsa_circRNA_406487 0.0330 0.5643 2.2969 hsa-miR-297 hsa-miR-541-3p hsa-miR-155-5p hsa-miR-153-5p hsa-miR-4775
   hsa_circRNA_092512 0.0396 0.5643 2.0555 hsa-miR-4763-3p hsa-miR-3619-5p hsa-miR-7150 hsa-miR-1207-5p hsa-miR-6756-5p
   hsa_circRNA_103923 0.0445 0.5713 2.0984 hsa-miR-429 hsa-miR-23b-5p hsa-miR-200b-3p hsa-miR-105-3p hsa-miR-656-5p
   hsa_circRNA_001655 0.0313 0.5643 2.9594 hsa-miR-6813-5p hsa-miR-5001-5p hsa-miR-762 hsa-miR-4498 hsa-miR-185-3p
   hsa_circRNA_400082 0.0158 0.5642 2.7868 hsa-miR-485-5p hsa-miR-648 hsa-miR-574-5p hsa-miR-454-3p hsa-let-7g-3p
   hsa_circRNA_101693 0.0280 0.5643 2.3458 hsa-miR-1301-3p hsa-miR-384 hsa-miR-141-5p hsa-miR-646 hsa-miR-373-5p
   hsa_circRNA_033628 0.0165 0.5642 3.0872 hsa-miR-4763-3p hsa-miR-612 hsa-miR-3615 hsa-miR-6511b-5p hsa-miR-635
   hsa_circRNA_043621 0.0089 0.5642 5.3218 hsa-miR-223-3p hsa-miR-4268 hsa-miR-3692-3p hsa-miR-657 hsa-miR-6871-3p
   hsa_circRNA_405551 0.0382 0.5643 2.3020 hsa-miR-6895-5p hsa-miR-378i hsa-miR-1236-3p hsa-miR-6736-5p hsa-miR-892b
   hsa_circRNA_404474 0.0174 0.5641 3.5533 hsa-miR-6743-3p hsa-miR-3157-5p hsa-miR-1205 hsa-miR-378h hsa-miR-5009-5p
   hsa_circRNA_048574 0.0266 0.5643 2.4765 hsa-miR-4725-3p hsa-miR-6858-5p hsa-miR-5698 hsa-miR-4723-5p hsa-miR-7843-5p
   hsa_circRNA_084900 0.0051 0.5642 2.3135 hsa-miR-4778-3p hsa-miR-877-3p hsa-miR-6881-3p hsa-miR-5196-3p hsa-miR-6809-3p
   hsa_circRNA_061346 0.0123 0.5642 2.6457 hsa-miR-4778-3p hsa-miR-5196-3p hsa-miR-5193 hsa-miR-877-3p hsa-miR-103a-2-5p
   hsa_circRNA_027446 0.0193 0.5642 2.5080 hsa-miR-129-5p hsa-miR-331-3p hsa-miR-6882-3p hsa-miR-3925-3p hsa-miR-1236-3p
   hsa_circRNA_001244 0.0025 0.5598 2.4528 hsa-miR-6861-5p hsa-miR-619-5p hsa-miR-1303 hsa-miR-125a-3p hsa-miR-5787
   hsa_circRNA_406748 0.0440 0.5713 3.5072 hsa-miR-5683 hsa-miR-588 hsa-miR-4538 hsa-miR-6740-5p hsa-miR-7110-3p
   hsa_circRNA_067209 0.0400 0.5643 2.3571 hsa-miR-8082 hsa-miR-146b-3p hsa-miR-6876-3p hsa-miR-4534 hsa-miR-7112-3p
   hsa_circRNA_101877 0.0024 0.5598 2.1485 hsa-miR-449c-5p hsa-miR-27a-3p hsa-miR-27b-3p hsa-miR-887-5p hsa-miR-636
   hsa_circRNA_404864 0.0498 0.5758 2.3992 hsa-miR-4742-3p hsa-miR-4753-3p hsa-miR-4516 hsa-miR-7847-3p hsa-miR-4708-3p
   hsa_circRNA_050998 0.0031 0.5642 2.2380 hsa-miR-433-3p hsa-miR-2277-5p hsa-miR-937-5p hsa-miR-1178-5p hsa-miR-5089-5p
   hsa_circRNA_006226 0.0459 0.5713 2.2582 hsa-miR-548a-5p hsa-miR-548i hsa-miR-4668-3p hsa-miR-548ab hsa-miR-548ar-5p
   hsa_circRNA_090364 0.0098 0.5642 2.5156 hsa-miR-378h hsa-miR-378f hsa-miR-378b hsa-miR-378c hsa-miR-378a-3p
   hsa_circRNA_089761 0.0318 0.5643 4.0300 hsa-miR-3529-3p hsa-miR-6891-3p hsa-miR-554 hsa-miR-5196-3p hsa-miR-384
   hsa_circRNA_071312 0.0340 0.5643 2.2288 hsa-miR-4476 hsa-miR-4722-5p hsa-miR-377-3p hsa-miR-1207-5p hsa-miR-3140-5p
   hsa_circRNA_074306 0.0159 0.5642 2.8455 hsa-miR-4763-3p hsa-miR-3157-5p hsa-miR-1249-5p hsa-miR-198 hsa-miR-6797-5p
   hsa_circRNA_055755 0.0410 0.5643 2.1324 hsa-miR-7156-3p hsa-miR-6845-5p hsa-miR-103a-2-5p hsa-miR-211-5p hsa-miR-4685-3p
Downregulation
   hsa_circRNA_102459 0.0219 0.5642 3.8287 hsa-miR-508-5p hsa-miR-766-3p hsa-miR-328-3p hsa-miR-761 hsa-miR-497-3p
   hsa_circRNA_102034 0.0168 0.5642 2.9900 hsa-miR-26b-3p hsa-miR-382-5p hsa-miR-181a-3p hsa-miR-330-5p hsa-miR-125a-3p
   hsa_circRNA_060102 0.0338 0.5643 2.1602 hsa-miR-4459 hsa-miR-5787 hsa-miR-6736-5p hsa-miR-4270 hsa-miR-6804-5p
   hsa_circRNA_101009 0.0365 0.5643 2.3586 hsa-miR-653-5p hsa-miR-509-3p hsa-miR-584-3p hsa-miR-370-3p hsa-miR-93-3p
   hsa_circRNA_406963 0.0362 0.5643 2.1734 hsa-miR-4668-5p hsa-miR-4739 hsa-miR-3153 hsa-miR-608 hsa-miR-372-5p
   hsa_circRNA_102033 0.0278 0.5643 2.2037 hsa-miR-382-5p hsa-miR-330-5p hsa-miR-26b-3p hsa-miR-489-3p hsa-miR-514a-5p
   hsa_circRNA_100191 0.0148 0.5642 2.5797 hsa-miR-647 hsa-miR-588 hsa-miR-660-3p hsa-miR-661 hsa-miR-552-3p
   hsa_circRNA_085362 0.0375 0.5643 2.1945 hsa-miR-1248 hsa-miR-1205 hsa-miR-623 hsa-miR-5002-5p hsa-miR-4753-3p
   hsa_circRNA_037767 0.0466 0.5713 2.7396 hsa-miR-1205 hsa-miR-6772-3p hsa-miR-3907 hsa-miR-1184 hsa-miR-4664-3p
   hsa_circRNA_050898 0.0204 0.5642 2.0588 sa-miR-3909 hsa-miR-4691-5p hsa-miR-1226-5p hsa-miR-6792-3p hsa-miR-6762-3p
   hsa_circRNA_100239 0.0165 0.5642 2.1057 hsa-miR-602 hsa-miR-22-3p hsa-miR-320b hsa-miR-320a hsa-miR-761
   hsa_circRNA_101319 0.0477 0.5729 2.0857 hsa-miR-138-5p hsa-miR-135a-3p hsa-miR-338-3p hsa-miR-135b-5p hsa-miR-135a-5p
   hsa_circRNA_103942 0.0395 0.5643 2.3015 hsa-miR-382-5p hsa-miR-183-3p hsa-miR-134-3p hsa-miR-328-5p hsa-miR-541-3p
   hsa_circRNA_054220 0.0148 0.5642 2.2275 hsa-miR-513b-5p hsa-miR-4435 hsa-miR-6780b-5p hsa-miR-335-3p hsa-miR-4665-5p
   hsa_circRNA_402901 0.0015 0.5320 2.0481 hsa-miR-6845-3p hsa-miR-4279 hsa-miR-450a-2-3p hsa-miR-520h hsa-miR-520g-3p

There were 35 upregulated and 15 downregulated circRNAs that had a fold change of more than 2 and a P value less than 0.05. MREs, miRNA response elements; FDR, false discovery rate. FC, fold change.

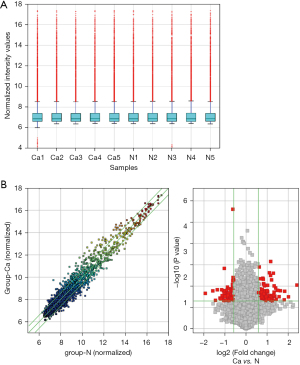

Figure 2 Profiling of circRNAs detected by microarray in esophageal carcinoma patients. (A) CircRNA microarray expression data among the 10 samples; (B) heap map of the differentially expressed circRNAs. The red represents high expression, while the green represents low expression.

Prediction of the MREs of circRNAs and construction of the circRNA-miRNA coexpression network

CircRNA-miRNA interactions were predicted using the Arraystar in-house software (miRNA target prediction). A total of 221 MREs were predicted to combine with the DE circRNAs based on our predefined FC >2.0 and P<0.05 thresholds (Table 2). A circRNA-miRNA coexpression network was constructed to show the potential associations among the circRNAs and miRNAs (Figure 3).

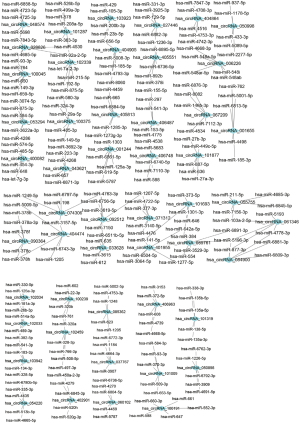

Figure 3 The co-expression network of circRNA-miRNA. The network of significant differentially expressed circRNAs (fold change of more than 2.0) and its connected MREs was constructed by Cytocape. The up-regulated circ-RNA-miRNA coexpression network and the downregulated circ-RNA-miRNA co-expression network. MREs, miRNA response elements.

Spearman correlation test of DE circRNAs

The PCC value was analyzed using Spearman’s correlation test. Values between 0.95 and 1 and between −1 and −0.95 were chosen to calculate the association between the two circRNAs. The result showed that hsa_circRNA_401955 had 6 PCC values (0.970 with hsa_circRNA_406487, 0.976 with hsa_circRNA_092512, 0.981 with hsa_circRNA_400082, 0.958 with hsa_circRNA_404864, 0.973 with hsa_circRNA_074306, and 0.990 with hsa_circRNA_055755) within the above ranges and was therefore considered the most connected circRNA. The relation network of the hub circRNA and its connected circRNAs is shown in Figure 4. Red and green nodes represent upregulated and downregulated circRNAs, respectively. The circRNA-miRNA coexpression network showed that hsa_circRNA_401955 was connected to hsa-miR-141-5p, hsa-miR-642a-5p, hsa-miR-1277-5p, hsa-miR-3064-5p, and hsa-miR-6504-5p. The combined sites between the circRNA and the MREs were predicted by Arraystar in-house software (miRNA target prediction) (Figure 5). KEGG pathway analysis showed that 4 primary pathways (including mRNA surveillance, cytoskeleton actin regulation, the spliceosome and NOD-like receptor signaling pathway) in the target gene of MREs were associated with the hub circRNA (P<0.05; Figure 6).

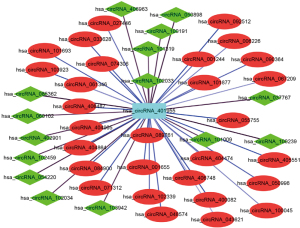

Figure 4 The co-expression network of the hub circRNA and its related circRNAs. The red nodes represent a positive correlation, the green nodes represent a negative correlation. The colors of the connected lines from black to blue represent a low to high value of the correlation coefficient.

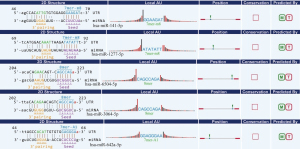

Figure 5 The combined sites of the hub circRNA (hsa_circRNA_401955) and its 5 connected MREs. MREs, miRNA response elements.

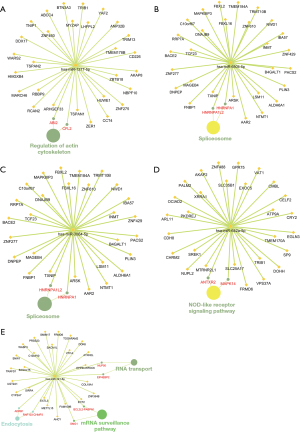

Figure 6 KEGG pathway analysis of the hub circRNA’s (hsa_circRNA_401955) related with MREs. (A-E) KEGG pathway analysis of hsa-miR-1277-5p, hsa-miR-6504-5p, hsa-miR-3064-5p, hsa-miR-642a-5p, and has-miR-141-5p and their target genes predicted by TarBase, respectively. The primary pathway was cytoskeleton actin regulation in (A), spliceosome in (B) and (C), NOD-like receptor in (D), and mRNA surveillance in the (E) signaling pathway. P<0.05. KEGG, Kyoto Encyclopedia of Genes and Genomes; MREs, miRNA response elements.

Prediction of cancer-related circRNA-miRNA target genes and KEGG pathways

To further understand the molecular mechanisms of the circRNAs, cancer pathway and cancer-related miRNAs were predicted using DIANA-MiRpath v.3 and identified from the initial list of 221 MREs. Four miRNA axes were identified among the MREs [(I) hsa-miR-324-3p/hsa-miR-29a-5p/hsa-miR-485-3p/hsa-miR-149-5p; (II) hsa-miR-485-5p/hsa-miR-574-5p/hsa-miR-454-3p/hsa-let-7g-3p; (III) hsa-miR-26b-3p/hsa-miR-382-5p/hsa-miR-181a-3p/hsa-miR-330-5p and (IV) hsa-miR-138-5p/hsa-miR-338-3p/hsa-miR-135b-5p/hsa-miR-135a-5p). The circRNA-miRNA coexpression network showed that these MREs interacted with hsa_circRNA_100375, hsa_circRNA_400082, hsa_circRNA_102034, and hsa_circRNA_101319. The target genes of the interacting miRNAs axis were predicted using the miRTarBase software option included in CluePedia of Cytoscape. The KEGG pathway of the miRNA-mRNA network was constructed using ClueGo. The results showed that the axis of has_circRNA_100375/hsa-miR324-3p/hsa-miR29a-5p/hsa-miR-485-3p/hsa-miR-149-5p was involved in a cancer-related pathway (Figure 7A). The seed sequence of the combined sites of the circRNA and 4 miRNAs was obtained using the Arraystar in-house software (miRNA target prediction) (Figure 7B). Finally, we further analyzed the proteins in a cancer-related pathway with their two closely related neighborhoods. The results showed that fibroblast growth factor receptor 1 (FGFR1), prostaglandin E receptor 2 (PTGER2), Wnt family member 9B (WNT9B), Wnt family member 2B (WNT2B), Sp1transcription factor (SP1), CREB binding protein (CREBBP), interleukin 6 (IL-6), and disheveled segment polarity protein2 (DVL2) played key roles in the pathway (Figure 7C).

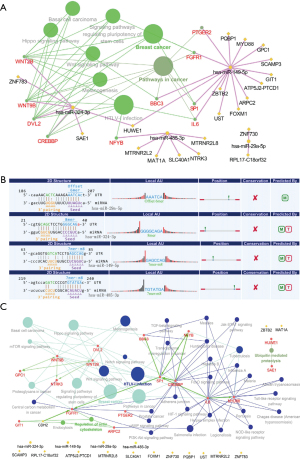

Figure 7 KEGG pathway and protein analysis of hsa_circRNA_100375/hsa-miR-324-3p/hsa-miR-29a-5p/hsa-miR-485-3p/hsa-miR-149-5p axis. (A) The KEGG pathway showed the axis involved in the cancer-related pathway; (B) the combined sites of hsa_circRNA_100375 and its 4 cancer-related MREs (hsa-miR-324-3p/hsa-miR-29a-5p/hsa-miR-485-3p/hsa-miR-149-5p). (C) Certain hub proteins, such as FGFR1, PTGER2, WNT9B, WNT2B, SP1, CREBBP, IL-6, and DVL2, played key roles in the cancer-related pathway. KEGG, Kyoto Encyclopedia of Genes and Genomes. MREs, miRNA response elements. FGFR1, fibroblast growth factor receptor 1; PTGER2, prostaglandin E receptor 2; WNT9B, wingless-type MMTV integration site family, member 9B; WNT2B, wingless-type MMTV integration site family, member 2B; SP1, transcription factor Sp1; CREBBP, cAMP-response element binding protein; IL-6, interleukin-6; DVL2, disheveled 2.

RT-PCR validation

The results showed that the expressions of hub genes hsa_circRNA_401955 and hsa_circRNA_100375 were significantly increased in the tumor samples compared to the normal adjacent tissues in the patients with EC (P<0.05; Figure 8A). The 3 most upregulated circRNAs (hsa_circRNA_043621, hsa_circRNA_087961, and hsa_circRNA_404474) and the 5 most downregulated circRNAs (hsa_circRNA_102034, hsa_circRNA_100191, hsa_circRNA_101009, hsa_circRNA_102459, and hsa_circRNA_037767) identified were also validated by RT-PCR. Compared to the controls, the results showed that the relative gene expressions of the upregulated circRNAs were all significantly increased in tumor samples, while the downregulated circRNAs were decreased in the tumor samples (P<0.05; Figure 8B).

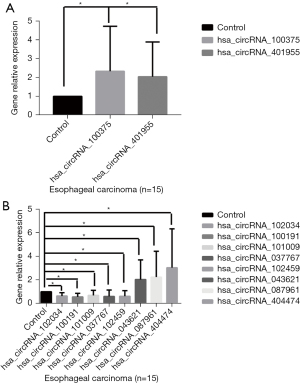

Figure 8 The relative gene expression of the most differentially expressed circRNAs (hsa_circRNA_100375, hsa_circRNA_401955, the top 3 upregulated circRNAs, and the top 5 downregulated circRNAs). The tissue of 15 patients with esophageal carcinoma were analyzed by using RT-PCR. The normal adjacent tissue samples were used as the control. (A) The relative gene expression of hsa_circRNA_100375 and hsa_circRNA_401955. The results showed that the 2 circRNAs were significantly decreased in the tumor samples compared to the normal adjacent tissues (*, P<0.05). (B) The relative gene expression of the top 3 upregulated and top 5 downregulated circRNAs. The results showed that, compared with the control samples, the top 5 downregulated circRNAs (hsa_circRNA_102034, hsa_circRNA_100191, hsa_circRNA_101009, hsa_circRNA_037767, and hsa_circRNA_102459) were significantly decreased in the tumor tissues, while the top three upregulated circRNAs (hsa_circRNA_043621, hsa_circRNA_087961 and hsa_circRNA_404474) were significantly increased in the tumor tissues (*, P<0.05). RT-PCR, real-time polymerase chain reaction.

Discussion

In recent years, circRNA has become an important research topic because of its key role in the regulation of gene expression (23). After being found in RNA viruses, circRNAs were initially regarded as splicing errors (24). The development of sequencing technology has enabled more than 7,000 human diseases related to circRNAs to be identified, and reports continue to show that circRNAs promote the progression of some cancers (15,16,25,26) and the development of diseases such as nervous system diseases (27,28) and atherosclerosis diseases (29). Three types of circRNAs have been identified: exonic circRNA (the 5' end connects to the 3' end as a cyclic annular form), circular intronic RNA (the 5' end connects to the 2' end as a cyclic annular form), and exon-intron circular RNAs (induced by reverse splicing, these RNAs connect with exons and introns) (30,31). CircRNAs are widely expressed and have the properties of stability, conservation, and tissue specificity, which make them perfectly suited to be biomarkers that can be used in disease diagnosis (32).

In this study, we found 169 significantly DE circRNAs, including 102 upregulated and 67 downregulated circRNAs, in EC tumors compared to normal adjacent tissues based on a microarray analysis. The 3 most upregulated circRNAs and the 5 most downregulated circRNAs identified were validated by RT-PCR. The results showed that, compared to the normal adjacent tissues of EC patients, the relative gene expressions of the upregulated circRNAs were significantly increased in the tumor samples, while gene expression of the downregulated circRNAs were decreased in the tumor samples. These findings indicate that circRNA dysregulation may be associated with EC tumorigenesis and that certain key circRNAs may be biomarkers for EC.

Reports show that certain circRNAs, especially exonic circRNAs, can inhibit the miRNA-mediated regulation of gene expression by sequestering the relevant miRNAs (33). These circRNAs combine with miRNAs and inhibit the degradation of mRNAs through competitive integration with miRNAs (34). CircRNAs function as miRNA sponges (for example, ciRS-7, which adsorbs to miRNA-7 through its binding site and hence quenches normal miRNA-7 functions) (35-37). Our findings indicate that circRNA can directly suppress miRNAs and inhibit downstream miRNA target genes, thereby acting as a feedback loop in the circRNA-miRNA-mRNA network.

In our study, we identified circRNA-miRNA interactions using Arraystar in-house software (miRNA target prediction). In total, 221 MREs were predicted to combine with the DE circRNAs based on our predefined thresholds of FC >2.0 and P<0.05 thresholds. The Spearman correlation test results showed that hsa_circRNA_401955 was the most connected circRNA and was therefore regarded as the hub. This circRNA is an exonic circRNA and is located on chr18 from 32386182 to 32392077, which is annotated as hsa_circ_0108310 in circBase, and its gene symbol is dystrobrevin alpha (DTNA). This gene encodes a cytoskeleton-interacting membrane protein that is involved in the formation and stability of synapses in the permeability of the blood-brain barrier and may be related to congenital heart malformation (38,39). However, the role of hsa_circRNA_401955 in cancer has not been studied. Based on the MRE analysis, we observed that 5 MREs (hsa-miR-141-5p, hsa-miR-642a-5p, hsa-miR-1277-5p, hsa-miR-3064-5p and hsa-miR-6504-5p) were connected to this hub circRNA. Recent study shows that hsa-miR-141-5p is significantly upregulated in ovarian cancer tissue compared to normal tissue (40). Hsa-miR-642a-5p was identified as the competing endogenous RNA in regulating Linc00974 and KRT19 to affect the proliferation and invasion of hepatocellular carcinoma (41). Hsa-miR-1277-5p was determined to be a prognostic marker for colorectal cancer staging (42). Hsa-miR-3064-5p was found to be downregulated in aristolochic acid (AAN)-upper urinary tract carcinoma (UUC) and in non-AAN-UUC based on miRNA microarray profiling analysis (43). Hsa-miR-6504-5p was found to target the TRAF3 interacting protein 2 (TRAF3IP2), which plays a central role in the innate immune system response to pathogens, inflammatory signals, and stress (44). KEGG analysis showed that 4 primary pathways (mRNA surveillance, cytoskeleton actin regulation, the spliceosome, and the NOD-like receptor signaling pathway) were predicted within the hub circRNA-miRNA-mRNA network. These results indicate that the hub circRNA and the genes in the pathway are potential therapeutic targets and may help to advance our understanding of the mechanism underlying EC tumorigenesis.

To further analyze the role of the circRNA-miRNA in EC patients, we used the DIANA-MiRpath v.3 platform to predict the cancer-related miRNAs. Interestingly, 4 miRNA axes were identified from the MREs. From the circRNA-miRNA coexpression network, we observed that the 4 axes were combined with the 4 circRNAs (hsa_circRNA_100375, hsa_circRNA_400082, hsa_circRNA_102034 and hsa_circRNA_101319, respectively). MiRNAs always negatively regulate their target genes (45-47). To identify the key pathway in the 4 miRNA axes, we used the miRTarBase software implemented in CluePedia of Cytoscape to predict the miRNA target genes and used ClueGo to predict the KEGG pathway (48). Results showed that the hsa_circRNA_100375/hsa-miR-324-3p/hsa-miR-29a-5p/hsa-miR-485-3p/hsa-miR-149-5p axis was involved in a cancer-related pathway. Hsa_circRNA_100375 is also exonic and is located on chr1 from165859440 to 165860559, which is annotated as hsa_circ_0006758 in circBase, and its gene symbol is uridine-cytidine kinase 2 (UCK2). UCK2 has been reported to encode a pyrimidine ribonucleoside kinase [the functions of which include the phosphorylation of uridine and cytidine to uridine monophosphate (UMP) and cytidine monophosphate (CMP), respectively] and has been implicated in the uncontrolled proliferation of abnormal cells, which is a hallmark of cancer (49). Reports show that hsa-miR-324-3p is related to kidney cancer (50). Hsa-miR-29a-5p is significantly downregulated in laryngeal carcinoma (51). Hsa-miR-485-3p was found to be significantly downregulated in stage II colorectal cancer (CRC) tumors compared to normal tissues (52). Hsa-miR-149-5p contains a binding site for the long noncoding RNA MALAT1, which promotes the development of triple-negative breast cancer (53). KEGG pathway analysis in the cancer-related axis showed that certain hub proteins, such as FGFR1, PTGER2, WNT9B, WNT2B, SP1, CREBBP, IL-6 and DVL2, may play a key role in this pathway. Thus, these hub proteins maybe provide candidate targets for the treatment of EC. These hub proteins and hsa_circRNA_100375 may be the key genes regulating EC tumorigenesis.

Finally, the expression of hsa_circRNA_100375 and hsa_circRNA_401955 was detected in 15 EC patients by PCR. The results showed that these 2 hub circRNAs were significantly increased in the tumor samples compared to the normal adjacent tissues. These results indicate that the hsa_circRNA_100375 and hsa_circRNA_401955 play a key role in EC. As the stability and sensibility of circRNAs, they may be as potential biomarkers of therapeutic targets for the treatment EC, while there still some are the challenges in the clinical application of circRNAs such as the large-scale production and preparation technology, delivery technology.

Conclusions

circRNA dysregulation is involved in EC tumorigenesis. Hsa_circRNA_401955 was found to be the hub circRNA, and 4 primary pathways were predicted to occur in this hub circRNA-miRNA-mRNA network. Hsa_circRNA_100375 and its associated MRE axis are involved in a cancer-related pathway. Several key circRNAs and proteins may serve as potential biomarkers and therapeutic targets for EC. Furthermore, our findings improve our understanding of the EC tumorigenesis mechanism. However, this study is limited by the relatively small sample size. Our results showed that circRNAs have an effect on EC tumorigenesis, but the precise mechanism remains to be elucidated.

Acknowledgments

Funding: This work was supported by the grants from the Technical NewStar of Zhujiang, Pan Yu District, Guangzhou (No. 2013-special-15-6.10) and the Science and Technology Program of Guangzhou (No. 201804010012).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-137/rc

Data Sharing Statement: Available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-137/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jgo.amegroups.com/article/view/10.21037/jgo-22-137/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of Panyu Central Hospital (No. K20170003) and informed consent was taken from all the patients. The Third Affiliated Hospital of Southern Medical University is also informed and agreed with the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

  1. Siegel RL, Miller KD, Jemal A. Cancer Statistics, 2017. CA Cancer J Clin 2017;67:7-30. [Crossref] [PubMed]
  2. Hikami S, Shiozaki A, Fujiwara H, et al. Outcome of Patients with Pathological Complete Response after Neoadjuvant Chemotherapy in Advanced Esophageal Cancer. Gan To Kagaku Ryoho 2017;44:1796-8. [PubMed]
  3. Saddoughi SA, Reinersman JM, Zhukov YO, et al. Survival After Surgical Resection of Stage IV Esophageal Cancer. Ann Thorac Surg 2017;103:261-6. [Crossref] [PubMed]
  4. Zhang Y, Xue W, Li X, et al. The Biogenesis of Nascent Circular RNAs. Cell Rep 2016;15:611-24. [Crossref] [PubMed]
  5. Liang D, Wilusz JE. Short intronic repeat sequences facilitate circular RNA production. Genes Dev 2014;28:2233-47. [Crossref] [PubMed]
  6. Greene J, Baird AM, Brady L, et al. Circular RNAs: Biogenesis, Function and Role in Human Diseases. Front Mol Biosci 2017;4:38. [Crossref] [PubMed]
  7. Beermann J, Piccoli MT, Viereck J, et al. Non-coding RNAs in Development and Disease: Background, Mechanisms, and Therapeutic Approaches. Physiol Rev 2016;96:1297-325. [Crossref] [PubMed]
  8. Zhang HD, Jiang LH, Sun DW, et al. CircRNA: a novel type of biomarker for cancer. Breast Cancer 2018;25:1-7. [Crossref] [PubMed]
  9. Meng S, Zhou H, Feng Z, et al. CircRNA: functions and properties of a novel potential biomarker for cancer. Mol Cancer 2017;16:94. [Crossref] [PubMed]
  10. Guo XY, He CX, Wang YQ, et al. Circular RNA Profiling and Bioinformatic Modeling Identify Its Regulatory Role in Hepatic Steatosis. Biomed Res Int 2017;2017:5936171. [Crossref] [PubMed]
  11. Miao R, Wang Y, Wan J, et al. Microarray expression profile of circular RNAs in chronic thromboembolic pulmonary hypertension. Medicine (Baltimore) 2017;96:e7354. [Crossref] [PubMed]
  12. Rong D, Sun H, Li Z, et al. An emerging function of circRNA-miRNAs-mRNA axis in human diseases. Oncotarget 2017;8:73271-81. [Crossref] [PubMed]
  13. Bure IV, Nemtsova MV. Methylation and Noncoding RNAs in Gastric Cancer: Everything Is Connected. Int J Mol Sci 2021;22:5683. [Crossref] [PubMed]
  14. Yi YC, Chen XY, Zhang J, et al. Novel insights into the interplay between m6A modification and noncoding RNAs in cancer. Mol Cancer 2020;19:121. [Crossref] [PubMed]
  15. Liang HF, Zhang XZ, Liu BG, et al. Circular RNA circ-ABCB10 promotes breast cancer proliferation and progression through sponging miR-1271. Am J Cancer Res 2017;7:1566-76. [PubMed]
  16. Zhong Z, Huang M, Lv M, et al. Circular RNA MYLK as a competing endogenous RNA promotes bladder cancer progression through modulating VEGFA/VEGFR2 signaling pathway. Cancer Lett 2017;403:305-17. [Crossref] [PubMed]
  17. Zhang P, Wu W, Chen Q, et al. Non-Coding RNAs and their Integrated Networks. J Integr Bioinform 2019;16:20190027. [Crossref] [PubMed]
  18. Liu YC, Li JR, Sun CH, et al. CircNet: a database of circular RNAs derived from transcriptome sequencing data. Nucleic Acids Res 2016;44:D209-15. [Crossref] [PubMed]
  19. Ghosal S, Das S, Sen R, et al. Circ2Traits: a comprehensive database for circular RNA potentially associated with disease and traits. Front Genet 2013;4:283. [Crossref] [PubMed]
  20. Enright AJ, John B, Gaul U, et al. MicroRNA targets in Drosophila. Genome Biol 2003;5:R1. [Crossref] [PubMed]
  21. Pasquinelli AE. MicroRNAs and their targets: recognition, regulation and an emerging reciprocal relationship. Nat Rev Genet 2012;13:271-82. [Crossref] [PubMed]
  22. Vlachos IS, Zagganas K, Paraskevopoulou MD, et al. DIANA-miRPath v3.0: deciphering microRNA function with experimental support. Nucleic Acids Res 2015;43:W460-6. [Crossref] [PubMed]
  23. Jeck WR, Sorrentino JA, Wang K, et al. Circular RNAs are abundant, conserved, and associated with ALU repeats. RNA 2013;19:141-57. [Crossref] [PubMed]
  24. Sanger HL, Klotz G, Riesner D, et al. Viroids are single-stranded covalently closed circular RNA molecules existing as highly base-paired rod-like structures. Proc Natl Acad Sci U S A 1976;73:3852-6. [Crossref] [PubMed]
  25. Memczak S, Jens M, Elefsinioti A, et al. Circular RNAs are a large class of animal RNAs with regulatory potency. Nature 2013;495:333-8. [Crossref] [PubMed]
  26. Huang YS, Jie N, Zou KJ, Weng Y. Expression profile of circular RNAs in human gastric cancer tissues. Mol Med Rep 2017;16:2469-76. [Crossref] [PubMed]
  27. Huang G, Li S, Yang N, et al. Recent progress in circular RNAs in human cancers. Cancer Lett 2017;404:8-18. [Crossref] [PubMed]
  28. Kumar L. Circular RNAs: the Emerging Class of Non-coding RNAs and Their Potential Role in Human Neurodegenerative Diseases. Mol Neurobiol 2017;54:7224-34. [Crossref] [PubMed]
  29. Burd CE, Jeck WR, Liu Y, et al. Expression of linear and novel circular forms of an INK4/ARF-associated non-coding RNA correlates with atherosclerosis risk. PLoS Genet 2010;6:e1001233. [Crossref] [PubMed]
  30. Zhang XO, Wang HB, Zhang Y, et al. Complementary sequence-mediated exon circularization. Cell 2014;159:134-47. [Crossref] [PubMed]
  31. Li Z, Huang C, Bao C, et al. Exon-intron circular RNAs regulate transcription in the nucleus. Nat Struct Mol Biol 2015;22:256-64. [Crossref] [PubMed]
  32. Schwanhäusser B, Busse D, Li N, et al. Global quantification of mammalian gene expression control. Nature 2011;473:337-42. Erratum in: Nature 2013;495:126-7. [Crossref] [PubMed]
  33. Hansen TB, Jensen TI, Clausen BH, et al. Natural RNA circles function as efficient microRNA sponges. Nature 2013;495:384-8. [Crossref] [PubMed]
  34. Hansen TB, Wiklund ED, Bramsen JB, et al. miRNA-dependent gene silencing involving Ago2-mediated cleavage of a circular antisense RNA. EMBO J 2011;30:4414-22. [Crossref] [PubMed]
  35. Peng L, Yuan XQ, Li GC. The emerging landscape of circular RNA ciRS-7 in cancer Oncol Rep 2015;33:2669-74. (Review). [Crossref] [PubMed]
  36. Pan H, Li T, Jiang Y, et al. Overexpression of Circular RNA ciRS-7 Abrogates the Tumor Suppressive Effect of miR-7 on Gastric Cancer via PTEN/PI3K/AKT Signaling Pathway. J Cell Biochem 2018;119:440-6. [Crossref] [PubMed]
  37. Zhao Y, Alexandrov PN, Jaber V, et al. Deficiency in the Ubiquitin Conjugating Enzyme UBE2A in Alzheimer’s Disease (AD) is Linked to Deficits in a Natural Circular miRNA-7 Sponge (circRNA; ciRS-7). Genes (Basel) 2016;7:116. [Crossref] [PubMed]
  38. Requena T, Cabrera S, Martín-Sierra C, et al. Identification of two novel mutations in FAM136A and DTNA genes in autosomal-dominant familial Meniere’s disease . Hum Mol Genet 2015;24:1119-26. [Crossref] [PubMed]
  39. Zlotina A, Nikulina T, Yany N, et al. Ring chromosome 18 in combination with 18q12.1 (DTNA) interstitial microdeletion in a patient with multiple congenital defects. Mol Cytogenet 2016;9:18. [Crossref] [PubMed]
  40. Wang L, Zhu MJ, Ren AM, et al. A ten-microRNA signature identified from a genome-wide microRNA expression profiling in human epithelial ovarian cancer. PLoS One 2014;9:e96472. [Crossref] [PubMed]
  41. Tang J, Zhuo H, Zhang X, et al. A novel biomarker Linc00974 interacting with KRT19 promotes proliferation and metastasis in hepatocellular carcinoma. Cell Death Dis 2014;5:e1549. [Crossref] [PubMed]
  42. Motieghader H, Kouhsar M, Najafi A, et al. mRNA-miRNA bipartite network reconstruction to predict prognostic module biomarkers in colorectal cancer stage differentiation. Mol Biosyst 2017;13:2168-80. [Crossref] [PubMed]
  43. Tao L, Zeng Y, Wang J, et al. Differential microRNA expression in aristolochic acid-induced upper urothelial tract cancers ex vivo. Mol Med Rep 2015;12:6533-46. [Crossref] [PubMed]
  44. Anandaram H. A computational approach to identify microRNA (miRNA) based biomarker from the regulation of disease pathology. Biol Med Case Rep 2018;2:12-25. [Crossref]
  45. Fujiwara T, Yada T. miRNA-target prediction based on transcriptional regulation. BMC Genomics 2013;14:S3. [Crossref] [PubMed]
  46. Liu B, Li J, Cairns MJ. Identifying miRNAs, targets and functions. Brief Bioinform 2014;15:1-19. [Crossref] [PubMed]
  47. Guo L, Zhao Y, Yang S, et al. Integrative analysis of miRNA-mRNA and miRNA-miRNA interactions. Biomed Res Int 2014;2014:907420. [Crossref] [PubMed]
  48. Bindea G, Galon J, Mlecnik B. CluePedia Cytoscape plugin: pathway insights using integrated experimental and in silico data. Bioinformatics 2013;29:661-3. [Crossref] [PubMed]
  49. Malami I, Abdul AB, Abdullah R, et al. In Silico Discovery of Potential Uridine-Cytidine Kinase 2 Inhibitors from the Rhizome of Alpinia mutica. Molecules 2016;21:417. [Crossref] [PubMed]
  50. Petillo D, Kort EJ, Anema J, et al. MicroRNA profiling of human kidney cancer subtypes. Int J Oncol 2009;35:109-14. [Crossref] [PubMed]
  51. Lu ZM, Lin YF, Jiang L, et al. Micro-ribonucleic acid expression profiling and bioinformatic target gene analyses in laryngeal carcinoma. Onco Targets Ther 2014;7:525-33. [Crossref] [PubMed]
  52. Chang KH, Miller N, Kheirelseid EA, et al. MicroRNA signature analysis in colorectal cancer: identification of expression profiles in stage II tumors associated with aggressive disease. Int J Colorectal Dis 2011;26:1415-22. [Crossref] [PubMed]
  53. Jin C, Yan B, Lu Q, et al. Reciprocal regulation of Hsa-miR-1 and long noncoding RNA MALAT1 promotes triple-negative breast cancer development. Tumour Biol 2016;37:7383-94. [Crossref] [PubMed]

(English Language Editor: C. Mullens)

Cite this article as: Cai S, Zhang Y, Zhang X, Wang L, Wu Z, Fang W, Chen X. A microarray expression profile and bioinformatic analysis of circular RNA in human esophageal carcinoma. J Gastrointest Oncol 2022;13(2):510-526. doi: 10.21037/jgo-22-137

Article Options

Download Citation

Share
