A novel model based on protein post-translational modifications comprising the immune landscape and prediction of colorectal cancer prognosis

Introduction

Colorectal cancer (CRC) is one of the most common cancers worldwide, and its incidence and mortality have been increasing among individuals younger than 50 years (1,2). Due to its metastasis propensity and gene heterogeneity, targeting CRC for effective prevention or therapeutic interventions remains challenging (3,4). This necessitates the development of prognostic and therapeutic indicators for CRC.

Recent technological advances in sequencing and bioinformatics analysis have led to the identification of various molecular markers as predictors for tumor diagnosis, prognosis, and treatment. Post-translational modification (PTM), such as phosphorylation, acetylation, ubiquitination, and glycosylation, can modulate the structure and function of proteins (5). Several studies have demonstrated an association between PTM and tumor development, progression, and therapeutic response, with phosphorylation being one of the most common PTM types, primarily phosphorylating serine, threonine, or tyrosine residues and participating in signaling pathways (6-10). Abnormal phosphorylation has been identified as closely correlated with tumorigenesis and the development of CRC, showing potential as valuable biomarkers for early diagnosis, chemoresistance, and individualized treatment (6-8).

Despite the potential of PTM as a prognostic marker, no prognostic models based on PTM have been reported in colon adenocarcinoma (COAD). Nomograms have been recognized as excellent predictive tools for survival prediction that combine biological variables with clinical factors simultaneously (11,12). In this study, we focused on the PTM differences in COAD and constructed a nomogram model to predict CRC patients’ 1-, 3-, and 5-year overall survival (OS), which could be beneficial for individual treatments and outcomes. We present this article in accordance with the TRIPOD and MDAR reporting checklists (available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-45/rc).

Methods

Acquisition and processing of data

The Cancer Genome Atlas (TCGA) (https://portal.gdc.cancer.gov/repository) was retrieved to acquire the transcriptomic, proteomic, and relevant clinicopathological data comprising 316 CRC patients. Then, we randomly partitioned patients into training (discovery cohort, n=120) and test (validation cohort, n=196) groups. The data underwent background adjustment and normalization utilizing a style of fragments per kilobase million (FPKM) (13). The detailed clinical data are available at https://cdn.amegroups.cn/static/public/10.21037jgo-24-45-1.xlsx. In addition, we acquired information on 89 PTM sites and protein expression by retrieving the TCGA-COAD dataset and searching PubMed. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Development of a risk model to analyze the risk score

Ten PTM sites closely associated with OS were selected through a univariate Cox regression analysis in the training set (P<0.10). Aided by the “glmnet” package in R software (version 4.1.3), a least absolute shrinkage and selection operator (LASSO) Cox regression analysis was performed (P<0.05). The risk computing formula is as follows: Riskscore=∑i=1nCoef(i)*Expr(i) (14). We applied a 10-fold cross validation with minimum criteria to obtain an optimal λ (15). The final value of λ yielded a minimum cross validation error. Consequently, 8 PTM sites, namely ACC_pS79, ARAF_pS299, Aurora.ABC_p288/p232/p198, CMET_pY1235, EGFR_pY1173, SRC_pY527, H2AX_pS139, and PI3K_p110_b were identified. Univariate and multivariate Cox regression models confirmed the independent predictive ability of the risk score. The resulting median cut-off value was used to stratify patients into high-risk and low-risk groups. To evaluate the accuracy of our risk score, we analyzed the training and test groups, and constructed a Kaplan-Meier (K-M) survival curve, and the log-rank test was used to assess the survival differences between groups. The predictive ability of the risk score was evaluated by the receiver operating characteristic (ROC) curve and the area under curve (AUC).

Construction and validation of the nomogram

To improve the predictive ability of COAD patients, we established a prognostic nomogram to assess the survival probability in 1, 3, and 5 years via the “rms” R package. As independent parameters, age, gender, clinic stage, pathological stage, and risk score were all considered. The calibration curve displays the probability of the 1-, 3-, and 5-year OS predicted by the nomogram. Through the use of the “ggDCA” package, a decision curve analysis (DCA) was implemented to determine the superiority of the nomogram.

Exploration of signaling pathways

We generated enrichment plots in the TCGA COAD cohort by employing “gene set enrichment analysis (GSEA)” software with the filtering criteria of a P value less than 0.05 (16). To identify the differentially expressed proteins (DEPs), the “limma” packages were used for the differential expression analysis [log₂ fold change (FC) >0.2, false discovery rate (FDR) <0.05] between the training and test sets (17). After that, we used the “org.Hs.eg.db” package in R to perform both Gene Ontology (GO) functional and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses on the screened 26 DEPs (https://metascape.org/) (18).

Analysis of immune landscape and tumor microenvironment (TME)

Given the close relationship between immune status and prognosis, we used the TIMER, QUANTISEQ, and CIBERSORT algorithms to seek insight into any potential associations between the risk score and immune cell infiltration (19). A Mann-Whitney U-test was used to compare the surface markers of relevant infiltrating immune cells between the high- and low-risk groups in order to determine the immune alteration. We also investigated into the relationships between PTM risk score and microsatellite state.

Assessment of the therapeutic sensitivity

To compare drug sensitivity in different risk score levels, we calculated tumor immune dysfunction and exclusion (TIDE, https://tide.dfci.harvard.edu/) of two risk groups. TIDE could evaluate immunotherapy effectiveness and immune evasion (20). In addition, utilizing the R packages “pRRophetic” (21), we computed the IC50 of several chemotherapy-related medications through the Wilcoxon signed-rank test.

Experiment in vitro

DLD-1 and HCT116 (human CRC cells) were cultured at 37 ℃, 5% CO₂ in complete medium (RPMI DMEM supplemented with 100 µg/mL streptomycin, 100 IU/mL penicillin, and 10% fetal bovine serum). Control plasmid, pCMV-CMETY1235E, and pCMV-CMETY1235F, purchased from Miaolinbio company (Wuhan, China), were transfected into the cells using lipofectamine 3000 transfection reagent (Invitrogen, USA) when the cell density reached 70–80%. CMETY1235E is an amino-acid substitution mutant that mimics the phosphorylated state of CMET, while CMETY1235F mimics the unphosphorylated form of CMET. The phosphorylation status of CMET in DLD1 and HCT116 was verified by western blotting results. Primary antibodies used in the western blotting assay were as follows: anti-β Tubulin (#M1305-2 HUABIO, Hangzhou, China), anti-CMET (#A0040), anti-pCMET (#AP1339) (ABclonal Technology, Wuhan, China). Cell viability assays were performed using the methyl thiazolyl tetrazolium (MTT) colorimetric assay (Topscience Biological Technology, Shanghai, China) at a wavelength of 490 nm by spectrophotometry. Colony formation experiments were conducted to assess cell proliferation. Approximately 500 cells per well were seeded into a 6-well culture plate and incubated for 2 weeks at 37 ℃. After 24 hours of transfection, cells were seeded into 8-µm pore inserts (Corning, France) for transwell migration assays. Cell counts were obtained by ImageJ software. Finally, apoptosis and cell cycle assays were performed by NovoCyte flow Cytometer (Agilent, USA) and analyzed by NovoExpress software.

Statistical analysis

With the support of Pearson analysis, correlation coefficients were calculated. The K-M method, Cox regression model, and log-rank tests were employed to analyze the prognostic significance. The level of statistical significance was set at a P value of 0.05 or P value of 0.10 for all statistical data analyses, which were all conducted in a two-sided manner. All statistical analyses were carried out throughout the procedure using R software (version 4.1.3). Each experiment was a composite of three independent studies.

Results

Construction of a PTM prognostic signatures in TCGA COAD cohort

The flow diagram is provided in Figure 1. This study included 316 CRC patients. Demographic and clinical information of the patients are described in available at https://cdn.amegroups.cn/static/public/10.21037jgo-24-45-1.xlsx. We randomly selected 120 samples as the training cohort from TCGA-COAD in R, while the other samples were defined as the validation group. Baseline data were not statistically different between the two groups (Table S1). Proteomic results of the patients are listed in available at https://cdn.amegroups.cn/static/public/10.21037jgo-24-45-2.xlsx, including 89 PTM sites, which were all phosphorylation sites. Incorporation of 89 PTM sites into a univariate Cox regression analysis, 10 PTM were discovered to be significantly linked to OS (P<0.10) (Figure 2A). Then, LASSO regression was conducted to obtain an optimal λ (Figure 2B), selecting 8 PTM sites to generate the risk score model (Figure 2C). Each patient was assigned a separate risk score according to the formula. The functions of the prognostic PTM signatures were involved in fatty acid metabolism, DNA replication, chromosomal stability, and other vital cell biological processes (Table S2). Patients were classified into low- and high-risk score groups according to the calculated median value of the PTM score. The phosphorylation level profiles of the prognostic risk protein between the high-risk group and low-risk group were compared using a heatmap (Figure 2D). Meanwhile, we discovered that PI3K_p110_b was at a high phosphorylation level in the high-risk score group, whereas the opposite is true for ACC_pS79, ARAF_pS299, Aurora.ABC_p288/p232/p198, CMET_pY1235, EGFR_pY1173, SRC_pY527, and H2AX_pS139.

Figure 1 Work flowchart of the study. TCGA, The Cancer Genome Atlas; CRC, colorectal cancer; COAD, colon adenocarcinoma; LASSO, least absolute shrinkage and selection operator; DCA, decision curve analysis; ROC, receiver operating characteristic; CMET, hepatocyte growth factor receptor.

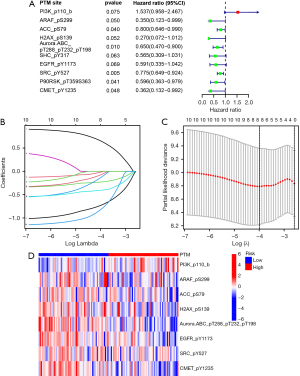

Figure 2 Identification of prognostic PTM signatures and construction of LASSO Cox model. (A) Forest plots of the univariate Cox regression analyses in the TCGA COAD training cohort. (B) LASSO coefficient profiles of the 8 survival-related PTM signatures. (C) A coefficient profile plot was produced against the log (lambda) sequence in the LASSO model. (D) Heatmap of the protein-expression profiles of the PTM signatures in TCGA training cohort. TCGA, The Cancer Genome Atlas; COAD, colon adenocarcinoma; LASSO, least absolute shrinkage and selection operator; PTM, post-translational modification; CI, confidence interval.

Verification of the PTM signatures and assessment of survival prediction

Univariate and multivariate Cox regression analyses were performed to evaluate the prognostic implication of the PTM score. In both training and test cohorts, univariate Cox regression analysis revealed that the PTM score, clinicopathologic stage, and age were significantly associated with OS (Figure 3A,3B). Multivariate Cox regression analysis proved the PTM score to be an independent prognostic variable (Figure 3C,3D). Additionally, in the test cohort, K-M analysis indicated that high phosphorylation levels of ACC_pS79 (P=0.01), ARAF_pS299 (P=0.03), SRC_pY527 (P=0.001), CMET_pY1235 (P=0.007) and H2AX_pS139 (P=0.03) were significantly related to high survival rates (Figure 3E-3I). On the contrary, the lower phosphorylation levels of EGFR_pY1173 (P=0.049) was associated with a higher chance of survival (Figure 3J). Furthermore, independent phosphorylation levels of Aurora.ABC_p288/p232/p198 (P=0.10) and PI3K_p110_b (P=0.11) were not associated with survival rates (Figure 3K,3L).

Figure 3 Validation of the PTM signatures and assessment of survival prediction. (A,B) Forest plots of the univariate Cox regression analyses in the training (A) and the test (B) cohorts of OS-related factors. (C,D) Forest plots of the multivariate Cox regression analyses in the training (C) and the test (D) cohorts of OS-related factors. (E-L) K-M survival curve analysis of ACC_pS79 (E), ARAF_pS299 (F), SRC_pY527 (G), CMET_pY1235 (H), H2AX_pS139 (I), EGFR_pY1173 (J), Aurora.ABC_p288/p232/p198 (K), PI3K_p110_b (L) in the validation set. OS, overall survival; K-M, Kaplan-Meier; PTM, post-translational modification; CI, confidence interval.

Validation of the PTM signatures and assessment of survival prediction

The K-M curves of the training, test, and whole groups revealed that higher risk score denoted worse prognosis, validating the applicability and reliability of the PTM score (Figure 4A-4C). Meanwhile, the risk lines and scatterplots displayed the risk score distribution together with the correlation between risk score and survival among all patients (Figure 4D-4F). The risk score was proportional to the mortality and the proportion of patients who were at high risk. Besides, we performed ROC to estimate the accuracy of the PTM predictive model in each subset. The AUC of the risk score for the survival probability at 1, 3, and 5 years respectively, were 0.602, 0.700, 0.752 in the training set, 0.635, 0.631, 0.706 in the test set, and 0.611, 0.574, 0.627 in the whole set (Figure 4G-4I). These findings verified that our PTM signatures was an optimal prognostic indicator.

Figure 4 Assessment and confirmation of the predictive significance of the PTM signatures in the COAD TCGA cohort. (A-C) The K-M plots show the OS rates in relation to the risk scores for the training (A), test (B), and whole (C) groups. (D-F) The risk score distribution and survival status in the training (D), test (E), and whole (F) groups. (G-I) ROC calculation of survival rates in the training (G), test (H), and whole (I) groups. TCGA, The Cancer Genome Atlas; COAD, colon adenocarcinoma; OS, overall survival; K-M, Kaplan-Meier; PTM, post-translational modification; ROC, receiver operating characteristic; AUC, area under the curve.

Construction of the nomogram and its link to clinical characteristics

Based on the clinicopathological characteristics, there were significant differences of PTM score in gender (P=0.02) and survival state (P=0.002) (Figure 5A,5B). After that, we generated a nomogram combining age, gender, clinical stage, T stage, M stage, N stage, and PTM signatures for improving the accuracy of the prognostic prediction model (Figure 5C). Each point of the factors represents their corresponding contributions to the probability of survival. In addition, the calibration curve suggested the consistence of our nomogram (Figure 5D). We also conducted DCA, showing that our nomogram was the most optimal predictor (Figure 5E).

Figure 5 Construction and verification of nomogram incorporating clinical and pathological variables and the PTM signatures. (A,B) Wilcoxon rank-sum test showed COAD risk scores were associated with gender (A) and survival status (B). (C) The nomogram for prognostic prediction in COAD. (D,E) The calibration curve (D) and DCA (E) were used to verify the model’s predictive performance. *, P<0.05; **, P<0.01; and ***, P<0.001. COAD, colon adenocarcinoma; DCA, decision curve analysis; PTM, post-translational modification; OS, overall survival.

Exploration of function and signaling pathways of PTM signatures

In tumor development, various regulatory factors changed. First, we chose the “limma” package to analyze the DEPs related to PTM score between training and test groups. Based on FDR <0.05 and |log₂FC| >0.2, there were 19 up-regulated DEPs and 33 down-regulated DEPs in the training group, and 39 up-regulated DEPs and 43 down-regulated DEPs in the test group (Table S3). The intersection of DEPs is visualized in a Venn diagram (Figure 6A,6B). Enrichment analysis of 26 overlapped DEPs revealed a striking enrichment in the cell cycle process, TP53 transcriptional regulation, and apoptotic signaling pathway (Figure 6C,6D). According to the different levels of related cell cycle protein and histone H3 phosphorylation, high-risk score group had a higher level of cyclin D1, cyclin B1, cyclin E1, and phosphorylated H3 (Figure 6E,6F). GSEA results showed that the high-risk score group had a higher level of KRAS pathway (NES =1.35, P=0.01) and transcriptional activity of the E2Fs family (NES=1.70, P=0.04; NES =1.64, P=0.04; NES =1.69, P=0.01), which could promote the development and progression of tumors. Several miRNAs repressing metabolic reprogramming were inactive in the low-risk score group (NES =1.63, P=0.04; NES=1.66, P=0.04) (Figure 7A-7F). Meantime, gene set variation analysis (GSVA) displayed that the PTM score was statistically correlated with the mitotic spindle and G2/M check point (Figure 7G). These results suggested that PTM signatures may play an essential role in regulating cancer-related processes.

Figure 6 Identification of DEPs between training and validation cohorts. (A,B) Venn diagram of the down-regulated (A) and up-regulated (B) DEPs in the training and validation cohorts. (C) Enrichment network visualization of enrichment clusters based on DEPs. (D) Bar graph of top enrichment clusters based on DEPs. (E) Box plot of cell cycle associated proteins in different risk groups. (F) Box plot of phosphorylated H3 expression in different risk groups. *, P<0.05; **, P<0.01; ***, P<0.001. DEPs, differentially expressed proteins.

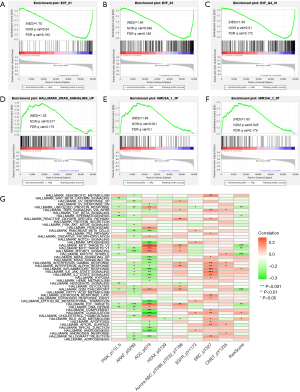

Figure 7 Association of PTM signatures with biological functions. (A-F) GSEA plots of hallmark pathways enriched in the low- and high-risk groups of the PTM signatures in COAD. (G) GSVA plots of hallmark pathways enriched in the low- and high-risk groups of the PTM signatures in COAD. COAD, colon adenocarcinoma; GSEA, gene set enrichment analysis; GSVA, gene set variation analysis; PTM, post-translational modification.

Correlation analysis between the risk model score and immune landscape

The dynamically changing immune microenvironment plays a vital role of tumor development. In order to figure out the correlation between calculated PTM risk score and immune microenvironments, TIMER, QUANTISEQ, and CIBERSORT algorithms were used to analyze immune cell infiltration. Correlation analysis showed that the activation of M2 macrophages was positively correlated with the risk model score (Figure 8A). These results were also verified in the Radar image (Figure 8B). However, no significant correlations were observed in relation to macrophage surface markers in varied risk groups (Figure 8C). Gratifyingly, CCR2, MARCO, CD40, CCL2, CSF1, and FCGR3A, tumor-associated macrophage (TAM) surface markers, presented a significantly positive correlation with the risk model score, indicating that screened PTM signatures promote tumor recruit macrophages (Figure 8D). Immune checkpoint blockade (ICB) has emerged as a promising approach to cancer treatment. To explore the association between immune checkpoints (ICs) and risk score, we compared the expression levels of ICs genes and found that the risk score was closely related to several ICs such as CD27, CD28, CD48, CD200 (Figure 9A). Moreover, even though there was no significance of immune therapy between risk score groups in The Cancer Immune Atlas (TCIA) (Figure 9B). According to the calculated TIDE scores, high-risk group patients possessed stronger immune escape capacity (P=0.001) (Figure 9C). Changes in microsatellite instability (MSI) could have an evident impact on the effectiveness of immunotherapy. As a result of our investigation, we found that microsatellite stability (MSS) was more likely to occur in the low-risk group, and the proportion of MSI-H was significantly higher in the high-risk group than in the low-risk group (24% vs. 18%) (Figure 9D). Hence, PTM risk score may allow the assessment of the tumor immune microenvironment and further ascertain whether immunotherapy can be generally applied in COAD patients.

Figure 8 Correlation of PTM risk score with immune microenvironment in COAD patients. (A,B) Lollipop (A) and Radar (B) charts of immune infiltrating difference between high- and low-risk scores. (C,D) Box plots of macrophages M2 markers (C) and TAMs markers (D) between high- and low-risk scores. *, P<0.05; **, P<0.01; ***, P<0.001. COAD, colon adenocarcinoma; TAMs, tumor-associated macrophages; PTM, post-translational modification.

Figure 9 Association of PTM risk score with ICs, TIDE, MSI, and drug sensitivity in COAD patients. (A) The correlation analysis of immune checkpoints and PTM signatures or PTM score. (B,C) IPS (B) and TIDE (C) calculation between the high and low-risk groups. (D) Relationship between the PTM risk score and the MSI. (E-H) The IC50 of 4 routinely used chemotherapy-related drugs (doxorubicin, methotrexate, NVP-BEZ235, PF-4708671). PTM, post-translational modification; COAD, colon adenocarcinoma; IPS, immunophenoscore; TIDE, tumor immune dysfunction and exclusion; MSI, microsatellite instability; IC50, half maximal inhibitory concentration.

Sensitivity analysis of chemotherapy drugs and inhibitors

Next, predictive effect was observed with PTM risk score on the response to treatment through pRRophetic algorithm. Specifically, the low risk score indicated the decreased half-inhibitory concentration (IC50) of doxorubicin (P=9.6e−04) and methotrexate (P=4e−05) but elevated IC50 of NVP-BEZ235 (P=1.4e−05) and PF-4708671 (P=1.3e−05) (Figure 9E-9H). NVP-BEZ235, a selective and potent dual PI3K-mTOR inhibitor, could suppress the growth of carcinoma and has a synergistic effect with cisplatin. Consequently, this risk-adjusted model could be a feasible predictor of patient sensitivity to chemotherapy drugs and inhibitors.

Alteration of CMET phosphorylated state affected the proliferation and migration of CRC cells in vitro

Cell experiments were performed to validate the function of the selected PTM sites. The CMET_pY1235 site was chosen for verification. We constructed plasmid DNA of CMETY1235E-HA, CMETY1235F-HA, and empty-plasmid transfected into CRC cells (HCT116 and DLD1), and CMET tyrosine residue Y1235 was replaced with either glutamic acid to mimic the phosphorylated state or phenylalanine to mimic the unphosphorylated state. Expression and phosphorylation status of HCT116 (P=0.01) and DLD1 (P=0.006) indicated proteins were monitored by western blotting (Figure 10A). Then, MTT (P=0.001 in HCT116, P=0.007 in DLD1) and colony formation assays (P=0.0007 in HCT116, P=0.0008 in DLD1) illustrated that phosphorylated CMET significantly inhibited the proliferation of CRC cells (Figure 10B,10C). Subsequently, the transwell experiment (P=0.002 in HCT116, P=0.001 in DLD1) and wound-healing assay (P=0.004 in HCT116, P=0.01 in DLD1) demonstrated that the migration of phosphorylated CMET cells was significantly inhibited compared with the control group (Figure 10D,10E). After that, identification of phosphorylated CMET function in cell cycle was conducted by a flow cytometry analysis and we found a cell-cycle arrest at the G0/G1 phase in CMETY1235E group (P=0.0031 in HCT116, P=0.0021 in DLD1) (Figure 11A). Apoptosis flow cytometry depicted that phosphorylated CMET was not involved in the apoptosis regulation process (Figure 11B). In summary, the 1235 site phosphorylation of CMET involved in our PTM prediction model could suppress proliferation, migration and induce cell-cycle arrest of CRC cells.

Figure 10 Phosphorylated CMET suppresses the viability of CRC cells. (A) Immunoblot assessment of p-met protein levels. Plasmid DNA of CMETY1235E-HA, CMETY1235F-HA, or empty-plasmid respectively transfected into CRC cells. The samples were derived from the same experiment and blots were processed in parallel. (B-E) Growth curve (B); colony formation (C), scale bars: 2 mm; transwell experiments (D), scale bars: 100 µm; wound-healing assay (E), scale bars: 20 µm of CRC cells in the Control, CMETY1235E, CMETY1235F groups. Results are presented as mean ± SD for three independent experiments. *, P<0.05; **, P<0.01; and ***, P<0.001, compared with control. Observation methods: CRC cells were screened with 2 µg/mL purinomycin after transfected with plasmid 24 h. When their growth reached 80% confluence, we first collected cells and extracted the total cell protein using RIPA Lysis Buffer (#P0013B, Beyotime Biotechnology, Shanghai, China) to observe the phosphorylated state of the protein. Secondly, CRC cells were seeded into 96-well plates, 6-well plates, and 8-µm pore inserts for the optimal time, then we monitored their growth by methyl thiazolyl tetrazolium (Topscience Biological Technology, Shanghai, China). The cells were impregnated with 0.1% crystal violet staining solution (#G1062, solarbio, Beijing, China) to observe colony formation and migration. Meantime, CRC cells were seeded into the 2-well ibidi culture, inserted 48 h for wound healing analysis. CRC, colorectal cancer; SD, standard deviation.

Figure 11 Flow cytometry analysis of apoptosis and cell cycle distribution of CRC cells. (A) The cell cycle distribution was measured by flow cytometry in the Control, CMETY1235E, CMETY1235F groups of CRC cells, and the number of cells in each cycle was counted by PI for nuclear staining. (B) Apoptosis was assessed by the Annexin V-FITC/PI double staining analysis in the control, CMETY1235E, and CMETY1235F groups of CRC cells. Results are presented as mean ± SD for three independent experiments. **, P<0.01, compared with control. CRC, colorectal cancer; SD, standard deviation.

Discussion

By 2040, it is expected that there will be 3 million new cases of CRC and 1.6 million CRC related deaths, making it the leading cause of cancer-related mortality globally (1). There has been an alarming trend towards younger age-of-onset (<50 years old), despite the fact that the incidence and mortality rates have decreased overall (22,23). Therefore, more research into the growth and progression of CRC is necessary. Our understanding of the biology of cancer has improved owing to proteomics techniques, which have also revealed a number of biomarkers with predictive potential for early diagnosis, accurate prognosis, and therapy guidance (5). Increasing evidence points to PTM’s potential to modify particular amino acids to affect proteins’ conformation, activity, interaction, stability, and spatial distribution as a regulatory mechanism for the majority of eukaryotic proteins (24). Through the alteration of protein function, PTM is involved in a variety of intricate and dynamic cellular processes. The association between abnormal PTM events and CRC is being supported by more and more evidence, even though the precise molecular mechanisms and therapeutic targets of PTM in CRC are still unknown (24,25). PTMs come in more than 600 different varieties, including acetylation, glycosylation, ubiquitination, methylation, and citrullination (10). The frequently occurring PTM of phosphorylation, which typically occurs on serine, threonine, or tyrosine residues, acts as a molecular switch for a variety of protein functions and is crucial for signaling pathways (9). The cell cycle, the kinase family of proteins, apoptosis-related proteins, growth factor receptors, and other key biological processes are all closely correlated with abnormal phosphorylation in CRC (6-8). The study proposed that phosphoproteins might be predictive of CRC given these associations. Models for predicting clinical risks can help evaluate clinical decision-making (26,27). It is reasonable and urgent to build a PTM prognostic model in CRC considering the critical roles of PTM in normal physiology and the progression of cancer, as well as the lack of pertinent models.

In this study, we utilized 8 PTM sites to screen prognostic signatures, and constructed a new nomogram that took both the PTM signatures and clinical factors into account. In order to establish a strong correlation between the PTM risk score and the prognosis of CRC, as well as stable predictive performance in the validation dataset, we employed LASSO, univariate Cox regression analysis, and multivariate Cox regression analysis. We investigated various TME performances, evaluated the response of CRC patients to immunotherapy, and assessed the performance of our scoring system. While various machine learning techniques have been applied in previous studies, we selected the LASSO method due to its universality and wide usage across disciplines (28). Robert Tibshirani first introduced the LASSO method in 1996, and it has remained prevalent ever since (28). It is typical for many features with small coefficients that may not be significant to be gathered in high-dimensional datasets. The LASSO method reduces the dimensionality of the data while also achieving more accurate parameter estimation, whereas other algorithms, like ridge regression, may include these unimportant variables (28,29). Our study effectively identified PTM signatures and used a variety of ROC, AUC, DCA, and calibration curves to stratify patient outcomes in the COAD cohort. These analyses in both the training and validation cohorts showed how well our model predicted the outcomes for COAD patients.

Eight phosphorylation sites (ACC_pS79, ARAF_pS299, Aurora.ABC_p288/p232/p198, CMET_pY1235, EGFR_pY1173, SRC_pY527, H2AX_pS139, and PI3K_p110_b) that were most likely to have an impact on the outcomes of TCGA COAD patients were eliminated from further analysis. The biotin-containing enzyme acetyl-CoA carboxylase (ACC) is essential for the production of fatty acids (30). Apoptosis is triggered by the phosphorylation of ACC at Ser79, Ser1200, and Ser1215, which is primarily carried out by AMP-activated kinase (AMPK) (31). In agreement with our discovery that ACC phosphorylation is advantageous for cancer patients, Lally et al. showed that reduced ACC phosphorylation accelerates the development of human liver cancer cells and hepatocellular carcinoma in mice (32). Proto-oncogene A-raf serine/threonine kinase (ARAF) is thought to play a role in cell development and growth. In human breast tumors, Huang et al. discovered an aberrant ARAF pS299 phosphosite, which may serve as “proteomic drivers” of tumorigenesis and potential drug targets (33). CMET, as an oncogenic receptor tyrosine kinase (RTK) needs to be phosphorylated on Tyr1234/5 in order for the kinase to become active. A growing body of research suggests that CMET plays a role in the cellular control, development, and migration of various tumors (34). A crucial part of transcriptional control, DNA repair, DNA replication, and chromosomal stability is played by the DNA damage marker H2AX. According to Akcora-Yildiz et al., elevated H2AX phosphorylation is a sign of greater DNA damage and improved effectiveness (35). A significant portion of human cancers exhibit dysregulation of the RTK known as the epidermal growth factor receptor (EGFR). Numerous pieces of evidence, including various phosphorylated forms, demonstrated that aberrant EGFR activation is a known factor in the development and progression of cancer (36). A better prognosis is indicated by EGFR phosphorylation in our prediction model. Similar to this, Endoh et al. gathered 97 NSCLC patients with tumors that were positive for phospho-EGFR and showed prolonged survival (37). Numerous findings suggest that SRC plays a dual role in activating pro- and antiapoptotic pathways (38). The SRC protein is a tyrosine-protein kinase whose activity can be suppressed by c-SRC kinase phosphorylation. Additionally, Nishida et al. demonstrated that SRC drives cell proliferation and death in a coercively coupled manner via parallel MAPK pathways (39). The serine/threonine kinases Aurora-A, Aurora-B, and Aurora-C are members of the aurora kinase subfamily and are essential regulators of mitosis (40). PI3K_p110_b namely PIK3CB or PI3KB, this gene encodes an isoform of the catalytic subunit of phosphoinositide 3-kinase (PI3K). These kinases are important in signaling pathways involving receptors on the outer membrane of eukaryotic cells and are named for their catalytic subunit (41). Alterations in the PI3K pathway are the most common causes of tumor deterioration, disease progression, and development of treatment resistance (42). Dbouk et al. found PTEN-deficient tumors were found to be reliant on p110_b activity to sustain transformation (43). In several in vitro studies, PI3K_p110_b was shown to play a role in DNA synthesis or cell proliferation, and also promote oncogenic transformation (44,45). All these studies showed that PIK3CB is a pro-cancer gene that harms patient health, consistent with our analysis. The bioinformatics analysis results showed that CMET_pY1235 had the highest risk coefficient and contributed the most to the construction of the prediction model. Thus, we finally chose the CMET_pY1235 site for the wet experiment verification.

A novel model based on gene pairs related to ubiquitin was developed by Liang et al. in a prior study to forecast prognosis and treatment outcomes in CRC, and it demonstrated excellent predictive value (46). In the current study, we sought to assess the correlation between phosphorylation-related protein and COAD patient prognosis. We created a new nomogram that combined the clinical parameters and phosphorylated signatures. As the best tool for predicting outcomes in oncology, a nomogram incorporates potential risk factors and determines the contribution of each risk factor, offering individualized and visual prognostic capabilities for clinical outcomes (47,48). We used ROC curves and calibration curves, following Liang et al., to show that our nomogram had high prognostic accuracy (46). Additionally, DCA was used in the current study to further and thoroughly validate the model, which could determine whether the model is worthwhile to use and has clinical value (49). Overall, our study provided a thorough assessment of the prognostic significance of COAD phosphorylation-related proteins.

In addition, we divided the patients into high- and low-risk groups based on the median PTM score values. Enrichment analyses were carried out to clarify the survival differences between various groups. The KRAS signaling pathway was enriched in the high-risk group, according to GSEA. The high-risk group mainly enriched in cancer-related pathways, such as the cell cycle, TP53 signaling pathway, and higher transcriptional activity of the E2Fs family, in line with prior research (46,50), We also investigated differences in the immune microenvironment between high- and low-risk groups. In contrast to Liang et al.’s research (46), we employed multiple algorithms concurrently so as to ensure the accuracy of the analysis. The immune landscape showed notable differences between the high- and low-risk groups, including IC expression, immune cell activity, varying TIDE scores, and the high-risk group appearing to have an elevated immune escape capacity.

We randomly selected one signature from the model, CMET, and performed cell experiments on it in order to further improve the reliability of our nomogram. The cell viability of CRC cells was reduced and the cell cycle was arrested at the G0/G1 phase as a result of the phosphorylation of CMET at its 1235 site. Multiple cancer entities’ drug resistance, tumor metastasis, and cell proliferation have all been shown to be significantly associated with aberrant activation of CMET signaling (51). Matte et al. discovered, in contrast to our findings, that CMET phosphorylation was connected to Akt and EKR1/2 phosphorylation for promoting ascites-induced ovarian cancer migration (52). The experimental settings or the cancer cell model may be responsible for these variations.

Despite the clinical implications of our results, there are a few restrictions that must be taken into consideration as well. First and foremost, we only constructed training and validation cohorts in the TCGA-COAD database without an external database for the reason of the incompleteness and small scale of phosphorylation protein data in the open public database, which may introduce some biases in the analyzed profile. It is essential to evaluate it regarding other models. Second, the prognostic model developed throughout this study can only be further validated with independent prospective cohorts as our analysis was a retrospective analysis of publicly available datasets. Further research is also indispensable into the purpose and mechanism of those phosphorylation sites.

Conclusions

Based on the TCGA database, we looked into the prognostic value of PTM in COAD patients in this study. We developed a new nomogram that combined phosphorylated signatures and clinical parameters to predict individualized prognosis after opting for the 8 phosphorylation sites that had the strongest impact on patient outcomes. When high- and low-risk groups were divided based on PTM scores, enrichment analyses revealed differences in immune microenvironments and cancer-related pathways. Additionally, using one signature, CMET, we performed cell experiments to show the validity of our nomogram. Our research demonstrates the potential of proteins involved in phosphorylation as trustworthy prognostic markers and potential COAD therapeutic targets. As a retrospective analysis, there are some drawbacks in the present study such as lacking protein data, further analysis of the underlying molecular mechanisms of PTM in COAD is hence required in the future.

Acknowledgments

Funding: This study was supported by the National Natural Science Foundation of China (No. 82073271), Key Science and Technology Program of Shaanxi Province (No. 2023KJXX-031), and Institutional Foundation of The First Affiliated Hospital of Xi’an Jiaotong University (Nos. YXJLRH2022044 and 2022YQPY07).

Footnote

Reporting Checklist: The authors have completed the TRIPOD and MDAR reporting checklists. Available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-45/rc

Peer Review File: Available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-45/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-45/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
