Relationship between apparent diffusion coefficient values and clinicopathologic features in rectal cancer: a cross-sectional study
Highlight box
Key findings
• The apparent diffusion coefficient (ADC) values were negatively associated with different clinicopathological features of rectal cancer.
What is known and what is new?
• The majority of prior research has examined individual pathological factors instead of conducting a comprehensive analysis of ADC’s relationship with multiple clinicopathological characteristics.
• Our study reveals that mean, minimum, and maximum ADC values were negatively correlated with rectal cancer extramural vascular invasion, circumferential resection margin, pathological T stage, histological grading, lymphovascular invasion, perineural invasion, and lymph node metastasis.
What is the implication, and what should change now?
• ADC values can be used for preoperative noninvasive assessment of clinicopathological features of rectal cancer to better guide clinical risk stratification and personalized treatment.
• ADC values should be used as an important indicator of the clinicopathology of rectal cancer during preoperative evaluation.
Introduction
Colorectal cancer is the third most prevalent cancer worldwide and the second leading cause of cancer-related deaths, accounting for nearly 900,000 deaths annually (1,2). Globally, the number of new cases of colorectal cancer was more than doubled from 1990 to 2019 (3). Rectal cancer accounts for approximately 1/3 of colorectal cancers, and its incidence increases every year (4).
Recent studies have identified a correlation between the prognosis of rectal cancer and the clinicopathological features of the tumor (5). For example, extramural vascular invasion (EMVI) in rectal cancer is associated with a poor prognosis and low overall survival (6,7). The circumferential resection margin (CRM) has been shown to be an independent prognostic factor in patients with cT3 stage low rectal cancer (8). Additionally, high clinical stage, low degree of differentiation, lymphovascular invasion, perineural invasion, and lymph node metastasis not only indicate the presence of more aggressive tumors but are also closely correlated with patient prognosis (9-11). Given their prognostic significance, accurate preoperative assessment of these clinicopathological features is crucial for optimizing treatment strategies and predicting patient outcomes.
Magnetic resonance imaging (MRI) is an important clinical examination tool for the diagnosis and staging of rectal cancer (12,13). MRI can help in clinical risk stratification by identifying high-risk characteristics of rectal cancer, such as EMVI and CRM (13,14). Diffusion-weighted imaging (DWI), a non-contrast MRI technique, quantifies the diffusion of water molecules in biological tissues, providing functional tumor information (15,16). The apparent diffusion coefficient (ADC), derived from DWI, has been investigated as a potential imaging biomarker for assessing tumor aggressiveness and predicting histopathological features (15-17).
Several studies have explored the correlation between ADC values and clinicopathological characteristics of rectal cancer (18-20). Lower ADC values have been associated with poor differentiation, advanced T stage, and lymph node metastasis, suggesting that ADC could serve as a marker of tumor aggressiveness (18-20). However, most previous studies have focused on individual pathological factors rather than providing a comprehensive analysis of ADC’s association with multiple clinicopathological features (18-20). Therefore, the correlation between ADC values and the multiple clinicopathological characteristics of patients with rectal cancer is still being explored.
In this study, we measured the mean (ADCmean), minimum (ADCmin), and maximum (ADCmax) ADC values in patients with rectal cancer to investigate their relationship with different clinicopathological features of rectal cancer. Moreover, we evaluated the diagnostic value of ADC values in determining the different biological behaviors of rectal cancers. By identifying significant correlations, we aim to evaluate the potential of ADC values as noninvasive quantitative imaging markers for preoperative tumor assessment, which could contribute to more precise treatment planning and prognostic evaluation in rectal cancer. We present this article in accordance with the STARD reporting checklist (available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-831/rc).
Methods
Study design and patient selection

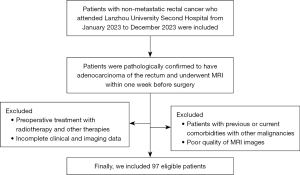

This was a cross-sectional, single-center retrospective study. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. This retrospective study was approved by the Medical Ethics Review Board of Lanzhou University Second Hospital (No. 2024A-927), and the need for informed consent was waived owing to the retrospective nature of the study. Data on patients with non-metastatic rectal cancer who attended Lanzhou University Second Hospital from January 2023 to December 2023 were obtained from hospital’s information management system. All patients were pathologically confirmed to have adenocarcinoma of the rectum and underwent MRI within one week before surgery. The exclusion criteria were as follows: (I) preoperative treatment with radiotherapy and other therapies; (II) previous or current comorbidities with other malignancies; (III) incomplete clinical and imaging data; and (IV) poor quality MRI images. Finally, we included 97 eligible patients (Figure 1).
Sample size estimation
The required sample size was estimated based on previous studies investigating the correlation between ADC values and clinicopathological features in rectal cancer (18-20). Assuming an expected effect size of r=0.3 (moderate correlation), a significance level of α=0.05, and a power of 80% (1−β=0.8), the minimum required sample size was calculated as 84 patients using G*Power software (version 3.1.9.7). Our final sample size of 97 patients meets this requirement.
Clinical information and laboratory data collection
Preoperative clinical baseline information was obtained including patients’ sex, age, smoking, alcohol consumption, body mass index (BMI), and serum tumor marker levels. Serum carcinoembryonic antigen (CEA), carbohydrate antigen 125 (CA125), and carbohydrate antigen 199 (CA199) levels were measured using a chemiluminescent immunoassay (Roche Cobas e601 analyzer, Roche Diagnostics, Mannheim, Germany). Levels were considered to be abnormally high when CEA >3.4 ng/mL, CA125 >35 U/mL, and CA199 >27 U/mL.
Clinicopathological feature assessment
Baseline postoperative pathological evaluations were performed independently by two experienced pathologists who were blinded to the imaging results. If the two disagreed, the decision was made by consultation. The following parameters were assessed:
- Histologic grade: tumors were classified as well-differentiated, moderately differentiated, or poorly differentiated according to the World Health Organization (WHO) classification;
- Pathologic T-stage: determined based on the American Joint Committee on Cancer (AJCC) 8th edition tumor node metastasis (TNM) staging system;
- Lymphovascular invasion: defined as the presence of tumor cells within endothelial-lined lymphatic or vascular spaces;
- Perineural invasion: defined as tumor cell infiltration within or surrounding nerve structures;
- Lymph node metastasis: presence of metastatic tumor cells in regional lymph nodes.
MRI image acquisition
All MRI scans were performed using a Philips 3.0 T superconducting MRI system with a 32-channel linear array surface coil. The main sequences and parameters were as follows: repetition time =3,000 ms, echo time =80 ms, layer thickness =3 mm, matrix =260×260, field of view =260 mm × 260 mm, voxel =1 mm × 1 mm, excitation number =1, and flip angle =90°. Sagittal images of the tumor lesion were obtained to locate the lesion in the rectum, and then axial and coronal T2 weighted image (T2WI) scans and oblique axial and coronal DWI scans were performed. For DWI scanning, a single excitation spin-plane echo sequence was selected, and the b value was chosen to be 0, 1,000 s/mm2.
MRI image analysis
The MRI images were automatically uploaded to a picture archiving and communication system after scanning was completed, and independent reviews and measurements were performed on this system by two radiologists each with 10 years of experience in diagnostic abdominal imaging. Two radiologists without knowledge of the pathological diagnosis evaluated the maximum diameter, tumor location, EMVI, and CRM. In cases of disagreement between the two reviewers, the final result was determined after deliberation. The distance from the anal verge to the fold of the lower edge of the tumor was measured on the T2 sagittal image. If the distance was <5 cm, it was considered low rectal cancer, 5–10 cm was considered intermediate cancer, and >10 cm was high cancer (18). EMVI was diagnosed as a moderate signal within vessels, a slight dilatation of vessel contours and diameters, a marked irregular nodular dilatation of vessel contours, and an internally defined tumor signal (19). Tumors were considered to have CRM invasion if they were present within 1 mm of the rectal mesenteric fascia (20).
ADC image evaluation
The ADCmean, ADCmin, and ADCmax values were calculated by two radiologists. Specifically, a circular region of interest was plotted on the axial ADC image using T2WI and DWI as references. The region of interest was positioned at the highest level of the tumor and was sized to contain as many solid portions of the lesion as possible and avoid blood vessels, necrosis/cysts, and calcifications (Figure 2). Subsequently, the average of the measurements obtained by the two radiologists was recorded as the final value.

Statistical analysis
All data analyses were conducted using SPSS 26.0 (IBM Corp., Armonk, NY, USA) and Origin 2020 (Northampton, MA, USA). Categorical variables were presented as frequencies (percentages) and were compared using Fisher’s exact test or Chi-squared test. Continuous variables were expressed as mean ± standard deviation or median (interquartile range) and were compared using the Wilcoxon-Mann-Whitney U test or independent t-test. The agreement of the measurements between the two radiologists was assessed using the interclass correlation coefficient. Correlations between ADC values and clinicopathologic features of rectal cancer were assessed using Pearson or Spearman correlation analysis. The receiver operating characteristic curve analysis was used to assess the diagnostic ability of ADC values for the clinicopathologic features of rectal cancer. The area under the curve (AUC) value, sensitivity, specificity and Youden index were calculated. The AUC was classified as follows: 0.5–<0.7 (low), ≥0.7–<0.8 (moderate), ≥0.8–<0.9 (good), and ≥0.9 (excellent) diagnostic accuracy. P<0.05 (bilateral) was regarded as statistically significant.
Results
Clinicopathologic characteristics of all patients
Among 97 patients with rectal cancer, the mean age was 61.40±10.46 years and 60 (61.9%) were males. The clinicopathologic features of the patients are shown in Table 1. EMVI was present in 71 (73.2%) of the tumors, and CRM was present in 53 (54.6%) of the tumors. Regarding pathological T-stage, 39 (40.2%) of the tumors were T1–2 and 58 (59.8%) were T3–4. Regarding histological grading, 65 (67.0%) of the tumors were highly/moderately differentiated and 32 (33.0%) were lowly differentiated. In addition, 60 (61.9%) tumors had lymphovascular invasion, 61 (62.9%) had perineural invasion, and 33 (34.0%) had lymph node metastasis.
Table 1
Parameters | Values (n=97) |
---|---|
Age (years) | 61.40±10.46 |
Sex | |
Male | 60 (61.9) |
Female | 37 (38.1) |
BMI (kg/m2) | 22.58±3.44 |
Current smoking | 16 (16.5) |
Alcohol consumption | 11 (11.3) |
CEA (ng/mL) | |
>3.4 | 37 (38.1) |
≤3.4 | 60 (61.9) |
CA125 (U/mL) | |
>35 | 3 (3.1) |
≤35 | 94 (96.9) |
CA199 (U/mL) | |
>27 | 22 (22.7) |
≤27 | 75 (77.3) |
Maximum diameter (cm) | 4.49±1.72 |
Tumor location | |
Low/middle | 69 (71.1) |
High | 28 (28.9) |
EMVI | |
(−) | 26 (26.8) |
(+) | 71 (73.2) |
CRM | |
(−) | 44 (45.4) |
(+) | 53 (54.6) |
ADCmean (×10−3 mm2/s) | 0.68±0.25 |
ADCmin (×10−3 mm2/s) | 0.62±0.25 |
ADCmax (×10−3 mm2/s) | 0.81±0.24 |
Pathologic T stage | |
T1–2 | 39 (40.2) |
T3–4 | 58 (59.8) |
Histological grade | |
HD/MD | 65 (67.0) |
LD | 32 (33.0) |
Lymphovascular invasion | |
(−) | 37 (38.1) |
(+) | 60 (61.9) |
Perineural invasion | |
(−) | 36 (37.1) |
(+) | 61 (62.9) |
Lymph node metastasis | |
(−) | 64 (66.0) |
(+) | 33 (34.0) |
Data are presented as mean ± standard deviation or n (%). ADCmax, maximum apparent diffusion coefficient value; ADCmean, mean apparent diffusion coefficient value; ADCmin, minimum apparent diffusion coefficient value; BMI, body mass index; CA125, carbohydrate antigen 125; CA199, carbohydrate antigen 199; CEA, carcinoembryonic antigen; CRM, circumferential resection margin; EMVI, extramural vascular invasion; HD, highly differentiated; LD, low differentiated; MD, moderately differentiated.
Comparison of ADC values for clinicopathologic features
The ADC values, including ADCmean, ADCmin, and ADCmax, measured by the two radiologists were in good agreement (all intra-class correlation coefficient values >0.80). We found that ADCmean (0.63±0.22 vs. 0.83±0.26, P<0.001), ADCmin (0.56±0.22 vs. 0.76±0.27, P<0.001), and ADCmax (0.76±0.22 vs. 0.94±0.26, P=0.001) were significantly lower in patients with EMVI than in patients without EMVI. Patients with CRM had significantly lower ADCmean (0.60±0.21 vs. 0.78±0.25, P<0.001), ADCmin (0.52±0.21 vs. 0.73±0.25, P<0.001), and ADCmax (0.74±0.22 vs. 0.89±0.25, P=0.004) than those without CRM. Furthermore, patients with pathologic T1–2 staging exhibited higher ADCmean (0.79±0.26 vs. 0.61±0.22, P=0.001), ADCmin (0.71±0.26 vs. 0.55±0.22, P=0.002), and ADCmax (0.89±0.26 vs. 0.75±0.22, P=0.004) compared to patients with T3–4 staging. Higher ADCmean (0.74±0.21 vs. 0.57±0.29, P=0.005), ADCmin (0.67±0.20 vs. 0.50±0.30, P=0.005), and ADCmax (0.85±0.22 vs. 0.72±0.27, P=0.01) were also observed in patients with high/moderate differentiation compared those with low differentiation. Furthermore, rectal cancer with either lymphovascular invasion, perineural invasion, or lymph node metastasis showed significantly lower ADC values (ADCmean, ADCmin, and ADCmax) compared to patients without lymphovascular invasion, perineural invasion, or lymph node metastasis (P<0.05; Table 2, Figure 3). However, ADC values were not significantly different in terms of age, sex, BMI, current smoking, alcohol consumption, CEA, CA125, CA199, maximum tumor diameter, and location (P>0.05).
Table 2
Parameters | ADCmean (×10−3 mm2/s) | ADCmin (×10−3 mm2/s) | ADCmax (×10−3 mm2/s) | |||||
---|---|---|---|---|---|---|---|---|
Mean ± SD | P value | Mean ± SD | P value | Mean ± SD | P value | |||
Age (years) | 0.14 | 0.24 | 0.14 | |||||
≥55 | 0.70±0.25 | 0.63±0.25 | 0.83±0.25 | |||||
<55 | 0.62±0.23 | 0.56±0.24 | 0.74±0.22 | |||||
Sex | 0.38 | 0.44 | 0.38 | |||||
Male | 0.70±0.25 | 0.63±0.25 | 0.83±0.24 | |||||
Female | 0.65±0.25 | 0.59±0.25 | 0.78±0.25 | |||||
BMI (kg/m2) | 0.82 | 0.97 | 0.65 | |||||
≥24 | 0.69±0.25 | 0.62±0.27 | 0.82±0.24 | |||||
<24 | 0.68±0.25 | 0.62±0.24 | 0.80±0.25 | |||||
Current smoking | 0.52 | 0.29 | 0.82 | |||||
Yes | 0.72±0.23 | 0.68±0.23 | 0.82±0.24 | |||||
No | 0.68±0.25 | 0.60±0.25 | 0.81±0.25 | |||||
Alcohol consumption | 0.80 | 0.74 | 0.79 | |||||
Yes | 0.69±0.15 | 0.63±0.13 | 0.79±0.16 | |||||
No | 0.68±0.26 | 0.61±0.26 | 0.81±0.25 | |||||
CEA (ng/mL) | 0.28 | 0.11 | 0.94 | |||||
>3.4 | 0.65±0.25 | 0.57±0.26 | 0.81±0.25 | |||||
≤3.4 | 0.70±0.24 | 0.65±0.24 | 0.81±0.25 | |||||
CA125 (U/mL) | 0.53 | 0.72 | 0.40 | |||||
>35 | 0.60±0.23 | 0.57±0.22 | 0.69±0.19 | |||||
≤35 | 0.69±0.25 | 0.62±0.25 | 0.81±0.25 | |||||
CA199 (U/mL) | 0.77 | 0.69 | 0.82 | |||||
>27 | 0.67±0.28 | 0.60±0.29 | 0.82±0.26 | |||||
≤27 | 0.69±0.24 | 0.62±0.24 | 0.81±0.24 | |||||
Maximum diameter (cm) | 0.76 | 0.61 | 0.84 | |||||
≥4.5 | 0.69±0.26 | 0.63±0.26 | 0.81±0.25 | |||||
<4.5 | 0.68±0.24 | 0.60±0.24 | 0.80±0.24 | |||||
Tumor location | 0.09 | 0.07 | 0.15 | |||||
High | 0.62±0.23 | 0.54±0.25 | 0.75±0.22 | |||||
Low/middle | 0.71±0.25 | 0.65±0.25 | 0.83±0.25 | |||||
EMVI | <0.001 | <0.001 | 0.001 | |||||
(−) | 0.83±0.26 | 0.76±0.27 | 0.94±0.26 | |||||
(+) | 0.63±0.22 | 0.56±0.22 | 0.76±0.22 | |||||
CRM | <0.001 | <0.001 | 0.004 | |||||
(−) | 0.78±0.25 | 0.73±0.25 | 0.89±0.25 | |||||
(+) | 0.60±0.21 | 0.52±0.21 | 0.74±0.22 | |||||
Pathologic T stage | 0.001 | 0.002 | 0.004 | |||||
T1–2 | 0.79±0.26 | 0.71±0.26 | 0.89±0.26 | |||||
T3–4 | 0.61±0.22 | 0.55±0.22 | 0.75±0.22 | |||||
Histological grade | 0.005 | 0.005 | 0.01 | |||||
LD | 0.57±0.29 | 0.50±0.30 | 0.72±0.27 | |||||
HD/MD | 0.74±0.21 | 0.67±0.20 | 0.85±0.22 | |||||
Lymphovascular invasion | <0.001 | <0.001 | <0.001 | |||||
(−) | 0.82±0.27 | 0.75±0.27 | 0.94±0.27 | |||||
(+) | 0.60±0.19 | 0.53±0.20 | 0.73±0.19 | |||||
Perineural invasion | <0.001 | <0.001 | 0.006 | |||||
(−) | 0.82±0.22 | 0.75±0.21 | 0.90±0.25 | |||||
(+) | 0.60±0.23 | 0.54±0.24 | 0.76±0.23 | |||||
Lymph node metastasis | 0.001 | 0.003 | 0.01 | |||||
(−) | 0.74±0.24 | 0.67±0.24 | 0.85±0.24 | |||||
(+) | 0.57±0.23 | 0.51±0.23 | 0.72±0.24 |
ADC, apparent diffusion coefficient; ADCmax, maximum apparent diffusion coefficient value; ADCmean, mean apparent diffusion coefficient value; ADCmin, minimum apparent diffusion coefficient value; BMI, body mass index; CA125, carbohydrate antigen 125; CA199, carbohydrate antigen 199; CEA, carcinoembryonic antigen; CRM, circumferential resection margin; EMVI, extramural vascular invasion; HD, highly differentiated; LD, low differentiated; MD, moderately differentiated; SD, standard deviation.

Correlation of ADC values with clinicopathologic features
Correlation analysis showed that not only EMVI was negatively correlated with ADCmean (r=−0.334, P=0.001), ADCmin (r=−0.340, P=0.001), and ADCmax (r=−0.302, P=0.003), but also CRM was negatively correlated with ADCmean (r=−0.362, P<0.001), ADCmin (r=−0.414, P<0.001) and ADCmax (r=−0.276, P=0.006). Additionally, pathologic T-stage and histologic grading were negatively correlated with ADCmean (r=−0.324, −0.353; P=0.001, <0.001), ADCmin (r=−0.313, −0.352; P=0.002, <0.001), and ADCmax (r=−0.276, −0.289; P=0.006, 0.004), indicating that the higher the stage and lower the degree of differentiation, the lower the ADC value. The lymphovascular invasion, perineural invasion, and lymph node metastasis also revealed negative associations with ADCmean (r=−0.405, −0.428, −0.347; all P<0.05), ADCmin (r=−0.384, −0.407, −0.316; all P<0.05), and ADCmax (r=−0.421, −0.265, −0.268; all P<0.05). These findings indicate that the ADC values are negatively correlated with the invasiveness of rectal cancer (Table 3, Figure 4). However, ADC values did not correlate with patient age, sex, BMI, current smoking, alcohol consumption, CEA, CA125, CA199, maximum tumor diameter, or location (P>0.05).
Table 3
Parameters | ADCmean (×10−3 mm2/s) | ADCmin (×10−3 mm2/s) | ADCmax (×10−3 mm2/s) | |||||
---|---|---|---|---|---|---|---|---|
r value | P value | r value | P value | r value | P value | |||
Age (years) | 0.143 | 0.16 | 0.113 | 0.27 | 0.147 | 0.15 | ||
Sex | 0.102 | 0.32 | 0.086 | 0.40 | 0.111 | 0.28 | ||
BMI (kg/m2) | 0.032 | 0.75 | −0.003 | 0.97 | 0.073 | 0.48 | ||
Current smoking | 0.060 | 0.56 | 0.100 | 0.33 | 0.021 | 0.84 | ||
Alcohol consumption | 0.042 | 0.68 | 0.045 | 0.66 | −0.003 | 0.97 | ||
CEA | −0.111 | 0.28 | −0.171 | 0.10 | −0.009 | 0.93 | ||
CA125 | −0.062 | 0.55 | −0.029 | 0.78 | −0.089 | 0.38 | ||
CA199 | −0.041 | 0.69 | −0.049 | 0.63 | 0.007 | 0.94 | ||
Maximum diameter (cm) | 0.029 | 0.78 | 0.047 | 0.65 | 0.019 | 0.86 | ||
Tumor location | −0.171 | 0.10 | −0.185 | 0.07 | −0.141 | 0.17 | ||
EMVI | −0.334** | 0.001 | −0.340** | 0.001 | −0.302** | 0.003 | ||
CRM | −0.362** | <0.001 | −0.414** | <0.001 | −0.276** | 0.006 | ||
Pathologic T stage | −0.324** | 0.001 | −0.313** | 0.002 | −0.276** | 0.006 | ||
Histological grade | −0.353** | <0.001 | −0.352** | <0.001 | −0.289** | 0.004 | ||
Lymphovascular invasion | −0.405** | <0.001 | −0.384** | <0.001 | −0.421** | <0.001 | ||
Perineural invasion | −0.428** | <0.001 | −0.407** | <0.001 | −0.265** | 0.009 | ||
Lymph node metastasis | −0.347** | 0.001 | −0.316** | 0.002 | −0.268** | 0.008 |
**, at the 0.01 level (two-tailed), the correlation was significant. ADC, apparent diffusion coefficient; ADCmax, maximum apparent diffusion coefficient value; ADCmean, mean apparent diffusion coefficient value; ADCmin, minimum apparent diffusion coefficient value; BMI, body mass index; CA125, carbohydrate antigen 125; CA199, carbohydrate antigen 199; CEA, carcinoembryonic antigen; CRM, circumferential resection margin; EMVI, extramural vascular invasion.

Diagnostic performance of ADC values for clinicopathologic features
The receiver operating characteristic analysis showed that ADCmean had AUC values of 0.717, 0.710, 0.691, 0.717, 0.741, 0.755, and 0.711 for predicting EMVI, CRM, pathological T stage, histological grade, lymphovascular invasion, perineural invasion, and lymph node metastasis, respectively. The diagnostic performance of ADCmin in assessing EMVI, CRM, pathologic T stage, histologic grading, lymphovascular invasion, perineural invasion, and lymph node metastasis was 0.722, 0.740, 0.684, 0.716, 0.728, 0.743, and 0.692, respectively. Furthermore, the AUC values of ADCmax for predicting EMVI, CRM, pathological T stage, histological grade, lymphovascular invasion, perineural invasion, and lymph node metastasis were 0.697, 0.660, 0.662, 0.678, 0.750, 0.658, and 0.663, respectively (Table 4, Figure 5).
Table 4
Parameters | ADCmean | ADCmin | ADCmax | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
AUC | Sen (%) | Spe (%) | AUC | Sen (%) | Spe (%) | AUC | Sen (%) | Spe (%) | |||
EMVI | 0.717 | 52.11 | 88.46 | 0.722 | 54.93 | 88.46 | 0.697 | 52.11 | 80.77 | ||
CRM | 0.710 | 83.02 | 56.82 | 0.740 | 83.02 | 56.82 | 0.660 | 88.68 | 38.64 | ||
Pathologic T stage | 0.691 | 56.90 | 82.05 | 0.684 | 63.79 | 74.36 | 0.662 | 62.07 | 69.23 | ||
Histological grade | 0.717 | 59.38 | 89.23 | 0.716 | 65.62 | 90.77 | 0.678 | 59.38 | 78.46 | ||
Lymphovascular invasion | 0.741 | 96.67 | 54.05 | 0.728 | 95.00 | 54.05 | 0.750 | 81.67 | 67.57 | ||
Perineural invasion | 0.755 | 59.02 | 91.67 | 0.743 | 65.57 | 80.56 | 0.658 | 55.74 | 77.78 | ||
Lymph node metastasis | 0.711 | 48.48 | 90.62 | 0.692 | 60.61 | 79.69 | 0.663 | 60.61 | 70.31 |
ADC, apparent diffusion coefficient; ADCmax, maximum apparent diffusion coefficient value; ADCmean, mean apparent diffusion coefficient value; ADCmin, minimum apparent diffusion coefficient value; AUC, area under the curve; CRM, circumferential resection margin; EMVI, extramural vascular invasion; Sen, sensitivity; Spe, specificity.

Discussion
As a clinical quantitative parameter, the ADC value has attracted increasing research attention and has been widely used to assess the biological characteristics of tumors, such as brain tumors, cervical cancer, esophageal cancer, and prostate cancer (21-24). In the present study, we explored the correlations between different clinicopathological features and ADCmean, ADCmin, and ADCmax in patients with rectal cancer. Our primary findings showed that all measured ADC values were negatively correlated not only with EMVI and CRM of rectal cancer but also with the pathological T-stage of the tumor, histological grading, lymphovascular invasion, perineural invasion, and lymph node metastasis. However, ADCmean, ADCmin, and ADCmax were independent of the patient’s age, sex, and BMI. Therefore, our study revealed that ADC values can indicate the invasiveness of rectal cancer.
EMVI and CRM are significant prognostic factors affecting the survival of patients with rectal cancer (25,26). MRI can assess the presence of EMVI and CRM in rectal cancer with high sensitivity and specificity (27,28). A meta-analysis showed that MRI-based radiomics modeling can be used to preoperatively determine EMVI in patients with rectal cancer, with good diagnostic performance (29). Cai et al. (30) found that an automated deep learning process constructed based on DWI and T2WI images could classify EMVI states. Additionally, Ju et al. (31) found that a joint model constructed using radiomics features extracted from T2WI images combined with clinical features could be used to clinically determine CRM in patients with low-to-moderate rectal cancer. These studies demonstrated the value of MRI in the diagnosis of EMVI and CRM. In the present study, we observed that ADCmean, ADCmin, and ADCmax were negatively associated with EMVI and CRM and that ADC values could be used to diagnose EMVI and CRM.
Preoperative staging is important for the personalized treatment of rectal cancer (32). Moreover, preoperative determination of the histological grade of rectal tumors can be used to assess the response to therapy (33). Recent studies have affirmed the value of rectal MRI in TNM staging and histological grading of rectal cancer (18,34). Liu et al. (35) reported that ADC values, including mean and minimum ADC values, were related to the T classification and histologic grading of rectal cancer. A retrospective study also showed that ADC values are associated with rectal cancer staging and could be a useful tool for preoperative tumor staging (36). Furthermore, Zhou et al. (34) demonstrated that the ADC value of the rectal cancer pathologic T1–2 stage was significantly higher than that of the T3–4 stage, whereas the ADC value of high-grade rectal cancer was significantly lower than that of low-grade cancer. Consistent with the above studies (34-36), our study demonstrated that ADC values are helpful in the preoperative evaluation of rectal cancer staging and grading.
Lymphovascular and perineural invasion and lymph node metastasis are markers of poor prognosis in rectal cancer (37,38). Cho et al. (39) found that ADC values can be used to determine whether lymph nodes in rectal cancer are metastatic. Liu et al. (35) identified a negative relationship between mean and minimum ADC values and perineural invasion. A retrospective study found that a combined model constructed on the basis of intravoxel incoherent motion-DWI histogram features may be useful in assessing the status of rectal cancer perineural invasion (40). In the present study, we established that patients with rectal cancer with lymphovascular and perineural infiltration and lymph node metastases usually had lower ADC values (ADCmean, ADCmin, and ADCmax). This suggests that ADC values are associated with the aggressiveness of rectal cancers.
There are some limitations in this study. First, as the data in this study were collected retrospectively, there may be unavoidable selection and recall bias. We plan to design prospective studies to further explore this topic in the future. Second, the sample size was relatively small; we will subsequently include more data and additional centers for further validation in the future. Finally, we only explored the relationship between ADC values and clinicopathological features in rectal cancer. Gene mutation data are also important for prognostic assessment of patients with rectal cancer, and thus the association between ADC values and gene mutations in rectal cancer warrants further investigation.
Conclusions
In conclusion, ADCmean, ADCmin, and ADCmax were negatively correlated with rectal cancer EMVI, CRM, pathological T stage, histological grading, lymphovascular invasion, perineural invasion, and lymph node metastasis. This suggests that ADC values can be used for preoperative noninvasive assessment of the clinicopathological features of rectal cancer to better guide clinical risk stratification and personalized treatment.
Acknowledgments
None.
Footnote
Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-831/rc
Data Sharing Statement: Available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-831/dss
Peer Review File: Available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-831/prf
Funding: This research was supported by
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jgo.amegroups.com/article/view/10.21037/jgo-24-831/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. This retrospective study was approved by the Medical Ethics Review Board of Lanzhou University Second Hospital (No. 2024A-927), and the need for informed consent was waived owing to the retrospective nature of the study.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
References
- Baidoun F, Elshiwy K, Elkeraie Y, et al. Colorectal Cancer Epidemiology: Recent Trends and Impact on Outcomes. Curr Drug Targets 2021;22:998-1009. [Crossref] [PubMed]
- Dekker E, Tanis PJ, Vleugels JLA, et al. Colorectal cancer. Lancet 2019;394:1467-80. [Crossref] [PubMed]
- Global, regional, and national burden of colorectal cancer and its risk factors, 1990-2019: a systematic analysis for the Global Burden of Disease Study 2019. Lancet Gastroenterol Hepatol 2022;7:627-47. [Crossref] [PubMed]
- Hosseini SV, Rezaianzadeh A, Rahimikazerooni S, et al. Prognostic Factors of Rectal Cancer in Southern Iran. J Gastrointest Cancer 2022;53:113-21. [Crossref] [PubMed]
- Tripathi P, Guo W, Rao S, et al. Additional value of MRI-detected EMVI scoring system in rectal cancer: applicability in predicting synchronous metastasis. Tumori 2020;106:286-94. [Crossref] [PubMed]
- Tripathi P, Rao SX, Zeng MS. Clinical value of MRI-detected extramural venous invasion in rectal cancer. J Dig Dis 2017;18:2-12. [Crossref] [PubMed]
- Mc Entee PD, Shokuhi P, Rogers AC, et al. Extramural venous invasion (EMVI) in colorectal cancer is associated with increased cancer recurrence and cancer-related death. Eur J Surg Oncol 2022;48:1638-42. [Crossref] [PubMed]
- Li F, Chen JH, Liu Y, et al. Stage cT3 low rectal cancer: analysis of prognostic factors. J Gastrointest Oncol 2022;13:672-82. [Crossref] [PubMed]
- Kim S, Huh JW, Lee WY, et al. Prognostic Impact of Lymphatic Invasion, Venous Invasion, Perineural Invasion, and Tumor Budding in Rectal Cancer Treated With Neoadjuvant Chemoradiotherapy Followed by Total Mesorectal Excision. Dis Colon Rectum 2023;66:905-13. [Crossref] [PubMed]
- Wang H, Hong R, Niu G, et al. Clinical study on risk factors related to postoperative recurrence or metastasis of rectal cancer: a retrospective cohort study. J Gastrointest Oncol 2022;13:2973-88. [Crossref] [PubMed]
- Lee SY, Kim CH, Kim YJ, et al. Prognostic significance of the distribution of lymph node metastasis in rectal cancer after neoadjuvant chemoradiation. J Surg Oncol 2018;117:514-22. [Crossref] [PubMed]
- Bates DDB, Homsi ME, Chang KJ, et al. MRI for Rectal Cancer: Staging, mrCRM, EMVI, Lymph Node Staging and Post-Treatment Response. Clin Colorectal Cancer 2022;21:10-8. [Crossref] [PubMed]
- Fernandes MC, Gollub MJ, Brown G. The importance of MRI for rectal cancer evaluation. Surg Oncol 2022;43:101739. [Crossref] [PubMed]
- Lord AC, D'Souza N, Shaw A, et al. MRI-Diagnosed Tumor Deposits and EMVI Status Have Superior Prognostic Accuracy to Current Clinical TNM Staging in Rectal Cancer. Ann Surg 2022;276:334-44. [Crossref] [PubMed]
- Gullo RL, Partridge SC, Shin HJ, et al. Update on DWI for Breast Cancer Diagnosis and Treatment Monitoring. AJR Am J Roentgenol 2024;222:e2329933. [Crossref] [PubMed]
- Xianwang L, Lei H, Hong L, et al. Apparent Diffusion Coefficient to Evaluate Adult Intracranial Ependymomas: Relationship to Ki-67 Proliferation Index. J Neuroimaging 2021;31:132-6. [Crossref] [PubMed]
- Jing M, Cao Y, Zhang P, et al. The Benefit of Apparent Diffusion Coefficient in Evaluating the Invasiveness of Hepatocellular Carcinoma. Front Oncol 2021;11:719480. [Crossref] [PubMed]
- Horvat N, Carlos Tavares Rocha C, Clemente Oliveira B, et al. MRI of Rectal Cancer: Tumor Staging, Imaging Techniques, and Management. Radiographics 2019;39:367-87. [Crossref] [PubMed]
- Smith NJ, Barbachano Y, Norman AR, et al. Prognostic significance of magnetic resonance imaging-detected extramural vascular invasion in rectal cancer. Br J Surg 2008;95:229-36. [Crossref] [PubMed]
- Kim KH, Park MJ, Lim JS, et al. Circumferential resection margin positivity after preoperative chemoradiotherapy based on magnetic resonance imaging for locally advanced rectal cancer: implication of boost radiotherapy to the involved mesorectal fascia. Jpn J Clin Oncol 2016;46:316-22. [Crossref] [PubMed]
- Han T, Liu X, Jing M, et al. ADC histogram parameters differentiating atypical from transitional meningiomas: correlation with Ki-67 proliferation index. Acta Radiol 2023;64:3032-41. [Crossref] [PubMed]
- Lai B, Yi Y, Yang X, et al. Dynamic contrast-enhanced and diffusion-weighted MRI of cervical carcinoma: Correlations with Ki-67 proliferation status. Magn Reson Imaging 2024;112:136-43. [Crossref] [PubMed]
- Li Y, Su X, Shang Y, et al. Comparative evaluation of imaging methods for prognosis assessment in esophageal squamous cell carcinoma: focus on diffusion-weighted magnetic resonance imaging, computed tomography and esophagography. Front Oncol 2024;14:1397266. [Crossref] [PubMed]
- Imai Y, Urabe F, Sadakane I, et al. Optimizing prostate cancer detection in transition zone: an analysis of apparent diffusion coefficient values in prostate magnetic resonance imaging evaluation with Prostate Imaging Reporting and Data System (PI-RADS) assessment. Transl Androl Urol 2024;13:2027-35. [Crossref] [PubMed]
- Sakanaka T, Iwamoto H, Matsuda K, et al. Double Negativity of MRI-Detected and Pathologically-Diagnosed Extramural Venous Invasion is a Favorable Prognostic Factor for Rectal Cancer. Ann Surg Oncol 2024;31:2425-38. [Crossref] [PubMed]
- Sadien ID, Ari K, Fernandes M, et al. Circumferential resection margin positivity due to direct or indirect tumour involvement in rectal cancer - a call for better stratification. ANZ J Surg 2024;94:931-7. [Crossref] [PubMed]
- Guimarães RB, Pacheco EO, Ueda SN, et al. Evaluation of colon cancer prognostic factors by CT and MRI: an up-to-date review. Abdom Radiol (NY) 2024;49:4003-15. [Crossref] [PubMed]
- Yang SY, Bae H, Seo N, et al. Pretreatment MRI-detected extramural venous invasion as a prognostic and predictive biomarker for neoadjuvant chemoradiotherapy in non-metastatic rectal cancer: a propensity score matched analysis. Eur Radiol 2024;34:3686-98. [Crossref] [PubMed]
- Liang Y, Wei Y, Xu F, et al. MRI-based radiomic models for the preoperative prediction of extramural venous invasion in rectal cancer: A systematic review and meta-analysis. Clin Imaging 2024;110:110146. [Crossref] [PubMed]
- Cai L, Lambregts DMJ, Beets GL, et al. An automated deep learning pipeline for EMVI classification and response prediction of rectal cancer using baseline MRI: a multi-centre study. NPJ Precis Oncol 2024;8:17. [Crossref] [PubMed]
- Ju Y, Zheng L, Qi W, et al. Development of a joint prediction model based on both the radiomics and clinical factors for preoperative prediction of circumferential resection margin in middle-low rectal cancer using T2WI images. Med Phys 2024;51:2563-77. [Crossref] [PubMed]
- Cianci R, Cristel G, Agostini A, et al. MRI for Rectal Cancer Primary Staging and Restaging After Neoadjuvant Chemoradiation Therapy: How to Do It During Daily Clinical Practice. Eur J Radiol 2020;131:109238. [Crossref] [PubMed]
- Reggiani Bonetti L, Lionti S, Domati F, et al. Histological grading based on poorly differentiated clusters is predictive of tumour response and clinical outcome in rectal carcinoma treated with neoadjuvant chemoradiotherapy. Histopathology 2017;71:393-405. [Crossref] [PubMed]
- Zhou B, Zhou Y, Tang Y, et al. Intravoxel incoherent motion MRI for rectal cancer: correlation of diffusion and perfusion characteristics with clinical-pathologic factors. Acta Radiol 2023;64:898-906. [Crossref] [PubMed]
- Liu J, Li Q, Tang L, et al. Correlations of Mean and Mimimum Apparent Diffusion Coefficient Values With the Clinicopathological Features in Rectal Cancer. Acad Radiol 2021;28:S105-11. [Crossref] [PubMed]
- Ao W, Bao X, Mao G, et al. Value of Apparent Diffusion Coefficient for Assessing Preoperative T Staging of Low Rectal Cancer and Whether This Is Correlated With Ki-67 Expression. Can Assoc Radiol J 2020;71:5-11. [Crossref] [PubMed]
- Kim YI, Kim CW, Kim JH, et al. Clinical Implication of Perineural and Lymphovascular Invasion in Rectal Cancer Patients Who Underwent Surgery After Preoperative Chemoradiotherapy. Dis Colon Rectum 2022;65:1325-34. [Crossref] [PubMed]
- Ozturk SK, Martinez CG, Mens D, et al. Lymph node regression after neoadjuvant chemoradiotherapy in rectal cancer. Histopathology 2024;84:935-46. [Crossref] [PubMed]
- Cho EY, Kim SH, Yoon JH, et al. Apparent diffusion coefficient for discriminating metastatic from non-metastatic lymph nodes in primary rectal cancer. Eur J Radiol 2013;82:e662-8. [Crossref] [PubMed]
- He R, Song G, Fu J, et al. Histogram analysis based on intravoxel incoherent motion diffusion-weighted imaging for determining the perineural invasion status of rectal cancer. Quant Imaging Med Surg 2024;14:5358-72. [Crossref] [PubMed]
